Cavitation Demonstration
Product Code : LSK-HAP-10583

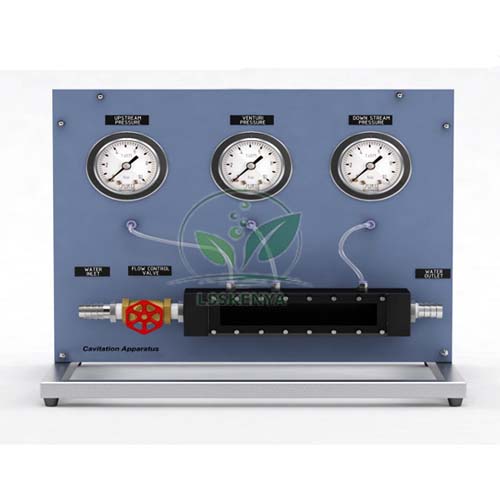

Cavitation Demonstration (SKU LSK-HAP-10583) is a small-scale apparatus that makes cavitation visible: water accelerates through a clear acrylic venturi until throat pressure drops low enough for vapour bubbles to form and collapse. It runs on a hydraulics bench and is used in fluid mechanics and fluid machines courses at engineering colleges, polytechnics and TVET institutes. Science Lab Supplies makes the unit in its own factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and as the manufacturer prices orders for colleges, contractors and distributors itself.
Specifications
All features of the cavitation unit are broken out in the table. In short, a clear acrylic venturi section carries three Bourdon gauges, 63 mm dials upstream and downstream and a 100 mm vacuum gauge at the throat, with flow control valves on both sides and a quick release bench fitting.
| Specification | Value |
|---|---|
| SKU | LSK-HAP-10583 |
| Scale | Small-scale apparatus for use with a hydraulics bench |
| Test section shape | Circular venturi |
| Test section material | Clear acrylic |
| Static pressure gauges | 3 Bourdon gauges: before the contraction, in the throat, after the expansion |
| Upstream gauge | 63 mm dial, 0 to 1 bar |
| Throat vacuum gauge | 100 mm dial, −1 to 0 bar |
| Downstream gauge | 63 mm dial, 0 to 1 bar |
| Flow control | Valves upstream and downstream of the test section |
| Bench connection | Quick release fitting |
| Stand-alone use | Visualisation only, from cold mains water at 0.4 litre/s and 2 bar gauge |
| Software | Educational software, optional |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Cavitation Demonstration
Students raise the flow until the throat vacuum gauge nears its limit and cavitation appears, then relate the onset to the pressures on the three gauges. The demonstration explains why pumps, valves and propellers suffer cavitation damage, a topic in B.Tech fluid machines and diploma hydraulics syllabuses.
- Observing the onset and collapse of cavitation in a venturi throat.
- Relating throat pressure to flow rate and the vapour pressure of water, after the pressure distribution of a normal venturi has been mapped on the Bernoulli’s Theorem apparatus.
- Showing how downstream valve setting changes the extent of the cavitating region.
- Supporting pump suction and NPSH discussions, with the self-contained Cavitation in a Venturi unit as a larger alternative.
Standard Scope of Supply
The unit comes with the acrylic venturi test section, the two 63 mm Bourdon gauges and the 100 mm throat vacuum gauge, upstream and downstream flow control valves, and the quick release bench fitting. Educational software is available as an option, and the hydraulics bench is a separate item.
Packing, MOQ and Lead Time
Request a price for one demonstration unit or for a set to share across lab groups. Each quotation carries the packing, delivery time and price for that number of units, and the optional software or a hydraulics bench can be itemised on it too.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Kenya, Ghana, Ethiopia, Tanzania, Uganda and the UAE. Ask about the bench connection or software on the contact page, collect the unit with a bench in the enquiry cart, or follow the lab tender page for institutional bids.
Frequently Asked Questions
Does the apparatus need a hydraulics bench?
It is designed to connect to a hydraulics bench by a quick release fitting. For visualisation only, it can also run from a cold mains supply giving 0.4 litre/s at 2 bar gauge.
What pressures are measured?
Static pressure upstream and downstream on 63 mm gauges reading 0 to 1 bar, and throat pressure on a 100 mm vacuum gauge reading −1 to 0 bar.
Is this a Science Lab Supplies product or a bought-in item?
It is made by Science Lab Supplies at its own works in Saha, Ambala, India, so the manufacturer answers your questions and prepares the quotation itself.
Is software included?
Educational software is offered as an option rather than as standard. Mention it when you enquire and it will be listed separately on the quotation, next to the apparatus and any hydraulics bench you add.
