Industrial Pneumatics Training Equipment
Product Code : LSK-HAP-10573

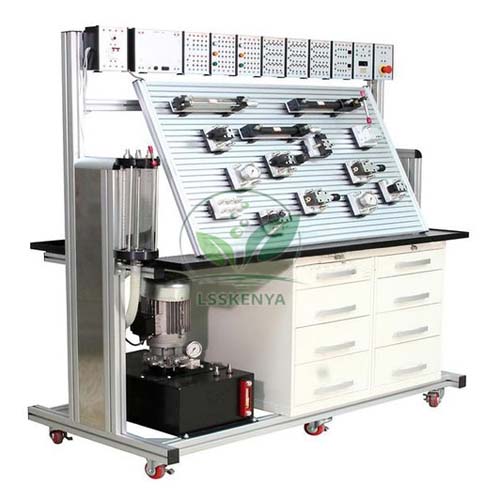

Industrial Pneumatics Training Equipment (SKU LSK-HAP-10573) is a mobile trolley workstation on which trainees build, test and fault-find compressed-air circuits using plug-in valves, cylinders and logic elements. It suits fluid power modules in TVET colleges, polytechnics, engineering departments and industrial training centres. Science Lab Supplies manufactures the trolley at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, quoting colleges, training institutes, contractors and distributors directly.
Specifications
The workstation carries two powder-coated steel plugboards of about 1100 × 700 mm, drilled for components and fitted with rubber retaining grommets, with 2 mm shrouded sockets for electrical distribution. Two lockable five-drawer steel cabinets sit underneath, and four rubber-tyred heavy-duty castors make the trolley mobile.
| Parameter | Value |
|---|---|
| SKU | LSK-HAP-10573 |
| Overall size (approx.) | 1210 mm L × 750 mm W × 1450 mm H |
| Plugboards | 2, approx. 1100 × 700 mm, powder-coated 16 SWG steel, rubber grommets, 2 mm shrouded sockets |
| Storage | 2 lockable steel cabinets, 5 drawers each (approx. 1 × 66 mm, 2 × 85 mm, 1 × 130 mm, 1 × 200 mm deep) |
| Castors | 4 heavy-duty rubber-tyred, 2 swivel and lockable |
| Component mounting | 4-pin plug-in baseplates; 4 mm o.d. push-fit air connections; 2 mm shrouded electrical plugs |
| Exhaust ports | Threaded ports fitted with silencers |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Industrial Pneumatics Trainer
The trainer lets students move from single-cylinder control to sequential and logic circuits on one board, using real directional valves, timers and flow controls. It is practical TVET workshop equipment for fluid power, mechatronics and maintenance courses.
- Direct and indirect control of single- and double-acting cylinders with push-button, toggle and pilot valves.
- AND/OR logic using two-pressure and shuttle valves; speed control with throttle/check valves and a quick exhaust valve.
- Limit-switch sequencing with roller lever valves and time delays with the adjustable timer valve.
Standard Scope of Supply
Valves: one 5/2 pilot/spring, three 5/2 pilot/pilot, one 5/3 closed-centre, 5/2 and 3/2 toggle lever, four 3/2 push-button, four 3/2 roller lever, a 3/2 timer, quick exhaust, four shuttle, two two-pressure and two throttle/check valves.
Also: air service unit with gauge, 6-way manifold, single-acting cylinder (16 mm bore, 50 mm stroke), two double-acting cylinders (16 mm, 100 mm stroke, magnetic piston), visual indicator, stainless steel reservoir, pressure gauge, 15 m of 4 mm and 5 m of 6 mm tubing, 10 push-fit tees and 10 plugs.
Packing, MOQ and Lead Time
Quotations can cover one trolley or several workstations for a full pneumatics room. Each one states packing, delivery time and price for that quantity, and hydraulics trainers from the same range can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. To start, write to us through the contact page, add items to the enquiry cart, or read about tender supply on the lab tender page.
Frequently Asked Questions
How many trainees can work at one trolley?
The trolley has two separate plugboards, so two groups can build circuits at the same time from the shared component kit.
Are the cylinders suitable for sensor exercises?
Yes. Both double-acting cylinders have magnetic pistons for contactless sensing, and the 2 mm shrouded electrical sockets on the boards allow electro-pneumatic wiring alongside the air circuits.
Who manufactures this pneumatics trainer?
Science Lab Supplies builds the trolley, boards and cabinets itself in Saha, Ambala, India. Because it is the maker, you deal with the factory directly on configuration, quantity and delivery.
