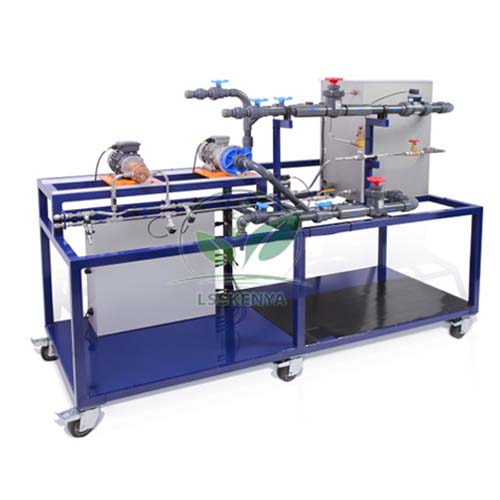

Multi Pump Test Rig
Product Code : LSK-HAP-10581
Multi Pump Test Rig (SKU LSK-HAP-10581) is a mobile, self-contained rig with the services and instrumentation to plot characteristic curves of up to eight pump types at different speeds. Mechanical and chemical engineering labs, polytechnics and TVET institutes use it for fluid machinery practicals. Science Lab Supplies manufactures the test rig in Ambala, India, at its Plot 448 unit in the HSIIDC Industrial Area, Saha, and quotes it directly to institutions, tender contractors and distributors.
Specifications
The rig has five pump positions, four of which can run at once, with a centrifugal pump and a gear pump fitted as standard. Flow, pressure head, suction head and motor torque are measured electronically, and a control valve upstream of each pump, except the axial pump, varies suction conditions.
| Parameter | Value |
|---|---|
| SKU | LSK-HAP-10581 |
| Pump positions | 5 (4 active at the same time) |
| Standard pumps | Centrifugal pump, gear pump |
| Optional pumps | Axial, flexible impeller, turbine, diaphragm, plunger, second centrifugal |
| Measurements | Flow, pressure head, suction head, motor torque (electronic) |
| Speed setting | From a PC (PC not supplied) |
| Software | Data logging and educational software with mimic diagram per pump |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Multi Pump Test Rig
The rig lets students compare how rotodynamic and positive displacement pumps respond to head, flow and speed on one installation, which is the heart of pump performance practicals in B.Tech fluid machines labs and useful TVET workshop equipment for pump maintenance training.
- Rotodynamic pumps: flow, power absorbed and efficiency against pressure head and flow.
- Positive displacement pumps: volumetric efficiency against pressure head.
- Effect of suction loss on performance using the upstream control valves.
- Series and parallel operation with the optional second centrifugal pump.
For the pump(s) on test, the software shows a mimic diagram with the key measured and calculated values, so students can watch curves build as they change conditions.
Standard Scope of Supply
The standard rig is supplied with the centrifugal and gear pumps, electronic instrumentation for flow, heads and torque, and the data logging and educational software. The other six pump types and a volumetric flow measurement system for reciprocating pumps are optional; the PC used to set speeds is not supplied.
Packing, MOQ and Lead Time
Tell us whether you need the standard rig or a version with extra pumps, and for how many labs. The quotation then sets out packing, delivery time and price for that exact scope and quantity, with any optional pumps itemised.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. Get in touch by the contact page, or list several products in the enquiry cart; procurement officers can also read the lab tender page.
Frequently Asked Questions
Which pumps come with the rig as standard?
A centrifugal pump and a gear pump. Axial, flexible impeller, turbine, diaphragm, plunger and a second centrifugal pump are available as optional accessories.
Can pumps be run in series and parallel?
Yes, when the optional second centrifugal pump is fitted. Four of the five pump positions can be active together.
Is Science Lab Supplies the manufacturer of the rig?
Yes. The test rig is manufactured at the company's Saha, Ambala facility in India; the pumps are fitted into it there, and quotations come from the factory directly.
Is a computer needed?
Yes. A PC, which is not supplied, is used to set pump speeds and run the included data logging software.
