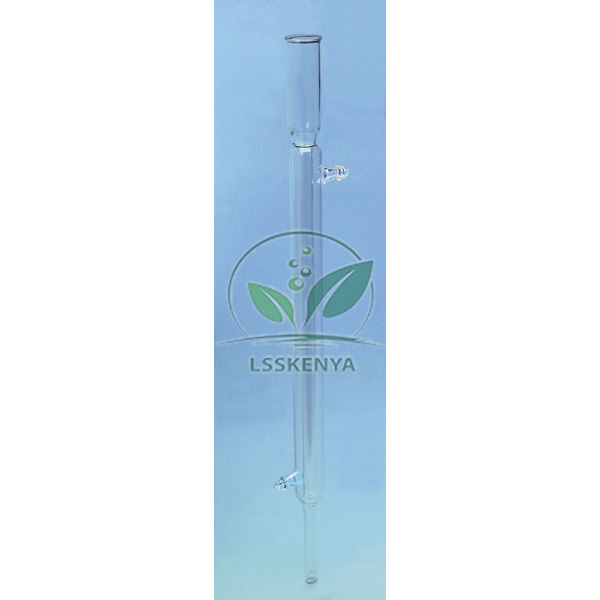

Liebig Condenser 200mm
Product Code : LSK-CL-10255
Liebig Condenser 200mm (SKU LSK-CL-10255) is a straight water-jacketed condenser that cools vapour back to liquid during distillation and reflux. Its 200 mm jacket and narrow cooling space suit school and college bench set-ups. As an item of borosilicate laboratory glassware in India, it is offered by Science Lab Supplies from Ambala, either as a single spare or as part of a complete distillation order.
Specifications
The table records each specification of the 200 mm Liebig condenser. In short, it is made of borosilicate glass, with the inner tube integral with the body rather than held by separate seals, and a narrow jacket keeps cooling water close to the vapour path along the full 200 mm length.
| Specification | Value |
|---|---|
| SKU | LSK-CL-10255 |
| Type | Liebig (straight) condenser |
| Jacket length | 200 mm (about 7.9 in) |
| Jacket design | Narrow jacket for efficient cooling |
| Inner tube | Integral with the body |
| Material | Borosilicate glass |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Liebig Condenser
The condenser is clamped at a slope from the still-head of a distillation flask, with cold water entering the lower jacket inlet and leaving at the top. Vapour condenses on the cooled inner tube and runs down into a receiver. It can also stand upright as a simple reflux condenser above a boiling flask.
- Class 9 science: separating a mixture of miscible liquids or purifying water by distillation.
- Class 11–12 chemistry: distillation and reflux in organic preparations, held on a Laboratory Retort Stand with a Three Prong Glassware Holding Clamp.
- B.Sc. organic chemistry practicals: simple distillation and solvent recovery, with a 150 mm glass Adapter (Alunge) carrying the distillate into the receiver.
Standard Scope of Supply
The Liebig Condenser 200mm is supplied as a single glass condenser as described above. Flasks, adapters, clamps and rubber water tubing are separate items, and each can be named on the quotation so that a complete distillation assembly arrives together.
Packing, MOQ and Lead Time
Condensers can be quoted singly as spares or in quantity for a whole practical lab. Each quotation states how the glassware is packed, the delivery time and the price for that quantity, and other laboratory distillation apparatus in India from the same range can go on the same list.
Science Lab Supplies is a registered exporter with an Importer-Exporter Code, which allows it to ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Distillation glassware requests reach the team via the contact page or the enquiry cart, and tendering bodies can use the lab tender page.
Frequently Asked Questions
What is the jacket length of this condenser?
The cooling jacket is 200 mm long, about 7.9 inches. The narrow jacket keeps the cooling water close to the inner tube for efficient condensation of the vapour.
What glass is the Liebig Condenser 200mm made from?
It is made from borosilicate glass, which tolerates the temperature difference between hot vapour and cold water better than ordinary soda-lime glass, and its inner tube is integral with the body.
Who supplies this condenser?
This condenser is offered by Science Lab Supplies from Ambala, India. Spares for an existing lab and full distillation sets for new benches are both quoted directly by its team.
How should cooling water be connected?
Feed water into the lower side arm and let it leave from the upper one, so the jacket stays full. Clamp the condenser securely and never heat a closed system.
