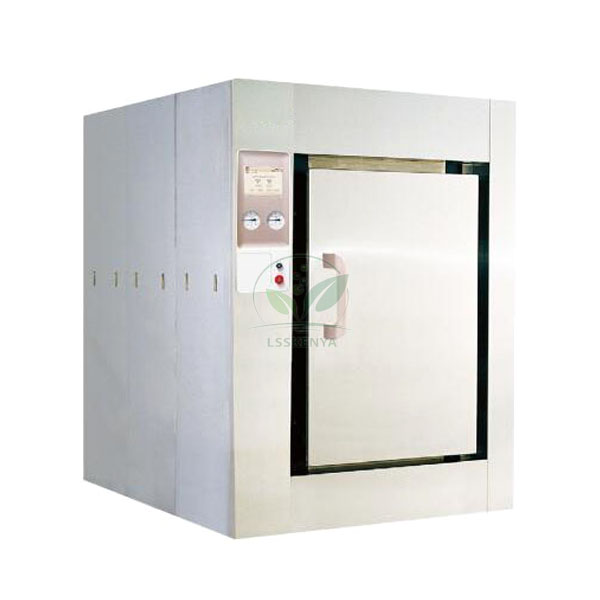

Large Horizontal Autoclave
Product Code : LSK-A-11384
Large Horizontal Autoclave (SKU LSK-A-11384) is a high-capacity steam sterilizer with an acid-proof stainless steel chamber and jacket, a motor-driven door, a compressed-air door seal and a low-noise vacuum system. A colour touch screen controls it from the loading side while six lamps show status on the unloading side. It suits central sterile services training and large research or medical college laboratories. From Ambala, Science Lab Supplies can quote and supply this horizontal autoclave in India to institutions, project contractors and distributors.
Specifications
This large horizontal unit is defined by its construction rather than a single capacity, and each feature is set out in the table. In short, it has a robot-welded acid-proof stainless steel chamber and jacket, a chamber surface of Ra ≤ 0.5 with no welds or bolts inside, and pressure transmitters in both chamber and jacket.
| Specification | Value |
|---|---|
| SKU | LSK-A-11384 |
| Type | Large horizontal steam autoclave |
| Chamber and jacket material | Acid-proof stainless steel |
| Welding | Chamber and jacket automatically robot-welded |
| Chamber design | Designed by professional analytical method |
| Chamber surface smoothness | Ra ≤ 0.5 |
| Chamber interior | No welded parts or bolts inside the chamber |
| Steam baffle plates | Surrounded by silicone rubber to protect the chamber surface |
| Door drive | Motor-driven, automatic |
| Door structure | Concave-convex tooth structure |
| Sealing | Circular hollow silicone gasket in a sealing groove, sealed by compressed air |
| Pressure measurement | Intelligent pressure transmitters for chamber and jacket |
| Vacuum system | Low-noise, water-saving vacuum system |
| Loading-side control | Colour touch screen |
| Unloading-side indication | 6 indicating lamps for running status and alarms |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Large Horizontal Autoclave
The autoclave sterilizes large batches of heat-tolerant loads with steam inside a jacketed horizontal chamber, which suits hospital lab equipment schedules for central sterile departments, medical college skills centres and large research laboratories. Control sits on the loading side, with status and alarm lamps on the unloading side.
- CSSD technician training: preparing instrument sets in containers such as the Bowl Stainless Steel and Kidney Basin Stainless Steel for a full chamber load.
- Moving loaded sets between preparation and the loading side on a Dressing Trolley.
- Biomedical engineering courses: studying jacketed chamber design, pressure transmitters, compressed-air door seals and vacuum systems.
- Research and medical college laboratories: bulk sterilizing glassware, media and reusable items.
Standard Scope of Supply
The autoclave is supplied as a single installation with its stainless steel chamber and jacket, motor-driven door, silicone door gasket, steam baffle plates, vacuum system, loading-side touch screen and unloading-side indicator lamps. Chamber capacity, utilities and any optional accessories are confirmed on the quotation for your site.
Packing, MOQ and Lead Time
Because this is a large installation, the quotation is built around your required chamber capacity and site details. It states the packing, delivery time and price for one unit or for several, and other laboratory instruments in India, such as trolleys or vertical autoclaves, can be listed on the same quote.
Science Lab Supplies holds an Importer-Exporter Code and can ship to buyers in Nepal, Bangladesh, Zambia, Rwanda, South Africa and Qatar. Share your floor space and load needs on the contact page, shortlist the unit in the enquiry cart, or see the lab tender page if a hospital or college tender applies.
Frequently Asked Questions
How is the door operated and sealed?
The door is driven automatically by a motor and uses a concave-convex tooth structure. It seals with a circular hollow silicone gasket that sits in a sealing groove and is pressed home by compressed air.
What is special about the chamber finish?
The chamber surface smoothness is Ra ≤ 0.5, and there are no welded parts or bolts inside the chamber. Steam baffle plates are edged with silicone rubber to protect the chamber surface from contact damage.
What capacity can be quoted?
Send the load volume, available utilities and room size through the contact page; the quotation then states the chamber capacity and configuration offered for this horizontal autoclave, along with packing and delivery.
Who supplies the Large Horizontal Autoclave?
Quotations for this horizontal autoclave are issued by Science Lab Supplies in Ambala, India, which coordinates the specification, packing and dispatch for colleges, research institutes, project contractors and distributors.
Related Large-Capacity Sterilizers
These horizontal, vertical and low-temperature sterilizers cover the other chamber formats and sterilization methods a central sterile area or large laboratory may compare against this unit, and any combination of them can be priced together with it on one quotation for your project.
- Horizontal Autoclave — 100 to 300 L chambers with post-drying to below 3% residual humidity.
- Horizontal Pulse Vacuum Autoclave — built-in steam generator and a printer for date, time and process data.
- Horizontal Cylindrical Pressure Autoclave — 150 to 500 L with low-water power cut-off.
- Large Capacity Pulse Vacuum Autoclave — 2000, 2500 and 3000 L chambers with double motor-driven doors.
- Hand Wheel Type Vertical Autoclave — five fixed and four user-set programs behind a hand-wheel door.
- H2O2 Low Temperature Plasma Sterilizer — sterilizes at 50 ±5 °C in 64, 135 or 225 L chambers.
