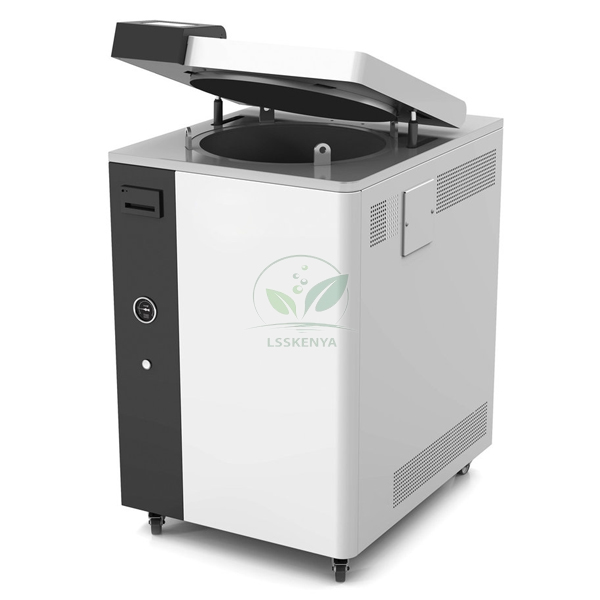

Automatic Autoclave Swiftlock Ecofill
Product Code : LSK-A-11393
Automatic Autoclave Swiftlock Ecofill (SKU LSK-A-11393) is a fully automatic steam sterilizer with a stainless steel vessel, built around a low-water, low-power chamber that needs only the minimum water per cycle. Temperature is variable from 100 to 138 °C (0.2–2.4 bar) and is set on an icon-driven colour touchscreen. It suits microbiology, life-science and teaching laboratories that run media and equipment cycles. Science Lab Supplies places orders for it from Ambala, India, on behalf of universities, contractors and distributors.
Specifications
Every feature of this low-water automatic autoclave is laid out below. In short, it pairs a stainless steel vessel and base shelf with a 100–138 °C range, a thermocouple validation gland, a gauge test port and safety valve test cycle, and a full set of locks, cut-outs and alarms.
| Specification | Value |
|---|---|
| SKU | LSK-A-11393 |
| Vessel | Stainless steel |
| Internal fitting | Base tray / shelf |
| Temperature range | 100–138 °C, variable |
| Pressure range | 0.2–2.4 bar |
| Operation | Fully automatic once filled with water |
| Water and power use | Low; chamber designed to need the minimum water per cycle |
| Controls | Icon-driven colour touchscreen |
| Validation access | Thermocouple validation gland with easy-access panel |
| Test features | Gauge test port; safety valve test cycle |
| Cut-outs | Over-temperature and over-pressure cut-out |
| Cool interlock | 80 °C, fluid cycles only |
| Thermal cooling locks | Two |
| Door lock | Pressure-activated |
| Overheat protection | Fitted |
| Alarms | Sterilization failure, water low, door unlocked |
| Cycle signals | Audio-visual end of cycle, cycle fault, cycle interruption |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Low-Water Automatic Autoclave
The autoclave runs automatic steam cycles from 100 to 138 °C once it has been filled, with a cool interlock that holds the door on fluid cycles until the load reaches 80 °C. Its validation gland and test port make it useful for teaching cycle checking in microbiology and life-science labs.
- B.Sc. and M.Sc. microbiology: fluid cycles for culture media in borosilicate flasks such as the Baffled Culture Flask, followed by incubation in an Incubation Oven.
- Biotechnology and quality courses: inserting a thermocouple through the validation gland to record chamber temperature during a cycle.
- Laboratory safety training: running the safety valve test cycle and checking the gauge through the test port.
Standard Scope of Supply
The autoclave is supplied as one unit with its stainless steel vessel, base tray or shelf, colour touchscreen controller, thermocouple validation gland with easy-access panel, gauge test port and the full safety system of door lock, cooling locks, cut-outs and alarms. Chamber size and supply details are confirmed on the quotation.
Packing, MOQ and Lead Time
Ask for one autoclave for a teaching lab or several for a department, and the quotation will give the packing, delivery time and price for that quantity. Flasks, bags and other autoclave consumables can sit on the same quotation, so the whole media preparation set-up is priced together.
Science Lab Supplies, registered with an Importer-Exporter Code, can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. Raise your questions on the contact page, line the unit up in the enquiry cart, or refer to the lab tender page for university procurement.
Frequently Asked Questions
What makes this autoclave low on water use?
Its chamber is designed so that only the minimum amount of water is needed per cycle, which keeps both water and power consumption low. Once the chamber has been filled, the whole cycle runs fully automatically.
What is the cool interlock for?
On fluid cycles only, the cool interlock keeps the door locked until the load has cooled to 80 °C. Two thermal cooling locks and a pressure-activated door lock add to this protection.
Can the cycle be validated?
Yes. A thermocouple validation gland behind an easy-access panel lets an external thermocouple be placed in the chamber, and a gauge test port plus a safety valve test cycle support routine checks.
Who supplies this automatic autoclave?
Orders are taken by Science Lab Supplies in Ambala, India, which lists the chamber size, supply and packing on its quotation and can dispatch to laboratories, colleges, tender contractors and distributors.
