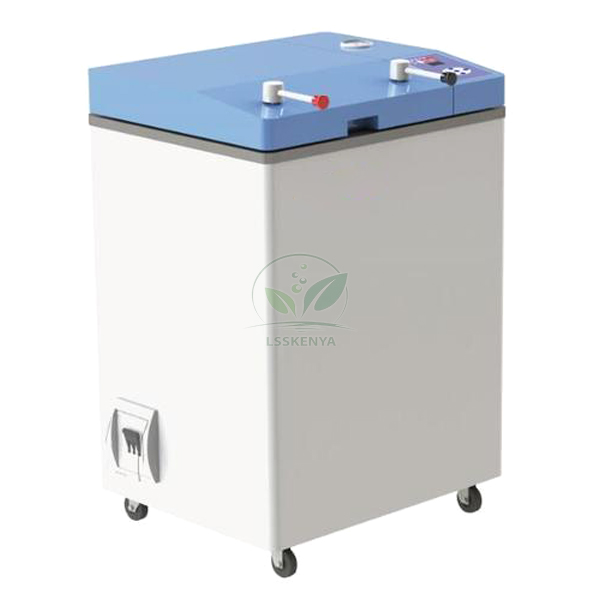

Flip Open Door Type Vertical Autoclave
Product Code : LSK-A-11380
Flip Open Door Type Vertical Autoclave (SKU LSK-A-11380) is a vertical steam sterilizer with a spring-assisted flip-open door and mechanical safety interlock, offered in 30 L, 50 L, 75 L and 100 L sizes for temperature-resistant solids and liquids. It suits hospitals, laboratories, universities and other institutes. Institutions, distributors and tender contractors can obtain a quotation for this vertical autoclave from Science Lab Supplies in Ambala, India.
Specifications
Each of the four flip-open vertical sizes is specified in the table. In short, they share a Ø385 mm polished medical stainless steel chamber, 0.22 MPa rated working pressure, 105–134 °C working range with ±0.1 °C accuracy, up to nine dynamic pulse exhausts and a 220 V, 50/60 Hz supply.
| Specification | Value |
|---|---|
| SKU | LSK-A-11380 |
| Type | Vertical steam autoclave, flip-open door |
| Capacity options | 30 L, 50 L, 75 L, 100 L |
| Chamber size (Ø x L) | 385 x 412; 385 x 515; 385 x 715; 385 x 915 mm |
| Chamber material | Polished medical stainless steel |
| Max pressure | 0.3 MPa |
| Rated working pressure | 0.22 MPa |
| Max temperature | 150 °C |
| Working temperature range | 105–134 °C |
| Temperature accuracy | ±0.1 °C |
| Timing range | 0–999 min |
| Dynamic pulse exhaust | 0–9 times |
| Water requirement | Distilled or demineralised water |
| Standard accessories | 1 or 2 stainless steel baskets, depending on size |
| Programs | Fixed programs for dressings, wrapped and unwrapped equipment, rubber, liquid |
| Door | Flip-open with spring booster; mechanical safety interlock; fully wrapped door cover against scalds |
| Seals | Radial self-expanding silicone rubber seals |
| Steam exhaust | Automatic exhausting steam function |
| Display | LED: inner temperature, time, error codes |
| Printer | Optional, for recording sterilisation data |
| Safety | Anti-dry-out; over-temperature stop with alarm; over-pressure safety valve; air switch for over-current, over-voltage and leakage |
| External material | Powder-coated cold rolled steel |
| Power consumption | 2.8 kW; 3 kW; 3.5 kW; 4.5 kW |
| Power supply | 220 V, 50/60 Hz |
| External size (W x D x H) | 610 x 645 x 710; 610 x 645 x 850; 610 x 645 x 1000; 610 x 645 x 1200 mm |
| Packing size | 770 x 670 x 950; 770 x 670 x 1060; 770 x 670 x 1210; 770 x 670 x 1430 mm |
| Gross weight | 100 kg; 108 kg; 114 kg; 125 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Flip Open Door Type Vertical Autoclave
The spring booster makes the flip-open door easy to lift, and a mechanical safety interlock secures it during operation. After loading the basket, the operator selects a fixed program; dynamic pulse exhaust removes air, and the LED shows inner temperature, time and any error code throughout.
- Dressings, wrapped and unwrapped equipment and rubber on fixed programs.
- Temperature-resistant liquids on the liquid program.
- Feed water from a 1–2 litre-per-hour Distiller for Distilled Water or a 10 L/h Deioniser Lab.
Keep clear of escaping steam and hot surfaces; only trained staff should operate the unit.
Standard Scope of Supply
Each Flip Open Door Type Vertical Autoclave is supplied with one stainless steel basket or two, depending on capacity, and its LED controller and safety systems. The optional printer, extra baskets or a water purification unit can be added to the quotation.
Packing, MOQ and Lead Time
Request a quotation for one flip-open autoclave or for several sizes together. It sets out packing, delivery time and price for each, and you can ask for the vertical autoclave price in India for other models in the range on the same document.
Science Lab Supplies has an Importer-Exporter Code and is able to ship to buyers in the UAE, Saudi Arabia, Oman, the Philippines, Nepal and Bangladesh. Send capacity and quantity through the contact page or the enquiry cart; public buyers can refer to the lab tender page.
Frequently Asked Questions
What water should be used?
The autoclave requires distilled water or demineralised water. A water distiller or deioniser can be quoted with it if your laboratory does not already have a source of purified water.
What safety features does it have?
It has a mechanical door interlock, anti-dry-out protection, an over-temperature stop with alarm, an over-pressure safety valve and an air switch against over-current, over-voltage and leakage.
Who supplies the Flip Open Door Type Vertical Autoclave?
Supply of this model is managed by Science Lab Supplies from Ambala, India, from the first quotation to export packing. Baskets, water distillers and other items can be dispatched together.
