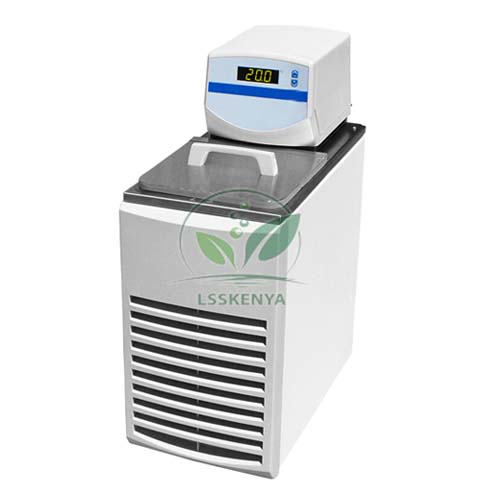

Chiller Water Bath
Product Code : LSK-TWL-10816
Chiller Water Bath (SKU LSK-TWL-10816), also called a refrigerated water bath, holds water below ambient temperature and circulates it with a 15 LPM pump. Engineering, research and analytical laboratories use it to cool samples, flasks and small vessels. Science Lab Supplies manufactures the bath at its factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and supplies it direct to colleges, research labs, tender contractors and distributors.
Specifications
Every technical detail of the bath is listed in the table below. In short, it has a powder-coated mild steel outer body, a stainless steel inner chamber and lids with PUF insulation between them, a 15 LPM circulation pump and a microprocessor PID controller, in 13 L and 23 L models reaching ambient down to 0 to -30 °C.
| Specification | Value |
|---|---|
| SKU | LSK-TWL-10816 |
| Bath volumes | 13 L and 23 L |
| 13 L model, range 1 | Ambient to 0 °C |
| 13 L model, range 2 | Ambient to -10 °C |
| 13 L model, range 3 | Ambient to -20 °C |
| 13 L model, range 4 | Ambient to -30 °C |
| 23 L model, range 1 | Ambient to 0 °C |
| 23 L model, range 2 | Ambient to -10 °C |
| 23 L model, range 3 | Ambient to -20 °C |
| Cooling medium above +5 °C | Water |
| Circulation pump | 15 LPM |
| Temperature control | Microprocessor-based PID digital indicator-cum-controller |
| Outer body | Powder-coated mild steel sheet |
| Inner chamber and lids | Stainless steel |
| Insulation | PUF between inner and outer chambers, for minimum thermal loss |
| Stated uses | Analytical and research work; thermal control applications |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Chiller Water Bath
The chiller bath is used wherever a sample or a piece of apparatus must be held at a steady low temperature. A 15 LPM pump keeps the water moving and the PID controller holds the set point, so samples, flasks and small vessels can be kept cold during analytical and research work.
- Chemical engineering labs: holding reaction samples and solutions at a steady low temperature.
- Biotechnology and life science labs: holding samples, for example in a Borosilicate Conical Flask, at low, controlled temperatures.
- Research and analytical laboratories: general thermal control below ambient.
- Training labs: showing PID temperature control on a refrigerated system and checking the bath with a Glass Thermometer.
Standard Scope of Supply
Each bath is supplied as one unit in the chosen size and temperature range: the insulated stainless steel inner chamber with lids, powder-coated outer body, refrigeration for the chosen range, the 15 LPM circulation pump and the PID digital controller. Optional accessories, if any, are listed on the quotation.
Packing, MOQ and Lead Time
Quotations are available for one bath or several. Tell us the bath volume and lowest temperature you need, and the quotation will state packing, delivery time and price; other engineering lab equipment in India from our range can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Use the contact page or enquiry cart for either bath size, or the lab tender page for tenders.
Frequently Asked Questions
Which sizes and temperature ranges are available?
The 13-litre bath comes in models reaching 0, -10, -20 or -30 °C from ambient; the 23-litre bath comes in models reaching 0, -10 or -20 °C.
What liquid should be used below +5 °C?
The specification lists water as the medium above +5 °C. For work below that, ask through the contact page which medium suits the model and temperature you plan to use.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer. The bath is produced at its own factory in Saha, Ambala, India, and quotations come directly from the factory.
Can the bath cool equipment outside the tank?
The bath has a built-in 15 LPM circulation pump that keeps the water moving for an even temperature. Whether chilled water can be piped to a condenser or reactor jacket outside the tank depends on the model, so ask through the contact page and the quotation will confirm it.
Related Temperature-Controlled Units
These Training Workshop Labs rigs work at controlled temperatures, and the Clinical Laboratory items cover heating, incubation and stirring above ambient, so together with the chiller bath they span sub-ambient to hot thermal control. Any of them can share one quotation with the bath.
- Isothermal Batch Reactor — 2-litre stainless steel reactor in a water bath controlled from ambient to 90 °C.
- Isothermal Continuous Stirred Tank Reactor — two-feed CSTR with a constant temperature water bath.
- Batch Enzyme Reactor — stirred reactor with PID temperature control, tubular coil heat exchanger and polarimeter.
- Laboratory Pasteuriser — benchtop unit with a miniature plate heat exchanger and an integral hot water system.
- Water bath, 7 L — stainless steel bath from 3 °C above ambient to 100 °C, with micro agitator.
- Incubator 30L, upto 80C — 32-litre natural-convection incubator, 5 °C above ambient to 80 °C.
- Hot Plate With Stirrer — ceramic glass hot plate adjustable to 450 °C, stirring up to 15 L.
Browse the full Training Workshop Labs range, the Clinical Laboratory range, or all TVET lab equipment.
Last updated: 9 October 2026
