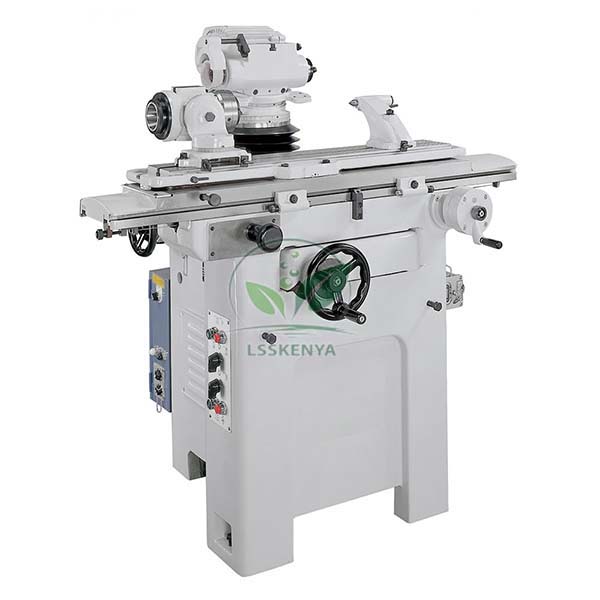

Universal Tool and Cutter Grinder
Product Code : LSK-WEAWLM-10685
Universal Tool and Cutter Grinder (SKU LSK-WEAWLM-10685) is a machine tool for sharpening and reconditioning milling cutters, reamers, drills and other cutting tools, and for light cylindrical grinding between centres. Its wheel head tilts through plus or minus 15 degrees and it takes work up to 500 mm between centres. Science Lab Supplies supplies it from Ambala, India to tool rooms, ITI and polytechnic machine shops, engineering colleges, contractors and distributors.
Specifications
All technical data for this machine appear in the table below. In short, its table traverses 500 mm lengthwise and 215 mm across with a 225 mm swing, it takes jobs up to 500 x 350 mm and 500 mm between centres, and its tilting wheel head carries a wheel of up to 175 mm.
| Specification | Value |
|---|---|
| SKU | LSK-WEAWLM-10685 |
| Max. job size held | 500 x 350 mm |
| Distance between centres | 500 mm |
| Longitudinal traverse of table | 500 mm |
| Cross traverse of table | 215 mm |
| Swing over table | 225 mm |
| Max. grinding wheel diameter | 175 mm |
| Wheel head vertical tilt | Plus or minus 15 degrees |
| Max. job weight in chuck | 15 kg |
| Max. job weight between centres | 25 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Universal Tool and Cutter Grinder
This grinder keeps a workshop's cutting tools in service: trainees learn to regrind the primary and clearance angles of milling cutters, reamers and drills, set tooth rests and tilt the wheel head for the correct geometry. Between centres it also handles light cylindrical grinding of shafts and pins.
- ITI Machinist Grinder and Tool and Die Maker trades: tool and cutter sharpening practice.
- Diploma and B.Tech production labs: tool geometry and tool-life studies, with grinding forces measured on the Grinder Tool dynamometer.
- Tool-room maintenance: reconditioning cutters used on the Universal Milling Machine and drills used on the Pillar Drill Machine.
Standard Scope of Supply
The Universal Tool and Cutter Grinder is supplied as a single machine as described above. Grinding wheels, work-holding attachments and other optional accessories can be added to suit the 500 mm between-centres capacity and 175 mm maximum wheel; any you require are itemised separately on the quotation.
Packing, MOQ and Lead Time
Each machine is quoted to your requirement, whether one grinder for a tool room or several for a training centre. The quotation states packing, delivery time and price for that quantity, and you can add other TVET workshop equipment from the same range to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Qatar, Sri Lanka, Vietnam, Malaysia, Peru and Egypt. Tool rooms wanting this cutter grinder on a quotation can use the contact page or the enquiry cart, and anyone buying through a tender can follow the lab tender page.
Frequently Asked Questions
What tools can be sharpened on it?
It is used for milling cutters, reamers, drills and similar cutting tools, and for light cylindrical grinding of parts held between centres. The wheel head tilts plus or minus 15 degrees to set tool angles.
What size of job can it hold?
It holds jobs up to 500 x 350 mm and 500 mm between centres, weighing up to 15 kg in the chuck or 25 kg between centres. Swing over the table is 225 mm.
Who supplies the Universal Tool and Cutter Grinder?
Science Lab Supplies supplies it from Ambala, India with its surface grinders, drilling machines and other workshop machines for training institutes. One quotation can cover the grinder and its wheels.
What safety precautions apply?
The abrasive wheel runs at high speed: inspect wheels before mounting, keep guards fitted, wear eye protection and let only trained, supervised operators run the machine.
