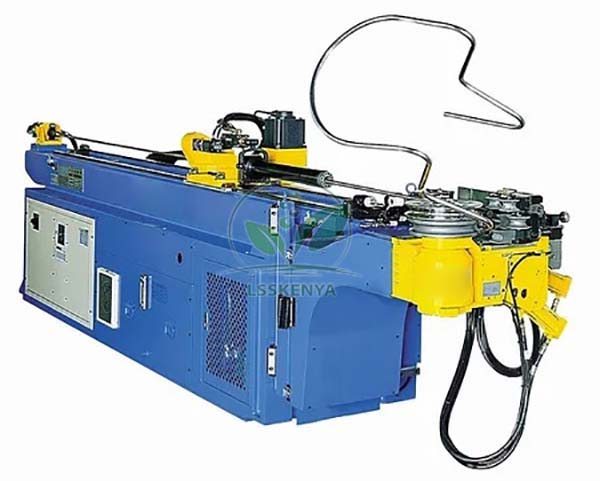

Tube Bending Machine
Product Code : LSK-WEAWLM-10691
Tube Bending Machine (SKU LSK-WEAWLM-10691) is a hydraulic, electrically controlled pipe bender for forming tube and pipe below 8 in diameter to any angle from 0° to 180°. It works in manual or automatic mode and can make several bends in sequence without re-clamping. Fabrication, plumbing and mechanical workshops in TVET and polytechnic institutes use it for pipe-forming training. Science Lab Supplies supplies it from Ambala, India to institutes, fabrication units, tender contractors and distributors.
Specifications
Every technical detail of the bender is listed in the table below. In short, it uses a hydraulic parallel integrated circuit with individually controlled movements, a three-section circuit with oil cooling, a thermally refined spindle and a hand-forged special-steel bending die, and has a built-in emergency stop.
| Specification | Value |
|---|---|
| SKU | LSK-WEAWLM-10691 |
| Pipe size | Below 8 in (203 mm) |
| Pipe suitability | Suited to large-diameter pipe |
| Bending angle | 0° to 180°, freely adjustable |
| Hydraulic circuit | Parallel integrated circuit |
| Movement control | Each movement controlled individually |
| Oil cooling | Three-section circuit with cooling function to prevent oil degradation |
| Operating modes | Manual and automatic |
| Control | Electrically controlled host machine |
| Multi-bend | Several angles set and bent in turn without transfer |
| Automatic feeding (option) | Feed length, feed segments and bend angles can be set |
| Spindle | Thermally refined |
| Bending die | Hand-forged special steel |
| Safety | Emergency stop device |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Tube Bending Machine
In training, the bender shows how pipe is formed to a drawing: marking bend positions, setting angles, allowing for springback and producing multi-bend parts such as offsets and U-bends. With automatic feed and angle setting it also introduces programmed, repeatable production bending.
- ITI Plumber and Sheet Metal Worker trades: pipe bending to set angles, with stock first cut using a Hacksaw Frame.
- Fabrication and welding modules: preparing bent pipe for frames and pipework, later joined with the Oxy-Acetylene Equipment.
- Polytechnic mechanical workshop practice: hydraulic forming and springback studies.
- TVET workshop equipment for industrial pipe-fitting programmes.
Hydraulic force and moving dies create crushing hazards. Keep hands clear of the die while bending, know where the emergency stop is, and operate only after instruction and under supervision.
Standard Scope of Supply
The Tube Bending Machine is supplied as a single unit as described above, with its hydraulic circuit, electrical controls and emergency stop. Die sizes, the automatic feeding option and supply voltage are not fixed in the specification, so they are agreed on the quotation for your pipe sizes.
Packing, MOQ and Lead Time
Quotations can be prepared for one machine for a fabrication workshop or several for a larger training centre, stating packing, delivery time and price for the quantity. Pipe clamps, a power hacksaw or a hydraulic pipe bender can be added to the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Iraq, Nigeria, Kenya, Ghana, Ethiopia and Tanzania. The hydraulic tube bender can be put on a quotation via the contact page or the enquiry cart, and fabrication labs procuring by tender may also check the lab tender page.
Frequently Asked Questions
What pipe sizes can it bend?
Pipe and tube below 8 in (about 203 mm) diameter, including large-diameter pipe. Tell us the outside diameters and wall thicknesses you use so the right dies are quoted.
Can it make several bends in one part?
Yes. Different angles can be set and bent in turn without transferring the pipe to another machine, and an automatic feed length and angle setting can be added for repeat work.
Who supplies the Tube Bending Machine?
Science Lab Supplies supplies it from Ambala, India, as part of its welding and workshop machine range for technical training, and can quote it together with saws, clamps and welding equipment for a fabrication bay.
How is the operator protected?
The machine has an emergency stop device and electrical control of the hydraulic movements. Operators should still keep hands clear of the die and work under supervision.
