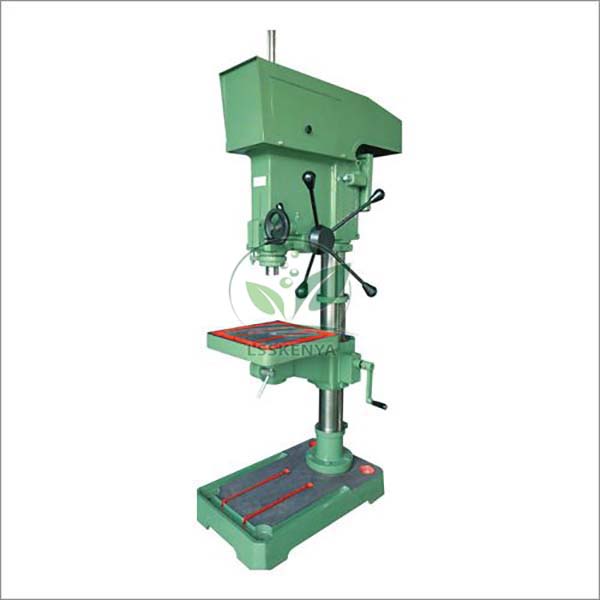

Pillar Drill Machine
Product Code : LSK-WEAWLM-10683
Pillar Drill Machine (SKU LSK-WEAWLM-10683) is a semi-automatic, column-type drilling machine for drilling, boring and tapping in steel and cast iron. It runs on a 415 V three-phase supply, drills up to 38 mm in steel and offers eight spindle speeds from 80 to 2550 rpm, with a fine auto feed. Science Lab Supplies supplies it from Ambala, India to machine shops in ITIs, polytechnics and engineering colleges, and to contractors and distributors.
Specifications
Every technical detail of the drill is listed in the table below. In short, it is a semi-automatic pillar drill on a 415 V three-phase supply, with a 72 mm ram, 245 mm manual spindle travel, fine auto feed and eight speeds, drilling 38 mm in steel within an offered range of 19 mm to 50 mm.
| Specification | Value |
|---|---|
| SKU | LSK-WEAWLM-10683 |
| Machine type | Semi-automatic pillar drill |
| Capacity range offered | 19 mm to 50 mm |
| Drilling in steel | 38 mm |
| Drilling in cast iron | 40 mm |
| Boring in steel | 60 mm |
| Tapping capacity in steel | 25 mm |
| Number of spindle speeds | 8 |
| Spindle speed range | 80 to 2550 rpm |
| Spindle travel (manual) | 245 mm |
| Auto feed | Fine feed |
| Ram diameter | 72 mm |
| Power supply | 415 V, 3 phase |
| Power consumption | 2 HP |
| Motor speed | 1440 rpm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Pillar Drill Machine
The pillar drill is used for accurate drilling, boring and tapping of workpieces too large or too heavy for a bench drill. In training it teaches speed and feed selection, work holding, centre drilling and tapping, and it serves the fitting and fabrication jobs that follow welding and cutting.
- ITI Fitter, Machinist and Welder trades: drilling and tapping exercises, with the job held in a Drilling Machine Vice.
- Diploma and B.Tech machine-shop practice: speed, feed and cutting-parameter studies, including thrust and torque measurement with the Drilling Tool dynamometer.
- TVET fabrication modules: drilling brackets, flanges and plates, with holes finished using a Round File.
Standard Scope of Supply
The Pillar Drill Machine is supplied as a single unit in the capacity you select, as described above. Drill chucks, drill bits, vices and other optional accessories can be added and, where needed, appear as separate lines on the quotation.
Packing, MOQ and Lead Time
Ask for a quotation for one pillar drill or for a full machine shop. Each quotation states packing, delivery time and price for the quantity and capacity chosen, and other workshop tools for technical training institutes can be combined with the drill in the same enquiry.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Machine shops can ask for a pillar drill quotation on the contact page or by adding it to the enquiry cart, with the lab tender page available for tendered orders.
Frequently Asked Questions
What is the drilling capacity?
The model detailed here drills 38 mm in steel and 40 mm in cast iron, bores 60 mm and taps 25 mm in steel. Machines are offered from 19 mm to 50 mm capacity.
What power supply does it need?
It needs a 415 V three-phase supply, with a listed power consumption of 2 HP. Installation should be done by a qualified electrician, and the motor runs at 1440 rpm.
Who supplies the Pillar Drill Machine?
Science Lab Supplies supplies it from Ambala, India with its grinders, shears and other workshop machines for training institutes and colleges. Single machines and full machine-shop orders can be quoted.
What safety precautions apply?
Clamp the work, never hold it by hand, keep guards in place, tie back loose clothing and wear eye protection. Trainees should operate the drill only under supervision.
