Motorised Gyroscope Apparatus
Product Code : LSK-TOMLE-10618

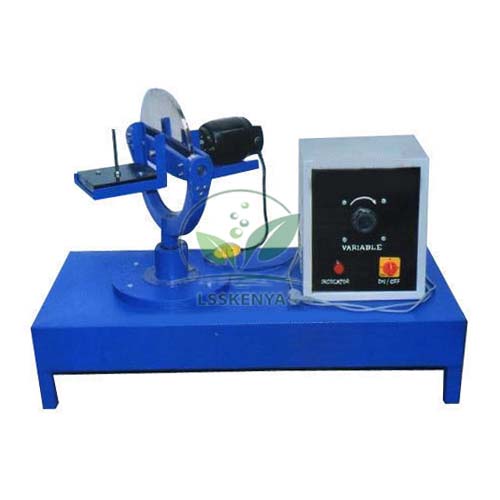

Motorised Gyroscope Apparatus (SKU LSK-TOMLE-10618) demonstrates the gyroscopic couple: a 250 mm motor-driven rotor, free to turn about three axes, precesses when torque is applied through weights. Mechanical engineering students use it to verify the relation between spin speed, precession speed and applied couple. The apparatus is produced by Science Lab Supplies at its manufacturing unit in Saha, Ambala, Haryana, India, which sells it directly to engineering colleges, polytechnics, tender contractors and distributors.
Specifications
Rotor, drive, weights and site needs of the gyroscope are tabulated one per row below. In short, a 250 mm rotor in bearings, free about three axes, is spun by a dimmerstat-controlled motor balanced by a counterweight, while 0.2, 0.5 and 1 kg weights on a platform apply the couple.
| Specification | Value |
|---|---|
| SKU | LSK-TOMLE-10618 |
| Rotor diameter | 250 mm |
| Rotor mounting | In bearings |
| Freedom | About 3 axes of rotation |
| Drive | Variable-speed motor connected to the rotor |
| Motor balance | Counterweight on the opposite side |
| Speed control | Dimmerstat |
| Weights | 0.2 kg, 0.5 kg and 1 kg |
| Couple application | Weight platform |
| Timing | Stopwatch for angular speed about the precession axis |
| Documentation | Technical manual |
| Tachometer | Not included; available at extra cost |
| Power supply | 220 V stabilised AC with earthing connection |
| Bench area | 0.5 x 0.5 m at working height |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Motorised Gyroscope Apparatus
Students spin the rotor at a set speed, load the weight platform and time the resulting precession. Comparing the measured couple with the product of moment of inertia, spin speed and precession speed verifies the gyroscopic law, a core Theory of Machines practical.
- B.Tech/B.E. mechanical, Theory of Machines: verifying the gyroscopic couple equation, building on rotor inertia measured with an Inertia Table.
- Diploma mechanical engineering: identifying spin, precession and couple axes.
- Applied examples: gyroscopic effects on ships, aircraft and vehicles turning at speed.
- Physics groundwork: finding moment of inertia by oscillation on the Bifilar Pendulum before the gyroscope practical.
Keep fingers and loose clothing away from the spinning rotor and change weights only after the speed has been reduced.
Standard Scope of Supply
Each unit comprises the 250 mm rotor in its bearing frame, the variable-speed motor with counterweight, the dimmerstat, the weight platform with 0.2, 0.5 and 1 kg weights, a stopwatch and the technical manual. Not included: a tachometer for measuring spin speed, which can be quoted at extra cost.
Packing, MOQ and Lead Time
A single gyroscope or a complete set of dynamics units can be quoted, with packing, delivery time and price stated for the quantity. The optional tachometer and other Theory of Machines apparatus from the same range can go on the same quotation from this TVET lab equipment supplier.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Ask for a price through the contact page, add the gyroscope and optional tachometer to the enquiry cart, or consult the lab tender page when buying through a tender.
Frequently Asked Questions
Is a tachometer supplied with the Motorised Gyroscope Apparatus?
No. The tachometer for measuring rotor speed is listed as a service requirement and can be supplied at extra cost on the same quotation.
What does the apparatus need on site?
It needs a 220 V stabilised AC supply with an earthing connection and a bench area of about 0.5 x 0.5 m at working height, with space nearby to set down the weights.
Does Science Lab Supplies make this gyroscope itself?
Yes. The gyroscope is built in the Science Lab Supplies factory at Saha, Ambala, India, and quotations, technical queries and dispatch are all handled by the manufacturer.
How is the gyroscopic couple applied?
Weights of 0.2, 0.5 or 1 kg are placed on the weight platform. Their moment about the pivot is the applied couple that makes the spinning rotor precess.
Related Rotational Dynamics Apparatus
The gyroscope pairs naturally with other rotating-body experiments. These items from the Theory of Machine Lab Equipments and Applied Mechanics ranges add balancing, Coriolis acceleration, gear torque, governors, flywheel and torsional inertia, so a dynamics lab can be quoted as one package.
- Static and Dynamic Balancing Apparatus — stainless-steel shaft with four eccentric blocks, weighed in steel balls on a cord and container.
- Cariollis Component of Acceleration — hydraulic analogy, with a rotameter reading water flow through the rotating tubes.
- Epicyclic Gear Train Holding Torque Apparatus — sun gear drives two planet gears meshing with an annular gear.
- Motorised Governor Apparatus — motor-driven governor rig from the same Theory of Machines range.
- Fly Wheel — chrome-plated rim marked with a line, supplied with cord, hook and a fixed pointer.
- Air-Bearing Rotational System — disc on an air bearing with a 0–360 degree scale in 1 degree divisions.
- Torsion Pendulum — 12.5 cm solid brass disc with a brass ring that raises the moment of inertia.
Browse the full Theory of Machine Lab Equipments range, the Applied Mechanics range for inertia and rotation apparatus, or all TVET lab equipment.
Last updated: 9 October 2026
