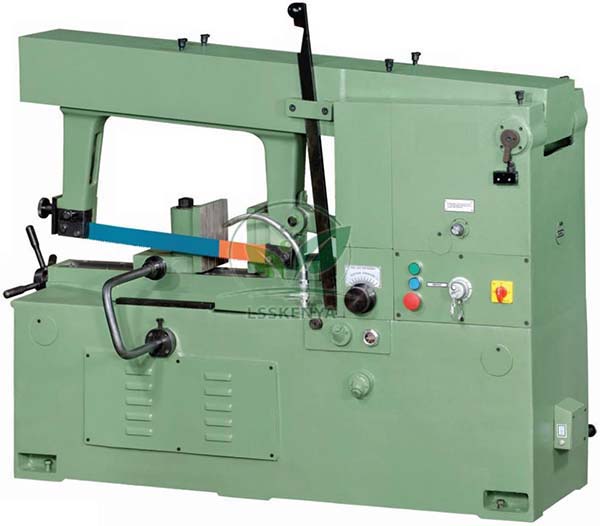

Power Hacksaw Machine
Product Code : LSK-SWES-10695
Power Hacksaw Machine (SKU LSK-SWES-10695) is a motor-driven reciprocating saw for cutting round, square and angled bar stock to length. It is offered in two sizes, with 0.75 kW and 1.5 kW main motors. Fabrication and fitting workshops in ITIs, polytechnics and TVET colleges use it to prepare stock for welding exercises. Both sizes are supplied by Science Lab Supplies from Ambala, India, to institutes, tender contractors and distributors.
Specifications
Each technical detail for both sizes is listed in the table below. In short, the cutting arm moves hydraulically and lifts clear of the work on the forward stroke, a lever gives three cutting feeds, a motorised coolant system keeps the cut smooth and the arm lifts automatically when the cut is finished.
| Specification | Value |
|---|---|
| SKU | LSK-SWES-10695 |
| Models | Two sizes (smaller / larger) |
| Cutting capacity, round | 200 / 300 (as listed) |
| Cutting capacity, square | 150 / 200 (as listed) |
| Cutting capacity at 45 degrees | 150 / 200 (as listed) |
| Length of stroke | 140 / 160 (as listed) |
| Strokes per minute | 80, 100 and 125 (both models) |
| Blade size | 400 x 32 x 1.6 / 525 x 45 x 2.25 (as listed) |
| Main motor | 0.75 kW / 1.5 kW |
| Cutting arm drive | Hydraulic |
| Return stroke | Arm lifts out of contact with the workpiece on the forward stroke |
| Cutting feed | Three speeds, selected by lever to suit the material |
| Coolant | Motorised coolant system |
| End of cut | Automatic lift of cutting arm after job completion |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Power Hacksaw Machine
The machine cuts bar, rod, pipe and sections to length before welding, fitting or machining, and shows trainees how feed, stroke rate and coolant affect a mechanical cut. It is standard stock-preparation equipment in ITI Fitter and Welder trades, diploma workshop practice and TVET fabrication modules.
- ITI Fitter and Welder trades: cutting stock to length for job exercises later joined on the Shielded Metal ARC Welding Machine.
- Diploma and B.Tech workshop practice: demonstrating power sawing in the machine shop.
- TVET fabrication modules: preparing square and mitred (45 degree) cuts for frames.
- Cutting test strips from welded plate for the Bend Test Equipment.
Clamp the job firmly, keep hands clear of the moving blade, and have trainees wear eye protection and work under supervision.
Standard Scope of Supply
The Power Hacksaw Machine is supplied as a single machine in the size you select, with the hydraulic arm and motorised coolant system described above; any optional accessories are listed on the quotation. Spare blades and cutting coolant are consumables and are quoted separately.
Packing, MOQ and Lead Time
Ask for one machine or several for a larger TVET workshop equipment order; the Science Lab Supplies quotation sets out packing, delivery time and price for the model and quantity. Hand tools and spare blades from the same range can go on one quotation with the machine.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Say which power hacksaw size suits your workshop on the contact page or in the enquiry cart; tender buyers will find the lab tender page useful.
Frequently Asked Questions
What is the difference between the two models?
The smaller lists 200 round and 150 square capacity, 0.75 kW and a 400 x 32 x 1.6 blade; the larger 300 and 200, 1.5 kW and a 525 x 45 x 2.25 blade.
Can it make angled cuts?
Yes. The capacity at 45 degrees is listed as 150 on the smaller model and 200 on the larger, which suits mitred joints for welded frames and other fabrication exercises.
Who supplies the Power Hacksaw Machine?
Science Lab Supplies supplies it from Ambala, India to ITIs, polytechnics, TVET colleges, contractors and distributors, quoting the model, quantity and delivery location you specify.
Why does the arm lift on the forward stroke?
A hacksaw blade cuts on one stroke only. Lifting the arm on the idle stroke stops the teeth dragging, which protects the blade and the surface of the workpiece.
Related Cutting and Fabrication Equipment
Stock cut on the power hacksaw is usually cleaned, bent or welded next. These items from the welding range and two other TVET ranges cover band sawing, hand sawing, powered and manual shearing, deburring and pipe bending, so a complete cutting and forming bench can be quoted together.
- Band Saw Machine — hydraulic clamping and blade movement with water cooling, for round, square and solid bar.
- Hacksaw Frame — 12 in powder-coated MS frame with a 300 mm blade.
- Manual Hand Shear — cuts 70 x 6 mm flat steel and 13 mm round rod.
- Electric Shear — 620 W, 1600 strokes per minute, cuts 3.2 mm mild steel.
- Angle Grinder — 7 in wheel with a gear housing that rotates 90 degrees for cutting.
- Flat File — bastard, second-cut and smooth grades for deburring cut ends.
- Hydraulic Pipe Bending Machine — 9, 19 and 21 ton models with formers up to 4 in.
Browse the full Standard Welding Equipment Set range, the Metal Manufacturing Training Machine range for vices, drills and grinders, or all TVET lab equipment.
