Research Microscope Co-Axial
Product Code : LSK-M-11371

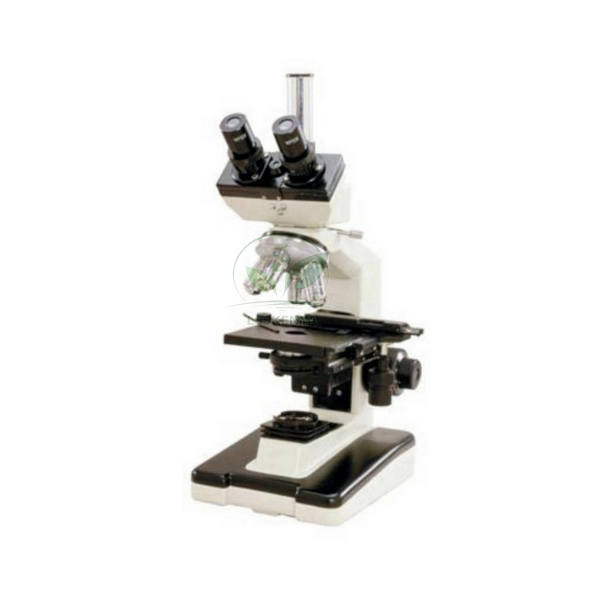

Research Microscope Co-Axial (SKU LSK-M-11371) is a compound microscope whose co-axial focusing runs on a 4-stage gear reduction system travelling on ball guides, operated by knobs on both sides. It pairs DIN achromatic objectives up to 100X oil with halogen illumination and a graduated mechanical stage. It suits college, university and research slide work. Science Lab Supplies arranges its supply from Ambala, India for academic institutions, distributors and contractors.
Specifications
The co-axial research microscope's specifications are set out row by row below. In short, a large base with built-in hand rest contours carries a quadruple click-stop nosepiece, a 135 x 140 mm graduated stage scanning 50 x 70 mm, a 6V-20W halogen lamp with switch and intensity regulator, and a daylight mirror attachment.
| Specification | Value |
|---|---|
| SKU | LSK-M-11371 |
| Focusing system | Co-axial, 4-stage gear reduction travelling on ball guides |
| Focus knobs | On both sides |
| Base | Large base with built-in hand rest contours |
| Eyepieces | DIN size wide field WF 10X and H5X, H6X or H15X (any two pairs) |
| Objectives | Achromatic DIN size 4X, 10X, 40X SL, 100X SL oil immersion |
| Nosepiece | Quadruple, accurate centering, positive click stops |
| Stage | Built-in graduated mechanical stage, 135 x 140 mm |
| Scanning range | 50 x 70 mm |
| Illumination | 6V-20W halogen bulb, built into the base |
| Mains supply | 220 V; 100 V or 110 V option confirmed on the quotation |
| Light controls | On/off switch and light intensity regulator |
| Daylight option | Mirror attachment |
| Accessories | Vinyl cover, duster, cleaning brush, filter, immersion oil, operating manual |
| Packing | Full-mould Styrofoam box |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Research Microscope Co-Axial
Smooth, geared co-axial focusing makes this research microscope comfortable for long sessions at high magnification, where small focus changes matter. Knobs on both sides let left- and right-handed users work easily, and the hand rest contours steady the hands. It fits undergraduate, postgraduate and research life-science laboratories.
- Microbiology: Gram-stained and other stained smears, prepared with Stains and Reagents for Microscopy, under the 100X SL oil objective.
- Histology and pathology teaching: systematic scanning of tissue sections across 50 x 70 mm.
- Cell biology and genetics: mitosis, meiosis and chromosome preparations at 400x to 1000x.
- Building a reference collection of slides kept in a Storage Box, 100 Slides.
Standard Scope of Supply
Each microscope is packed in a full-mould Styrofoam box and includes the instrument with its four DIN achromatic objectives, two eyepiece pairs, graduated stage, built-in halogen lighting and mirror attachment, together with a vinyl cover, duster, cleaning brush, filter, immersion oil and operating manual.
Packing, MOQ and Lead Time
Buyers sourcing lab equipment for research in India can request a quote for one microscope or a matched set for a research or teaching laboratory. Science Lab Supplies shows packing, delivery time and price for the requested quantity, and the same quotation can carry prepared slides, stains or slide storage.
Backed by an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. Your enquiry can be sent from the contact page or assembled in the enquiry cart, and tender buyers will find guidance on the lab tender page.
Frequently Asked Questions
What is special about the co-axial focusing?
Coarse and fine focusing share one axis and are driven through a 4-stage gear reduction system travelling on ball guides. Knobs on both sides of the stand give smooth control from either hand.
Which mains voltage does the Research Microscope Co-Axial use?
The 6V-20W halogen bulb operates on a 220 V supply, with a lower-voltage option also offered. State your local mains voltage when asking for a quotation so the correct version is confirmed.
What area of a slide can be scanned?
The built-in graduated mechanical stage measures 135 x 140 mm and moves the specimen slide over a 50 x 70 mm range, and its graduations help locate and return to a point of interest.
Who supplies the Research Microscope Co-Axial?
The company behind each quotation is Science Lab Supplies of Ambala, India. It confirms the eyepiece pairs, supply voltage, packing and dispatch details for colleges, research laboratories and distributors before any order is accepted.
