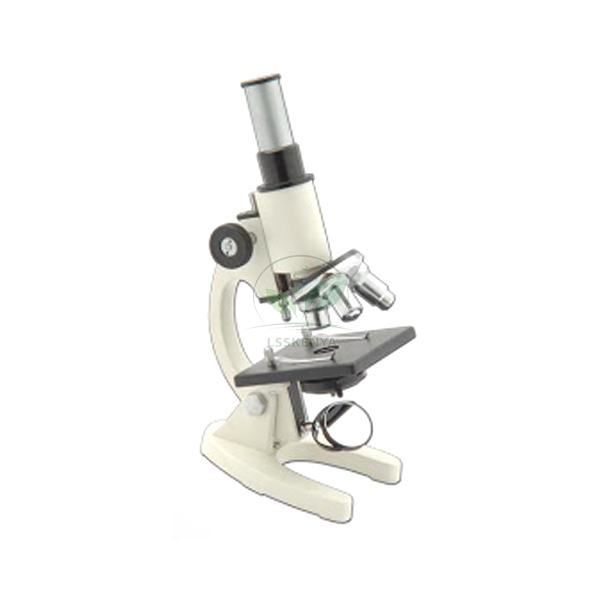

Junior School Microscope
Product Code : LSK-M-11359
Junior School Microscope (SKU LSK-M-11359) is a monocular compound microscope with a triple revolving nosepiece, achromatic 4x, 10x and 40x SL objectives, Huygenian 10x and 15x eyepieces and a fixed 100 x 100 mm stage lit by a 38 mm mirror. It suits school biology classes taking their first steps with cells and prepared slides. Science Lab Supplies offers it from Ambala, India, with quotations for schools, colleges, tender contractors and distributors.
Specifications
The Junior School Microscope's features are set out in the table. In short, it combines an inclinable 160 mm monocular tube with three achromatic objectives, a square stage with clips and a plano-concave mirror on a gimbal mount, and it is also offered as a simpler version with a single 10x objective and no nosepiece.
| Specification | Value |
|---|---|
| SKU | LSK-M-11359 |
| Observation head | Monocular tube, inclinable up to 90 degrees |
| Mechanical tube length | 160 mm |
| Nosepiece | Triple revolving, positive centring and click stops |
| Objectives | Achromatic 4x, 10x and 40x SL |
| Eyepieces | Huygenian 10x and 15x |
| Stage | Fixed square stage, 100 x 100 mm |
| Slide holding | Stage clips |
| Illumination | Plano-concave mirror, 38 mm diameter, on gimbal mount |
| Alternative version | Single 10x objective, without nosepiece |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Junior School Microscope
This microscope gives younger biology students a straightforward way to move from low to high power. They can find a specimen with the 4x objective, centre it, then click round to 10x and 40x SL, angling the inclined tube for comfortable viewing and adjusting the mirror to bring daylight onto the slide.
- Class 6–10 science: onion peel, cheek cells and other first slides, including wet mounts on the Cavity Glass Slide Collection.
- Class 9–10 biology: plant tissues on the Plant Tissue Biology Practical Slide.
- Storing prepared and student-made slides in the Storage Box, 100 Slides after each practical.
- Learning the parts of a microscope and how magnification is worked out from eyepiece and objective.
Standard Scope of Supply
The standard model is supplied with its inclinable monocular tube, triple revolving nosepiece, achromatic 4x, 10x and 40x SL objectives, Huygenian 10x and 15x eyepieces, fixed 100 x 100 mm stage with clips and 38 mm plano-concave mirror. The single-objective version without a nosepiece can be quoted instead.
Packing, MOQ and Lead Time
Quotations are available for a single microscope or a set for a whole class, each with packing, delivery time and price for the quantity. Say whether you need the standard or the single-objective version, and slides or slide boxes can be added to the same student microscope order.
Holding an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Saudi Arabia, Oman, the Philippines, Nepal, Bangladesh and Zambia. Ask a question on the contact page, compile items in the enquiry cart, or follow the lab tender page for public tenders.
Frequently Asked Questions
What magnifications does the Junior School Microscope give?
With achromatic 4x, 10x and 40x SL objectives and Huygenian 10x and 15x eyepieces, total magnification runs from 40x with the lowest pair to 600x with the 40x objective and the 15x eyepiece.
Is there a version without a nosepiece?
Yes. Besides the standard triple-nosepiece model, it can be supplied with a single 10x objective and no nosepiece fitted, which keeps the microscope simple for beginners. State which version you want on your enquiry.
How is the specimen illuminated?
A 38 mm plano-concave mirror on a gimbal mount reflects daylight or lamp light up through the stage. The flat side suits a strong light source and the concave side gathers weaker light.
Who supplies the Junior School Microscope?
Science Lab Supplies sends quotations and dispatches it from Ambala, India. Schools and distributors can combine it with prepared slides, cover glasses and other microscopes from the range on a single quotation.
