Binocular Research Microscopes
Product Code : LSK-M-11366

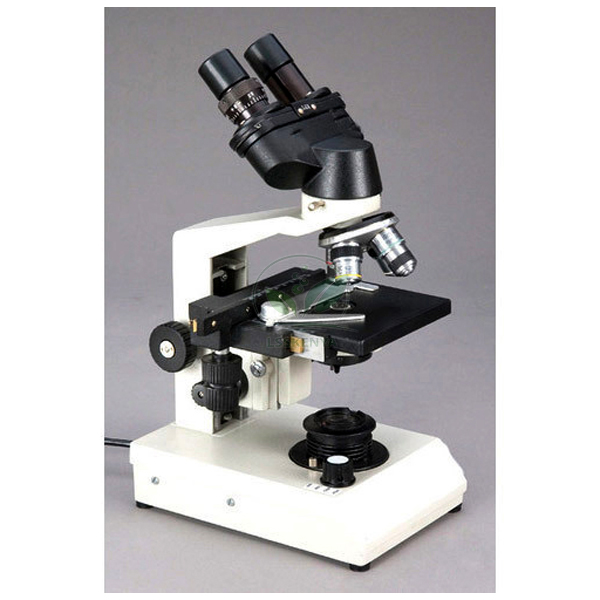

Binocular Research Microscopes (SKU LSK-M-11366) are compound microscopes with a binocular head inclined at 45° and rotatable through 360°, achromatic objectives from 4X to 100X oil immersion, and a graduated stage that scans a 50 x 75 mm area. They suit college and university practical sessions where students observe with both eyes. Science Lab Supplies offers the model from Ambala to colleges, laboratories, resellers and procurement agencies looking for lab equipment for research in India.
Specifications
The table lists every detail of this binocular research microscope. In short, its quadruple click-stop nosepiece holds four achromatic objectives, the 135 x 120 mm built-in stage moves the slide over 50 x 75 mm on low coaxial drives, and a 6V-20W halogen lamp or a daylight mirror lights the specimen.
| Specification | Value |
|---|---|
| SKU | LSK-M-11366 |
| Observation head | Binocular, inclined at 45°, rotatable through 360° |
| Eyepieces | Wide field WF 10X and H5X, H6X or H15X (any two pairs) |
| Objectives | Achromatic 4X, 10X, 40X SL, 100X SL oil immersion |
| Nosepiece | Quadruple, accurate centering, positive click stops |
| Stage | Built-in graduated mechanical stage, 135 x 120 mm |
| Scanning range | 50 x 75 mm |
| Stage controls | Low coaxial drive controls |
| Illumination | 6V-20W halogen lamp, 220/110 V |
| Daylight option | Mirror attachment |
| Accessories | Vinyl cover, duster, cleaning brush, filter, immersion oil, operating manual |
| Packing | Full-mould Styrofoam box |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Binocular Research Microscopes
This binocular model handles prepared and freshly stained slides from low-power scanning up to oil-immersion work. The coaxial drives move the slide over a 50 x 75 mm range, so a whole section or smear can be searched systematically. It fits undergraduate biology, microbiology and life-science teaching laboratories.
- B.Sc. zoology and botany: tracing tissue layers across complete sections with the coaxial stage drives.
- Microbiology: smears stained on a Rack Staining Slides Horizontal and viewed with the 100X SL oil objective.
- Cell biology: following stages of mitosis and meiosis in prepared slides.
- Wet mounts of pond water or cheek cells, covered with Glass Coverslips for Microscopy (10g).
Standard Scope of Supply
The set consists of the binocular microscope with its rotatable head, four achromatic objectives, two eyepiece pairs, the built-in graduated stage, the halogen lamp and mirror attachment. It is packed in a full-mould Styrofoam box together with a vinyl cover, duster, cleaning brush, filter, immersion oil and operating manual.
Packing, MOQ and Lead Time
Ask for a quotation for a single microscope or for enough binocular units to fill a teaching laboratory. Every quotation from Science Lab Supplies shows packing, delivery time and price for the stated quantity, and you can include prepared slide sets or coverslips on the same request.
Science Lab Supplies holds an Importer-Exporter Code and can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Reach the team through the contact page, build a list in the enquiry cart, or check the lab tender page for tender-based purchasing.
Frequently Asked Questions
How does this model differ from the monocular research version?
Both share the 135 x 120 mm graduated stage, quadruple nosepiece and 6V-20W halogen lamp. This one has a 45° binocular head, so students observe with both eyes, and its coaxial drives scan the slide over 50 x 75 mm.
Can the head be turned?
Yes. The binocular head rotates through a full 360°, so it can face the observer from either side of the bench or be turned towards a demonstrator explaining the specimen to a student.
Is immersion oil included for the 100X objective?
Yes. Immersion oil is packed with the microscope along with a filter, vinyl cover, duster, cleaning brush and operating manual, so oil-immersion work can begin as soon as the instrument is set up.
Who supplies the Binocular Research Microscopes?
Orders for this model are handled by Science Lab Supplies in Ambala, India. The company prepares the quotation, confirms the eyepiece pairs and packing, and arranges dispatch for laboratories, colleges and distributors in India and abroad.
