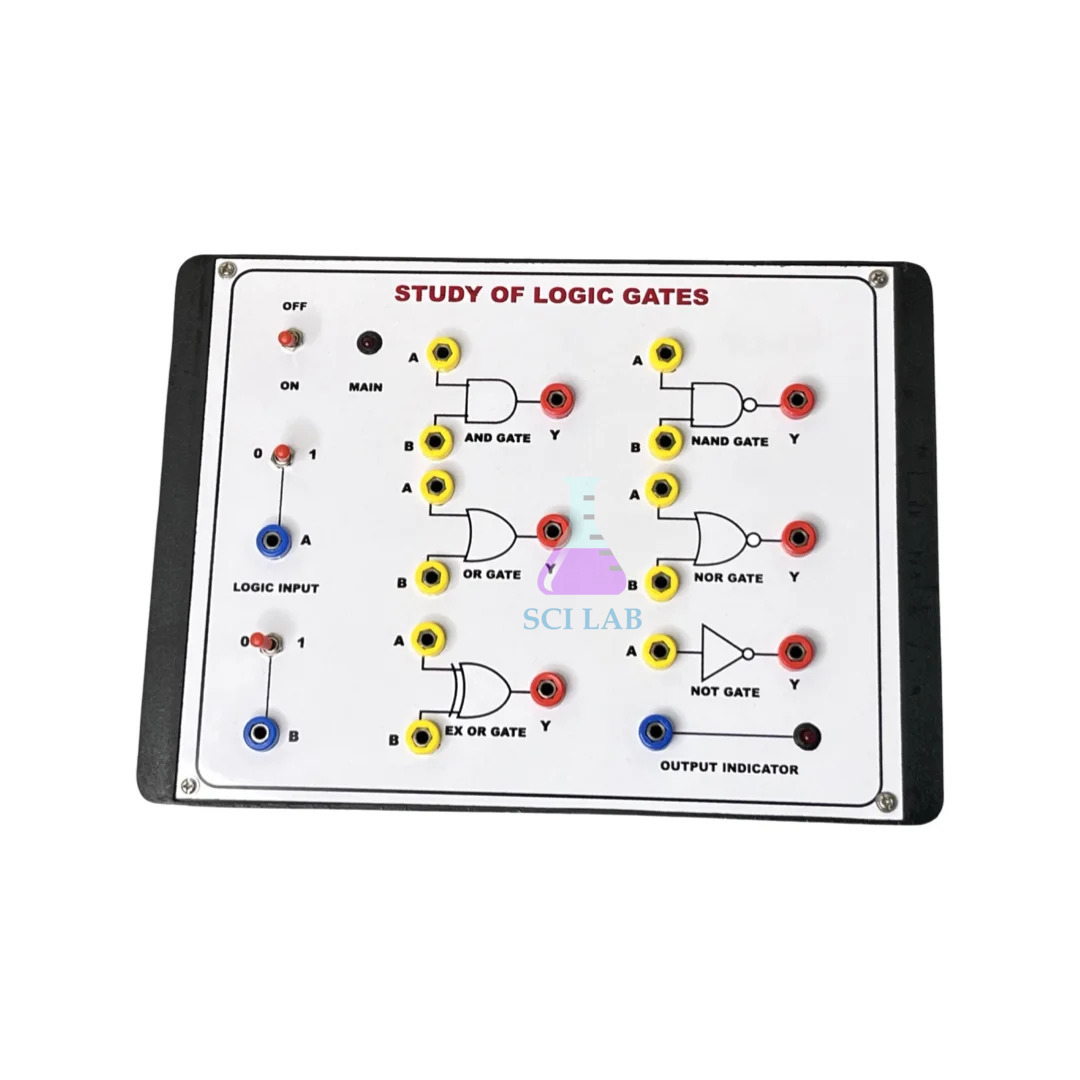

Versatile 6-in-1 Logic Gate Apparatus

Product Code : SCL-EAE-12052

The 6-in-1 Logic Gate Apparatus is a digital electronics teaching device used for studying the operation of AND, OR, NOT, NAND, XOR, and NOR logic gates through practical demonstrations. It is intended for students, teachers, electronics laboratories, technical institutes, and engineering training environments that require hands-on study of fundamental digital logic functions.

Product Description

The Versatile 6-in-1 Logic Gate Apparatus combines six fundamental logic-gate functions in one educational unit. The apparatus covers AND, OR, NOT, NAND, XOR, and NOR gates and provides clear front-panel indications to help learners identify and study each logic function.

A convenient switching arrangement allows users to move between the available gate functions during practical sessions. The apparatus is suitable for introductory digital-electronics experiments, truth-table verification, classroom demonstrations, and laboratory exercises. For complementary training equipment, explore the Electronics Lab Equipment range and Electrical and Electronics apparatus.

Key Features

• Six logic gates in one apparatus: Covers AND, OR, NOT, NAND, XOR, and NOR functions.
• Practical digital-logic learning: Enables students to study gate behavior through hands-on experiments.
• Convenient gate selection: A switching arrangement supports movement between different logic-gate functions.
• Clear front-panel indications: Helps users identify individual logic functions during demonstrations.
• Truth-table verification: Suitable for comparing practical outputs with expected Boolean logic results.
• Laboratory-ready educational design: Useful for schools, colleges, technical institutes, and electronics training laboratories.
• Consolidated teaching solution: Reduces the need for separate apparatus for each of the six listed logic gates.

Technical Specifications

The six supported gate functions, switching arrangement, front-panel indications, manual, and patch cord are documented for the matching apparatus.

What's Included in the Kit

• 1 × Versatile 6-in-1 Logic Gate Apparatus
• 1 × Manual
• Patch cord

No additional accessories should be assumed unless confirmed in the final commercial quotation or supply documentation.

Applications / Uses

• Studying AND, OR, NOT, NAND, XOR, and NOR logic operations.
• Verifying truth tables through practical experiments.
• Demonstrating Boolean logic concepts in classrooms.
• Supporting introductory digital-electronics laboratory work.
• Training students in technical, vocational, diploma, and engineering programs.
• Conducting supervised experiments alongside other Engineering Laboratory Equipment.

How to Use the Versatile 6-in-1 Logic Gate Apparatus

1. Place the apparatus on a clean, dry, and stable laboratory surface.
2. Review the supplied manual before making any connection.
3. Select the required logic gate using the provided switching arrangement.
4. Connect the required inputs using the appropriate patch connection method.
5. Apply the input combinations required by the experiment.
6. Observe the corresponding output indication.
7. Record each input-output combination and compare it with the theoretical truth table.
8. Repeat the procedure for the remaining logic gates.

Safety note: Use only the specified power source and connection procedure for the supplied model. Do not energize the apparatus with an unverified voltage.

Care & Maintenance

• Keep the apparatus dry and protect it from dust, moisture, and conductive contamination.
• Handle patch cords and terminals carefully; do not pull leads by the cable.
• Disconnect power after experiments and before cleaning or inspection.
• Store the apparatus in a clean, dry location when not in use.

Why Choose Science Lab Supplies

Science Lab Supplies presents itself as a manufacturer, supplier, and exporter of laboratory and educational equipment, with company operations dating to 1986. Its portfolio includes electronics lab equipment, physics apparatus, engineering laboratory equipment, and broader educational training systems for institutional users.

The company also maintains dedicated product categories for electronics and engineering education, allowing laboratories and institutional buyers to source complementary apparatus from related ranges. Buyers can review additional Educational Lab Equipment for multidisciplinary teaching requirements.

Frequently Asked Questions

What is a 6-in-1 Logic Gate Apparatus used for?

A 6-in-1 Logic Gate Apparatus is used to study and demonstrate six fundamental digital logic operations: AND, OR, NOT, NAND, XOR, and NOR. It supports practical experiments and truth-table verification.

Which logic gates are included in this apparatus?

The apparatus covers AND, OR, NOT, NAND, XOR, and NOR gates. These six functions are used to demonstrate fundamental principles of digital logic.

Can students verify truth tables with this apparatus?

Yes. Students can apply different input combinations, observe the corresponding outputs, and compare the results with theoretical truth tables.

Who can use the 6-in-1 Logic Gate Apparatus?

It is suitable for students, teachers, laboratory instructors, technical institutes, vocational programs, colleges, and engineering education environments.

Are the operating voltage and IC numbers specified?

No. The available product information does not state the operating voltage or specific IC numbers. These details should be confirmed before ordering or energizing the apparatus.

What accessories are included?

The matching product information specifies a manual and patch cord as included accessories. Any additional accessories should be confirmed with the supplier.

For more apparatus used in practical circuit and digital-electronics education, explore the complete Electronics Lab Equipment range from Science Lab Supplies.
