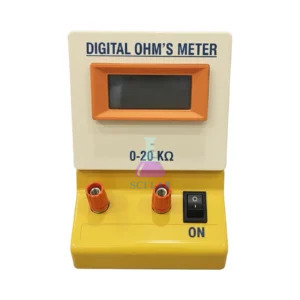

Digital Ohmmeter 20K?

Product Code : SCL-EAE-12251

The Digital Ohmmeter 20KΩ is a laboratory resistance-measuring instrument used for checking resistance values up to 20KΩ in school and college physics or electronics circuits. It is suitable for physics labs, electronics classrooms, STEM labs, technical institutes, distributors, and educational procurement buyers.

Product Description

The Digital Ohmmeter 20KΩ from Science Lab Supplies is intended for practical electrical measurement where students and teachers need to measure resistance in ohms or kilo-ohms. The supplied product name confirms a 20KΩ measuring range; exact display type, resolution, accuracy, test-current method, lead type, power source, case material, and certification must be confirmed before publication.

This ohmmeter supports classroom work on resistance, continuity checking, resistor identification, circuit testing, and Ohm’s law demonstrations. It should be used only on de-energized circuits or isolated components, according to the final supplied model instructions.

Key Features

• 20KΩ resistance range: identified from the supplied product name; final operating details must be verified.
• Digital resistance reading: supports easier observation and recording during laboratory practicals where display details are confirmed.
• Physics and electronics use: suitable for resistance measurement, circuit checking, and component testing in supervised labs.
• Ohm’s law support: helps students connect resistance values with voltage, current, and circuit behaviour.
• Reusable measurement instrument: suitable for repeated school, college, STEM, and vocational electronics sessions.
• Safety-led use: designed for resistance checks on non-live circuits and isolated components.
• Honest specification handling: no accuracy, calibration, protection, or certification claim is made without documentation.

Technical Specifications

What's Included in the Kit

• 1 × Digital Ohmmeter 20KΩ main unit
• Test leads, probes, battery, user manual, calibration note, or test certificate

Applications / Uses

• Measuring resistance values in school and college electronics circuits
• Checking resistors, resistance boxes, coils, wires, and training-board components where compatible
• Supporting Ohm’s law experiments and resistance-comparison activities
• Helping students identify open circuits, high resistance, and continuity conditions where the model supports it
• Using in physics, electrical, electronics, STEM, and vocational training laboratories
• Preparing observation tables, resistance readings, calculations, and practical records

How to Use the Digital Ohmmeter 20KΩ

1. Confirm the resistance range, power source, lead type, and operating instructions before use.
2. Switch off the circuit and disconnect external power before measuring resistance.
3. Discharge capacitors and isolate the component if the experiment requires it.
4. Connect the test leads or terminals as specified for the supplied model.
5. Select the correct range if the ohmmeter has range selection.
6. Touch the probes across the resistor, wire, coil, or circuit section being tested.
7. Read the value on the digital display and record it with the correct unit, such as Ω or kΩ.
8. Remove the probes and switch off the instrument after use.

Safety note: Use only under trained supervision. Do not measure resistance on a live circuit, do not exceed the verified range, do not use damaged leads, and do not open the instrument while connected to any circuit.

Care & Maintenance

• Store the ohmmeter in a dry, dust-free laboratory cabinet after use.
• Inspect the display, leads, probes, terminals, and case before each practical session.
• Clean the outer body with a soft, dry cloth; avoid liquid cleaners unless approved.
• Arrange qualified service support for display faults, loose terminals, battery leakage, or calibration issues.

Why Choose Science Lab Supplies

Science Lab Supplies manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models. Its lab-meter and physics ranges support electrical measurement through ohmmeters, ammeters, voltmeters, galvanometers, multimeters, resistance boxes, and related circuit instruments. The brand supplies educational laboratory products for institutional, distributor, tender, and export requirements.

Frequently Asked Questions

What is a Digital Ohmmeter 20KΩ used for?

A Digital Ohmmeter 20KΩ is used to measure electrical resistance up to 20KΩ in school, college, physics, and electronics laboratory circuits.

What does 20KΩ mean?

20KΩ means the supplied product name states a resistance range of 20 kilo-ohms. Confirm the exact range steps and resolution from the final model datasheet.

Can it measure resistance in live circuits?

No. Resistance measurement should be done only on de-energized circuits or isolated components, following the supplied product instructions.

Is this ohmmeter suitable for school labs?

Yes. It is suitable for supervised school and college physics or electronics laboratories when used within the verified range and safety instructions.

Does it include test leads?

Included accessories are not confirmed. Add test leads, probes, battery, manual, or certificate details only after checking the final supply specification.

Is accuracy or calibration certificate included?

Accuracy and calibration details are not confirmed. Add resolution, tolerance, calibration, or certificate claims only after verifying the supplied documentation.
