Operational Amplifier Trainer DC Power Supply

Product Code : SCL-EAE-12037

The Operational Amplifier Trainer DC Power Supply is a self-contained electronic educational workstation used for analyzing linear integrated circuits in technical laboratories. Built for engineering students and electronics instructors, this trainer features an integrated dual-regulated power source to safely execute operational amplifier circuit experiments and explore analog computations.

Product Description

The Operational Amplifier Trainer DC Power Supply by Science Lab Supplies offers a comprehensive, highly reliable platform for investigating the behavior of operational amplifiers (op-amps). The system eliminates the need for external, multi-chassis bench power units by consolidating a multi-voltage stabilized DC power distribution system onto a single test board. Built inside a rugged, powder-coated steel housing with impact-resistant side treatments, this electronics workbench trainer provides long-term resilience against heavy classroom usage.

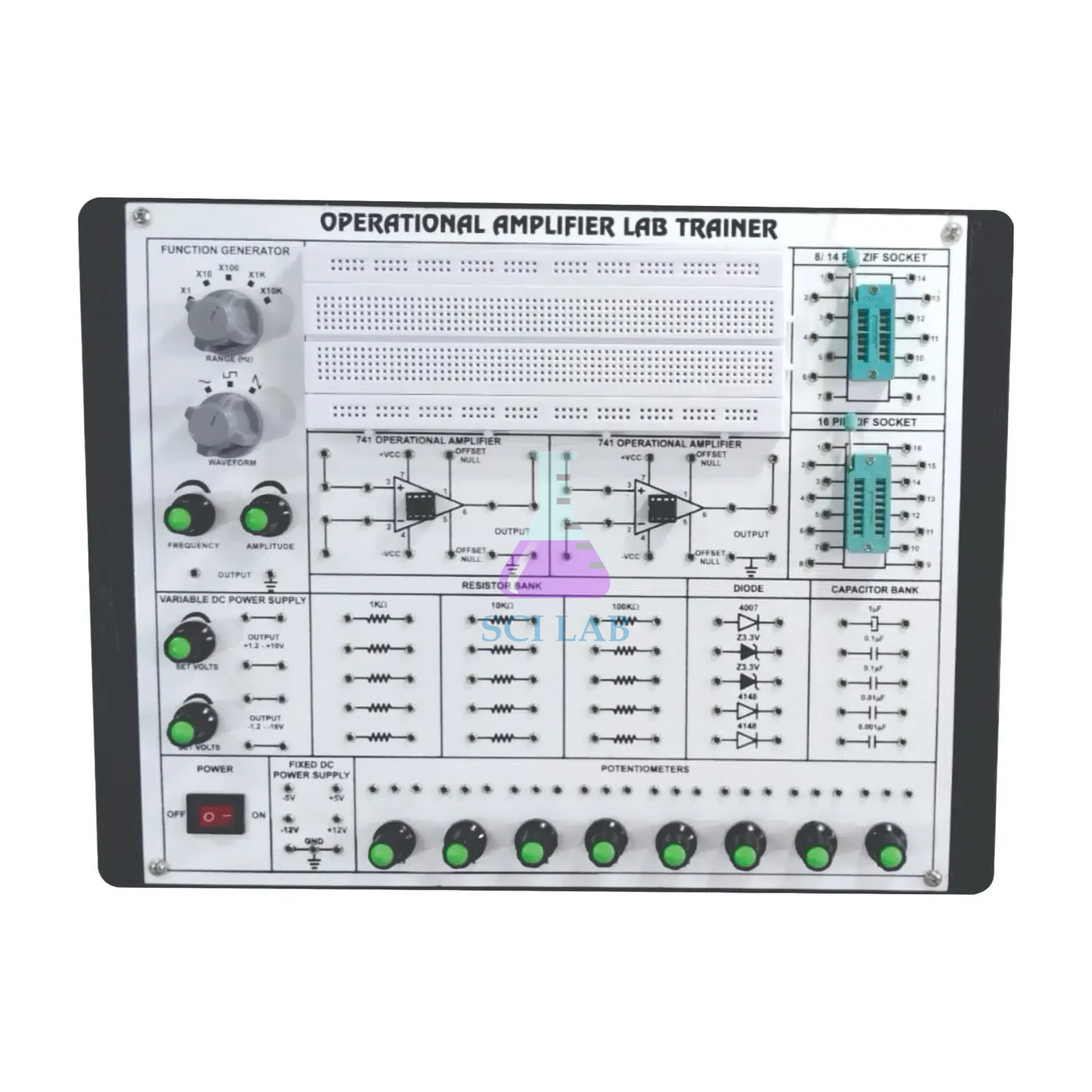

The front terminal panel features a high-grade glass epoxy printed circuit board (PCB) printed with clear block schematics of classic op-amp topologies. The layout incorporates embedded general-purpose operational amplifiers (such as the industry-standard 741 IC), distinct component arrays, multi-turn potentiometers, and heavy-duty 2mm or 4mm insulated socket terminals. This robust electronic configuration enables students to rapidly construct and analyze linear systems without damaging underlying tracking paths, making it a critical asset for modern engineering programs updating their scientific laboratory instruments.

Key Features

• Dual-Regulated Power Source: Contains a built-in, short-circuit-proof $\pm$15V DC power supply specifically optimized to drive analog linear ICs.
• Pre-Mounted Operational Amplifiers: Includes onboard industry-standard 741 operational amplifiers wired to accessible breakout terminals.
• Durable Steel Enclosure: Housed in a tough, ventilated metal chassis designed to survive institutional laboratory environments.
• Comprehensive Component Array: Equipped with multiple fixed resistors, capacitors, and variable trim pots for broad parameter testing.
• Clear Schematic Overlays: The high-contrast front graphic layer presents transparent circuit schematics to facilitate independent student use.
• Integrated Safety Overloads: Features auto-resetting thermal cutoffs to shield internal power tracks from accidental grounding mistakes.

Technical Specifications

What's Included in the Kit

• 1 x Operational Amplifier Trainer DC Power Supply main workstation unit
• 15 x Color-coded 4mm banana link patch cords (red, black, and blue pairs)
• 1 x Detachable 3-pin AC mains power cable
• 1 x Comprehensive English operations manual detailing wiring diagrams and lab tasks

Applications / Uses

• Analog Electronics Instruction: Ideal for demonstrating classic configurations such as inverting, non-inverting, summing, and differential amplifiers.
• Mathematical Computing Labs: Used to study physical analog calculators performing electronic differentiation and integration steps.
• Vocational Testing Workbenches: Provides an evaluation board for diagnosing signal conditioning and active filters.
• Advanced Science Curriculums: Complements structured higher-education experimental science kits.
• Technical Engineering Frameworks: Integrates perfectly alongside hardware setups like digital logic units and STEM models & kits.

How to Use the Operational Amplifier Trainer DC Power Supply

1. Position the electronics trainer flat on a clean, dry laboratory workbench.
2. Verify that the primary AC power toggle switch on the rear panel is shifted to the OFF position before connecting patch cords.
3. Construct a standard inverting amplifier loop by inserting the provided banana patch cords between the onboard resistors and the 741 IC nodes to satisfy the voltage gain calculation:

$$A_v = -\frac{R_f}{R_{in}}$$

1. Connect an external signal generator to the circuit input terminal and link an oscilloscope to the output test point.
2. Plug the AC cord into a grounded electrical wall outlet, toggle the main power switch to the ON position, and adjust your input signal frequency to observe amplification.

Handling Note: Always turn off the trainer console power switch before modifying patch cord placements to avoid introducing unintended voltage spikes to the delicate semiconductor components.

Care & Maintenance

• Socket Integrity: Use only the provided 4mm banana patch cords. Avoid forcing oversized probes into the terminal nodes to maintain stable contact spring tension.
• Enclosure Upkeep: Clean the metal chassis and terminal interface panel periodically using a soft, dry lint-free microfiber cloth. Do not apply liquid cleaning agents.
• Equipment Storage: Store the trainer inside a climate-controlled cabinet away from high humidity, extreme temperatures, and direct sunlight.

Why Choose Science Lab Supplies

Science Lab Supplies is an established international manufacturer and global exporter of high-precision laboratory instruments, vocational training modules, and robust didactic models. Following strict ISO 9001:2015 quality standards, we ensure that every analog workspace provides stable electrical performance and high anatomical accuracy. We supply academic and institutional buyers worldwide, providing full bulk logistics for technical universities, foundational physics apparatus, and early education mathematics kits.

Frequently Asked Questions

• Does this operational amplifier trainer require an external bench supply?

No, this unit is engineered with an integrated dual-regulated $\pm$15V DC power module that runs directly from standard 220V–240V AC wall lines.

• Can students interface external resistors and capacitors with this trainer board?

Yes, while the unit carries fixed onboard passive parts, external electrical components can be connected into the experiment loops via the open safety sockets.

• Are the integrated operational amplifiers socketed or soldered permanently?

The 741 ICs are seated within durable dual-in-line (DIP) IC sockets, enabling simple replacement in the event of an unexpected component failure.

• What type of experimental circuit setups can be configured on this trainer?

Students can readily set up inverting amplifiers, non-inverting amplifiers, voltage followers, summing networks, differentiators, and wave integrators.

• Is the integrated power supply protected against direct short circuits?

Yes, the onboard dual power rails feature active short-circuit and thermal overload safety limiters that safely power down the rails until the wiring fault is fixed.
