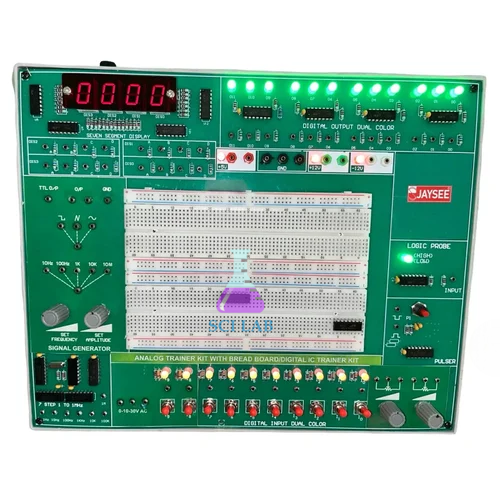

Analog & Digital IC trainer Board kit

Product Code : SCL-EAE-12054

The Analog & Digital IC Trainer Kit is an electronics laboratory training board used for practical experiments with TTL and CMOS integrated circuits, digital logic, signal generation, counters, flip-flops, and code converters. It is designed for students, teachers, technical institutes, engineering colleges, vocational centres, and electronics laboratories requiring structured hands-on circuit experimentation.

Product Description

The Analog & Digital IC Trainer Board Kit combines essential circuit-development and observation facilities on one laboratory platform. The verified configuration provides 10 TTL/CMOS-compatible logic inputs, input and output LED indicators, a multi-frequency signal generator, function generation, logic probing, a four-digit seven-segment display, and an on-board breadboard.

The trainer also incorporates built-in power supplies for circuit experiments, reducing dependence on multiple separate laboratory instruments for basic exercises. It is particularly relevant to practical learning alongside other Electronics Lab Equipment and Electrical and Electronics apparatus.

Key Features

• TTL and CMOS compatibility: Supports experiments involving commonly studied digital integrated-circuit families.
• 10 logic-level inputs: Provides 10 TTL/CMOS-compatible input points for practical circuit work.
• Visual input and output indication: Includes 10 dual-colour input LEDs and 10 output LED indicators.
• Wide fixed-frequency range: Provides 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, and 10 MHz signals.
• Multiple waveform generation: Supports sine, square, and triangular waveform generation.
• On-board breadboard: The 1280 tie-point breadboard enables solderless circuit assembly and modification.
• Logic testing facilities: Includes a logic probe and single-pulse generation facility.
• Integrated power resources: Provides +5 V, ±12 V DC and 0-10-30 VAC supplies in the verified configuration.

Technical Specifications

The detailed electrical facilities above are based on the verified matching reference configuration.

What's Included in the Kit

• 1 × Analog & Digital IC Trainer Board Kit main unit

The matching reference does not clearly specify a separate accessory list. ICs, patch cords, power cord, experiment manual, and other accessories should therefore be confirmed before ordering or publishing them as included components.

Applications / Uses

• Studying fundamental logic gates.
• Performing half-adder, full-adder, and parallel-adder experiments.
• Studying half subtractors and digital code conversions.
• Investigating different flip-flop configurations.
• Performing counter experiments, including binary up/down and Johnson counters.
• Studying oscillator circuits.
• Building prototype circuits on the solderless breadboard.
• Supporting practical training within programs.

How to Use the Analog & Digital IC Trainer Board Kit

1. Place the trainer on a clean, dry and stable laboratory bench.
2. Confirm the required circuit, IC pin configuration and permitted supply voltage.
3. Keep the power switched off while inserting ICs or changing circuit connections.
4. Assemble the required circuit using the on-board breadboard and available facilities.
5. Select suitable logic inputs, clock frequency or waveform according to the experiment.
6. Energize the trainer and observe input indicators, output LEDs, logic-probe response or display output.
7. Record the results and compare them with the theoretical truth table or expected circuit behaviour.
8. Switch off the trainer before removing components or altering connections.

Safety note: Incorrect IC orientation, supply polarity or operating voltage can damage semiconductor devices. Always verify the IC datasheet and circuit connections before applying power.

Care & Maintenance

• Keep the breadboard, sockets and connection points free from dust and conductive debris.
• Never insert or remove ICs while the trainer is powered.
• Handle integrated circuits with appropriate electrostatic-discharge precautions where applicable.
• Store the unit in a clean, dry environment and inspect connectors before practical sessions.

Why Choose Science Lab Supplies

Science Lab Supplies presents itself as a manufacturer, supplier and exporter of electronics, educational and engineering laboratory equipment. Its current product architecture includes dedicated ranges for electronics trainers, electrical apparatus and broader institutional laboratory equipment.

The company also serves schools, colleges, universities and technical institutions with multidisciplinary laboratory products. Buyers requiring complementary teaching apparatus can explore its broader range.

Frequently Asked Questions

What is an Analog & Digital IC Trainer Kit used for?

An Analog & Digital IC Trainer Kit is used for practical experiments with analog and digital electronic circuits, particularly TTL and CMOS integrated circuits. It helps learners build circuits, apply inputs, observe outputs and compare practical behaviour with theory.

Which digital IC families can be studied with this trainer?

The verified configuration is suitable for experiments involving TTL and CMOS ICs. The exact list of ICs supplied with the unit should be confirmed separately.

What experiments can students perform?

The trainer supports experiments involving logic gates, binary adders, half subtractors, code conversion, flip-flops, crystal oscillators, binary up/down counters and Johnson counters.

Does the trainer include a breadboard?

Yes. The verified configuration has an on-board 1280 tie-point breadboard for solderless circuit construction and modification.

What signal frequencies are available?

The matching configuration provides fixed signals at 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz and 10 MHz.

Does the trainer have built-in power supplies?

Yes. The verified configuration specifies +5 V and ±12 V DC supplies, together with a 0-10-30 VAC supply. Confirm the final supplied configuration before procurement.

For digital electronics experiments, circuit prototyping and practical IC training, explore the complete Electronics Lab Equipment range from Science Lab Supplies.
