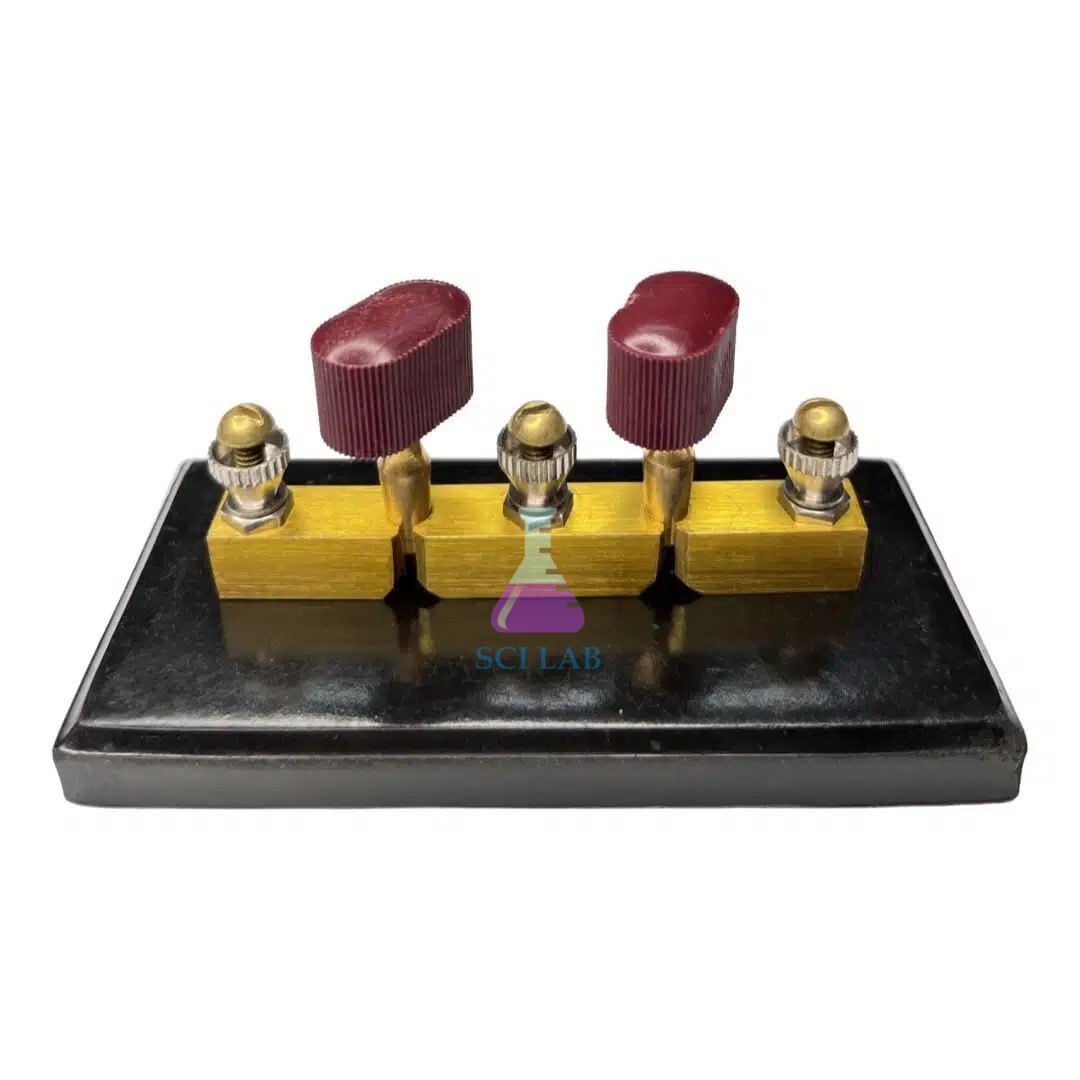

Brass Two Way Plug Key Switch

Product Code : SCL-EAE-12121

The Brass Two Way Plug Key Switch is a manually operated three-block laboratory switch used for routing electric current alternatively between two separate circuit branches in physics experiments. Designed for educators, students, and lab technicians, this apparatus ensures low contact resistance during electrical measurements and bridge calibrations.

Product Description

The Brass Two Way Plug Key Switch from Science Lab Supplies is engineered with three heavy-gauge, solid brass blocks arranged linearly. These thick blocks are secured firmly onto a heavy-duty, high-insulation polymer base plate to eliminate stray grounding or current leakage during tabletop laboratory operations. The configuration yields two distinct switching gaps sharing a common central junction block.

This multi-path switching component is an invaluable didactic tool for exploring advanced electromagnetism, circuit topologies, and calibration networks. By inserting the precision-ground brass plug into a chosen gap, users can divert current along one specific pathway while keeping the alternative branch fully isolated. It serves as an essential, high-durability instrument that integrates seamlessly into standard inventories worldwide.

Key Features

• Three-Block Brass Assembly: Features high-purity brass blocks that ensure optimum electrical conductivity and low structural resistance.
• High-Insulation Platform: Mounted on a robust, non-conductive base plate that completely isolates the electrical paths from workbenches.
• Tapered Contact Locking: Precision-ground plug and receptacle lugs guarantee zero mechanical play and maximize surface area contact.
• Insulated Plug Handle: Equipped with a knurled high-impact plastic handle for safe manual handling during active demonstrations.
• Two-Way Circuit Commutation: Dual-gap spacing permits multi-directional path switching and alternate current routing.
• Robust Terminal Blocks: Outfitted with three heavy brass binding posts that easily secure bare hookup wire or standard testing leads.

Technical Specifications

What's Included in the Kit

• 1 x Brass Two Way Plug Key Switch base assembly with three binding posts
• 1 x Precision-machined brass plug with a non-conductive handle
• 1 x Schematic guide sheet detailing alternative path wiring options

Applications / Uses

• Directing current alternatively through two different electrical pathways or experimental loops.
• Comparing the Electromotive Force (EMF) of two primary battery cells using standard potentiometer setups.
• Isolating protective resistance coils or high-sensitivity meters dynamically inside circuit matrices.
• Serving as a high-reliability mechanical toggle option inside customized student science kits.
• Configuring precision network paths inside standard educational electrical instruments layouts.

How to Use the Brass Two Way Plug Key Switch

1. Mount into Circuit: Wire the three terminal binding posts into your low-voltage DC layout using appropriate connecting leads.
2. Establish Common Input: Connect your primary incoming power lead to the central brass terminal block.
3. Connect Alternative Outputs: Wire the two separate output branches to the left and right outer binding posts.
4. Route the Current: Push the clean brass plug firmly into the left gap to complete the first branch loop. To divert the current vector, extract the plug and insert it into the right gap.
5. Isolate the System: Remove the plug completely from both gaps to break the electrical connections across both alternative channels simultaneously.

Safety Handling Note: Always ensure your primary power supply operates within low-voltage bounds (under 24V) to avoid point sparking, arcing, or accidental over-current across the bridge wires.

Care & Maintenance

• Keep Blocks Clean: Wipe the exposed brass surfaces regularly with a dry cloth or clean with a pencil eraser to dissolve residual oxide films.
• Dry Drawer Storage: Store the key inside a low-humidity cabinet alongside compatible laboratory instruments to optimize structural lifespan.
• Prevent Mismatching: Keep the original plug paired with its corresponding base assembly to preserve the precision-ground tapered contact quality.

Why Choose Science Lab Supplies

Science Lab Supplies is a premier manufacturer and global exporter of high-precision scientific laboratory instruments, STEM didactic setups, and mathematics kits. Drawing upon decades of specialized manufacturing experience, our production lines follow strict tolerance guidelines and material verification processes. We cater to university departments, high schools, and institutional distributors worldwide, providing uniform product parameters, robust build qualities, and optimized logistical execution for scalable global deliveries.

Frequently Asked Questions

What is the primary function of a Brass Two Way Plug Key Switch?

The primary function is to manually switch a single electrical path alternately between two separate outputs or loops by altering the position of a single tapered brass plug.

Why does this switch utilize three individual brass blocks?

The three brass blocks form two distinct gaps with a shared central terminal block, which creates the physical framework needed for alternative two-way pathway control.

Can this plug key switch handle regular 220V household mains electricity?

No, this device is engineered explicitly for low-voltage educational demonstrations up to 24V DC/AC and must never be wired to high-voltage mains power sources.

What is the structural benefit of a tapered brass plug?

The tapered profile ensures maximum surface area contact with the block walls when inserted, minimizing electrical contact resistance and preventing mechanical looseness.

How do I completely break all connections across both output paths?

Simply extract the brass plug entirely from both gaps on the base plate, which leaves both channels fully open and interrupts the electrical current.
