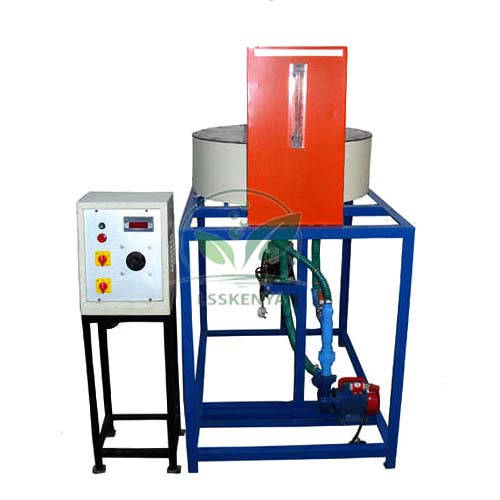

Cariollis Component of Acceleration
Product Code : LSK-TOMLE-10622
Cariollis Component of Acceleration (SKU LSK-TOMLE-10622), better known as the Coriolis component of acceleration apparatus, uses a hydraulic analogy to measure the Coriolis acceleration of a slider moving along a rotating link, as in a slider-crank mechanism. Water flowing out along two rotating tubes plays the part of the slider. It is a Theory of Machines practical for mechanical engineering degrees and diplomas. Science Lab Supplies manufactures the unit in Saha, Ambala, India and quotes buyers directly.
Specifications
A rotating block carries two opposed tubes, 9/6 mm diameter and 300 mm long, driven by a 0.5 HP swinging-field DC motor that doubles as a dynamometer for torque. A small monoblock pump circulates water from a fibreglass-lined tank, a rotameter reads flow, and a Perspex window shows the process.
| Parameter | Value |
|---|---|
| SKU | LSK-TOMLE-10622 |
| Rotating arms | 2 tubes in opposite directions, 9/6 mm dia, 300 mm long |
| Motor | Swinging-field DC, 0.5 HP, acts as dynamometer |
| Flow measurement | Rotameter |
| Pump | Small monoblock pump |
| Tank | Main tank with fibreglass lining |
| Control panel | Speed indicator, speed control unit, switches |
| Viewing | Perspex window on top cover |
| Frame | Rigid support frame |
| Services required | 230 V AC single-phase stabilised supply; floor space 1.5 x 1.5 m |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Coriolis Component of Acceleration Apparatus
The apparatus determines the Coriolis component of acceleration at different rotational speeds and water flow rates. Torque read from the swinging-field motor is compared with the value predicted from flow velocity and angular speed, turning a difficult kinematics topic into a measurable result.
- B.Tech/B.E. mechanical, Theory of Machines: Coriolis acceleration in slider-crank and quick-return mechanisms.
- Diploma mechanical engineering: effect of speed and flow on Coriolis torque.
- Vocational training equipment for TVET mechanical technology labs.
The spelling "Cariollis" is kept from the product listing; the standard term is Coriolis.
Standard Scope of Supply
Each unit comprises the rotating block with two tubes, the swinging-field DC motor, the monoblock pump, the fibreglass-lined main tank, the rotameter, the control panel with speed indicator, switches and speed control unit, and the rigid support frame with its Perspex-windowed top cover.
Packing, MOQ and Lead Time
One unit or a full theory of machines lab can be quoted, and each quotation lists the packing, delivery time and price for the quantity requested. Gyroscope, governor and balancing apparatus from this TVET lab equipment supplier can be added.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. Use the contact page or the enquiry cart to request a quotation; tender details are on the lab tender page.
Frequently Asked Questions
How does the apparatus model a slider-crank mechanism?
Water flowing outward along the rotating tubes behaves like a slider moving along a rotating link. The reaction torque on the swinging-field motor measures the resulting Coriolis effect.
What services does the Cariollis Component of Acceleration unit need?
A 230 V AC single-phase stabilised supply, a water fill for the main tank, and a floor space of about 1.5 x 1.5 m.
Is Science Lab Supplies the manufacturer or a trader?
The company is the manufacturer. This unit is built at the Science Lab Supplies factory in Saha, Ambala, India, and buyers get quotations straight from it.
Why does the motor act as a dynamometer?
A swinging-field motor is mounted so its casing can turn against a restraint. The reaction torque on the casing equals the torque driving the tubes, including the Coriolis contribution.
