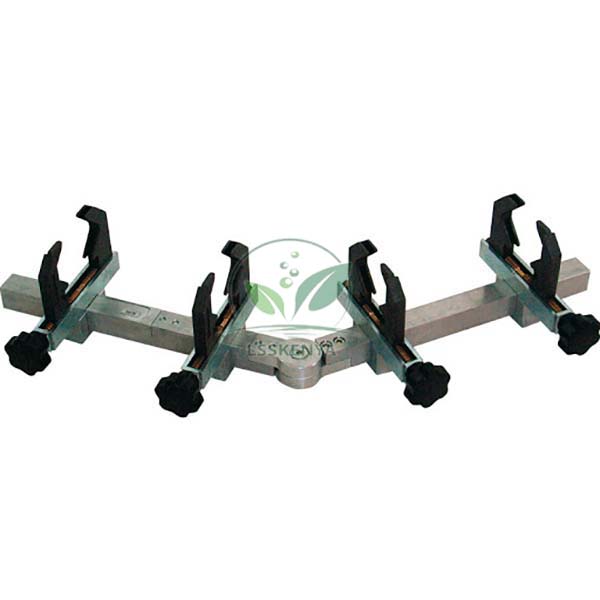

Pipe Welding Clamp
Product Code : LSK-SWES-10711
Pipe Welding Clamp (SKU LSK-SWES-10711) is a fixture that holds two pipe ends, or a pipe and a fitting, in line while they are tacked and welded. Its aluminium alloy frame carries four self-centering clamps and has fixed positions at 0, 45 and 90 degrees, and it is compatible with tapping tees. Science Lab Supplies supplies it from Ambala, India to welding schools, TVET workshops, colleges, tender contractors and distributors.
Specifications
The clamp is built on an aluminium alloy frame chosen for strength with low weight, so it can be carried to the bench or the pipe run. Four self-centering clamps align the work without adapters, and three fixed angle positions set straight, 45-degree and right-angle joints.
| Parameter | Value |
|---|---|
| SKU | LSK-SWES-10711 |
| Frame | Aluminium alloy, high strength and lightweight |
| Clamping | Four self-centering clamps |
| Fixed positions | 0, 45 and 90 degrees |
| Adapters | None needed |
| Compatibility | Tapping tees |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Pipe Welding Clamp
The clamp is used to set up pipe joints accurately before welding, so trainees can concentrate on the weld rather than on holding alignment. Its 0, 45 and 90 degree positions cover the straight butt, angled and right-angle branch joints that pipe-welding courses practise most often.
- ITI Welder trade: pipe butt joint fit-up and tack welding exercises.
- Pipe fitting and plumbing courses: aligning branch connections and tapping tees.
- TVET welding and fabrication modules: jig-based fit-up of angled joints.
Check that both pipe ends are cut square and deburred before clamping, and let the joint cool before releasing the clamps.
Standard Scope of Supply
The Pipe Welding Clamp is supplied as a single unit, as described above, with its four self-centering clamps on the aluminium alloy frame. No adapters are required, and any optional accessories you ask for are listed separately on the quotation.
Packing, MOQ and Lead Time
Ask for a quotation for one clamp or for a clamp at every welding booth in the workshop. The quotation states the packing, delivery time and price for that quantity, and pipe-cutting, bending or welding equipment from the same range can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Peru, Egypt, Iraq, Nigeria, Kenya and Ghana. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What angles can the clamp hold?
It has fixed positions at 0, 45 and 90 degrees, covering straight joints, 45-degree joints and right-angle branches.
Do I need adapters for different pipes?
No adapters are needed; the four self-centering clamps align the work. For the pipe diameter range, send your pipe sizes through the contact page before ordering.
Who supplies the Pipe Welding Clamp?
Science Lab Supplies supplies it from Ambala, India together with its welding machines, pipe-bending equipment and hand tools for training workshops.
Can it be included in a welding workshop tender?
Yes. List it with the other welding-set items in your enquiry and it will be quoted item-wise with this specification.
