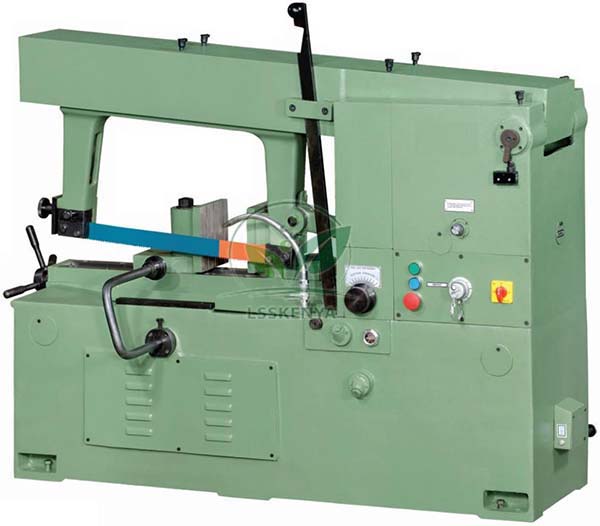

Power Hacksaw Machine
Product Code : LSK-SWES-10695
Power Hacksaw Machine (SKU LSK-SWES-10695) is a motor-driven reciprocating saw for cutting round, square and angled bar stock to length. It is offered in two sizes, with 0.75 kW and 1.5 kW main motors. Fabrication and fitting workshops in ITIs, polytechnics and TVET colleges use it to prepare stock for welding exercises. Science Lab Supplies supplies it from Ambala, India to institutes, tender contractors and distributors.
Specifications
The cutting arm moves hydraulically and lifts clear of the workpiece on the forward stroke to protect the blade and the job. A lever gives three cutting feeds to suit the material, a motorised coolant system keeps the cut smooth, and the arm lifts automatically when the cut is finished.
| Parameter | Value |
|---|---|
| SKU | LSK-SWES-10695 |
| Models | Two sizes (smaller / larger) |
| Cutting capacity, round | 200 / 300 (as listed) |
| Cutting capacity, square | 150 / 200 (as listed) |
| Cutting capacity at 45 degrees | 150 / 200 (as listed) |
| Length of stroke | 140 / 160 (as listed) |
| Strokes per minute | 80, 100 and 125 (both models) |
| Blade size | 400 x 32 x 1.6 / 525 x 45 x 2.25 (as listed) |
| Main motor | 0.75 kW / 1.5 kW |
| Features | Hydraulic arm, three-speed feed, motorised coolant, auto lift after cut |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Power Hacksaw Machine
The machine cuts bar, rod, pipe and sections to length before welding, fitting or machining, and shows trainees how feed, stroke rate and coolant affect a mechanical cut. It is standard stock-preparation equipment in ITI Fitter and Welder trades, diploma workshop practice and TVET fabrication modules.
- ITI Fitter and Welder trades: cutting stock to length for job exercises.
- Diploma and B.Tech workshop practice: demonstrating power sawing in the machine shop.
- TVET fabrication modules: preparing square and mitred (45 degree) cuts for frames.
Clamp the job firmly, keep hands clear of the moving blade, and have trainees wear eye protection and work under supervision.
Standard Scope of Supply
The Power Hacksaw Machine is supplied as a single machine in the size you select, with the hydraulic arm and motorised coolant system described above; any optional accessories are listed on the quotation. Spare blades and cutting coolant are consumables and are quoted separately.
Packing, MOQ and Lead Time
Ask for one machine or several for a larger TVET workshop equipment order; the Science Lab Supplies quotation sets out packing, delivery time and price for the model and quantity. Hand tools from the same range can go on one quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What is the difference between the two models?
The smaller lists 200 round and 150 square capacity, 0.75 kW and a 400 x 32 x 1.6 blade; the larger 300 and 200, 1.5 kW and a 525 x 45 x 2.25 blade.
Can it make angled cuts?
Yes. The capacity at 45 degrees is listed as 150 on the smaller model and 200 on the larger, which suits mitred joints for welded frames.
Who supplies the Power Hacksaw Machine?
Science Lab Supplies supplies it from Ambala, India to ITIs, polytechnics, TVET colleges, contractors and distributors, quoting the model and quantity you specify.
Why does the arm lift on the forward stroke?
A hacksaw blade cuts on one stroke only. Lifting the arm on the idle stroke stops the teeth dragging, which protects the blade and the surface of the workpiece.
Related Workshop Cutting and Fabrication Tools
Stock cut on the power hacksaw is usually cleaned, bent or welded next. These four items from the same range cover hand sawing, deburring, pipe bending and manual shearing, so a complete cutting and forming bench can be quoted together.
- Hacksaw Frame — hand sawing of small sections.
- Flat File — deburring cut ends.
- Hydraulic Pipe Bending Machine — bending pipe after cutting to length.
- Manual Hand Shear — lever cutting of flat bar and rod.
