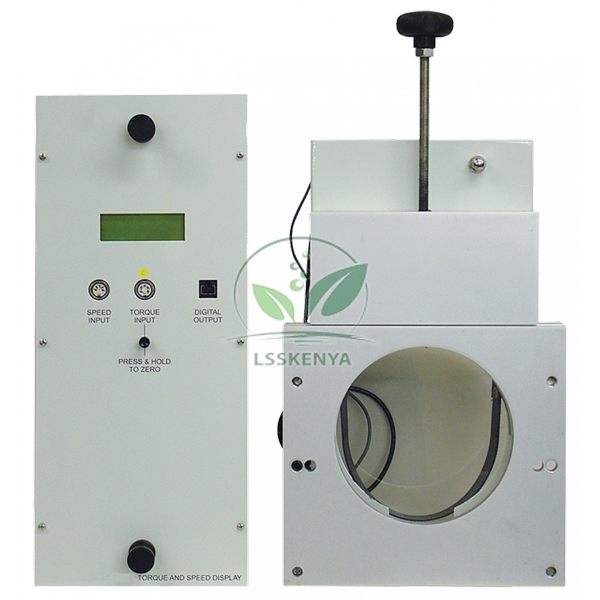

Turbine Dynamometer
Product Code : LSK-FM-10476
Turbine Dynamometer (SKU LSK-FM-10476) is the loading and measuring unit needed to test the optional turbines of the Modular Fluid Power range. Fitted to the Centrifugal Pump Module, it applies a band brake to the turbine and displays speed, torque and shaft power. Hydraulic machines labs in mechanical and civil engineering use it for turbine performance tests. It is manufactured by Science Lab Supplies in Saha, Ambala, India, at Plot 448, HSIIDC Industrial Area, for direct supply to colleges, contractors and distributors.
Specifications
The dynamometer mounts on the Centrifugal Pump Module near the outlet end of the pump. Each optional turbine carries a brake drum that fits inside the dynamometer, and a control on the unit tightens a band brake around it, while the built-in instrumentation measures and displays the resulting speed, torque and shaft power.
| Parameter | Value |
|---|---|
| SKU | LSK-FM-10476 |
| Loading method | Adjustable band brake acting on the turbine's brake drum |
| Measured and displayed | Speed, torque and shaft power |
| Mounting | On the Centrifugal Pump Module, near the pump outlet |
| Compatible turbines | Any of the three optional turbines |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Turbine Dynamometer
With the pump forcing water through a turbine, students increase the brake load in steps and record speed, torque and shaft power at each setting. The results give turbine power and efficiency curves, a core part of hydraulic machines practicals in B.Tech/B.E. mechanical and civil engineering and diploma mechanical courses.
- Torque and shaft power against speed for a Pelton wheel.
- Performance of a propeller turbine at different guide vane settings.
- Comparing impulse and reaction turbines on one test stand.
- Turbine efficiency using inlet pressure and flow measured on the pump module.
Standard Scope of Supply
The Turbine Dynamometer is supplied as a single unit with its band brake, load control and speed, torque and power instrumentation. The Centrifugal Pump Module it mounts on and the three optional turbines are separate items, and the turbines each come with the brake drum that fits the dynamometer.
Packing, MOQ and Lead Time
Request a quotation for the dynamometer alone or together with the pump module and turbines; you will receive packing, delivery time and price for the exact list. Laboratories comparing test and measurement instruments in India can have the full turbine bench priced at once.
Science Lab Supplies has registered with an Importer-Exporter Code and can ship to buyers in Tanzania, Uganda, the UAE, Saudi Arabia, Oman and the Philippines. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Enquiries go through the contact page or enquiry cart; the lab tender page supports public tenders.
Frequently Asked Questions
Do I need the Turbine Dynamometer to test the turbines?
Yes. The dynamometer is required for tests on the optional turbines, because it provides the brake load and measures the speed, torque and shaft power they deliver.
How is the turbine loaded?
Each turbine has a brake drum that sits inside the dynamometer. A control on the unit adjusts a band brake around the drum, increasing the load on the turbine.
What else is needed to run it?
The Centrifugal Pump Module supplies the water: its outlet connects to the turbine, and the dynamometer mounts on the module near the pump's outlet end.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies makes the Turbine Dynamometer itself at its factory in Saha, Ambala, India, and quotes direct from there.
Related Turbine Test Equipment
These four items complete a turbine test bench around the dynamometer: the pump module that supplies the water, two of the optional turbines it loads, and a separate bench-fed Pelton turbine with its own mechanical brake for simpler class demonstrations.
- Centrifugal Pump Module — trolley-mounted pump that powers the turbines.
- Pelton Wheel (turbine) — impulse turbine with paired buckets.
- Propeller Turbine — fixed-blade reaction turbine with adjustable guide vanes.
- Pelton Turbine — hydraulic-bench Pelton wheel with brake and spring balance.
