Salient Pole Generator
Product Code : LSK-EPS-10521

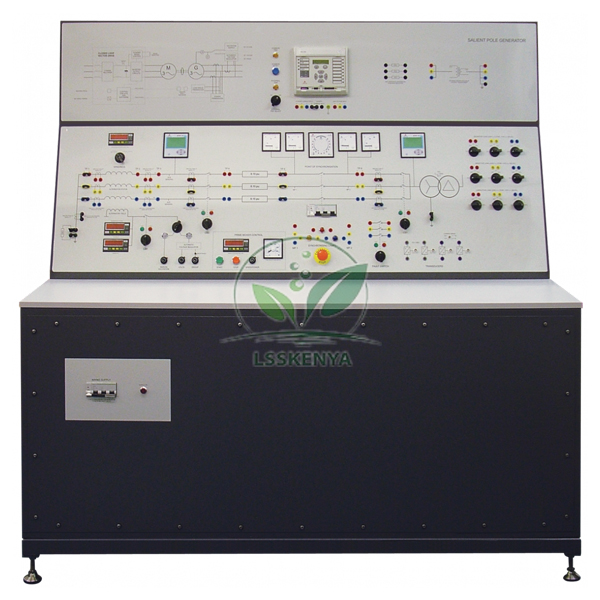

Salient Pole Generator (SKU LSK-EPS-10521) is a console-based trainer for exploring the principles and characteristics of salient pole generators, including synchronising to the grid, load angle, reactive power control and generator protection. It is aimed at electrical machines and power systems labs in B.Tech/B.E. programmes and suits lecturer-designed experiments and student projects. Science Lab Supplies, based in Ambala, India, can quote it for universities, engineering colleges, tender contractors and distributors.
Specifications
The table records every salient pole generator feature on its own row. In short, a prime mover and generator share a bed-plate in the console base, a vector drive allows load flow in both directions, a shaft encoder gives load angle, and excitation is manual or by automatic voltage regulation.
| Specification | Value |
|---|---|
| SKU | LSK-EPS-10521 |
| Machine set | Prime mover and generator, two coupled machines on a common bed-plate in the console base |
| Machine characteristics | Similar to industrial turbine and generator sets |
| Excitation | Manual or automatic voltage regulation |
| Prime mover speed | Vector drive |
| Load flow | Positive and negative directions |
| Reverse power | Dissipated by resistors in overrun mode |
| Load angle | Integral shaft encoder |
| Load banks | Resistive, capacitive and inductive |
| Synchronising | Synchroscope, or a set of three coloured lamps |
| Reactive power control | Variable quadrature droop when synchronised |
| Relay inputs | Current transformers (CTs) and a voltage transformer (VT) |
| Relay functions | Line and earth current, voltage and frequency faults; fault event recording |
| Relay setting | Local control panel or computer link (software included, computer not included) |
| Operating modes | Control and protection work unsynchronised and synchronised |
| Circuit-breakers | Hand-operated switches and open/closed lamps |
| Waveform outputs | Transducers with BNC connections for an external oscilloscope (not supplied) |
| Spare relay socket | For an additional protection relay (available separately) |
| Leads | Set of shrouded leads |
| Safety | Emergency switch, mains isolator, protection fuses |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Salient Pole Generator
With the trainer, students can run the generator alone on its load banks, then synchronise it to the mains and study real and reactive power flow, load angle and protection, on a machine set whose characteristics resemble industrial turbine and generator sets.
- B.Tech electrical machines lab: load characteristics of a salient pole generator; visible load steps can also be shown with the Electrical Lamp Load Bank 2.5 kW.
- Synchronising by synchroscope and by the three-lamp method.
- Load angle measurement with the shaft encoder, with load flow in both directions.
- Reactive power regulation using variable quadrature droop.
- Generator protection: line, earth, voltage and frequency faults; relay discrimination is covered on the Protection Relay Test Set.
It runs at mains voltages with rotating machinery; operate it only under trained supervision.
Standard Scope of Supply
The trainer includes the machine set, drive, excitation controls, load banks, protection relay with software, circuit-breakers with lamps and hand switches, BNC waveform transducers and shrouded leads. Not supplied: an oscilloscope, the computer for relay programming, and the additional relay for the spare socket.
Packing, MOQ and Lead Time
We can quote one trainer or several for a machines laboratory with multiple bays. Each quotation lists packing, delivery time and price for the quantity requested, and an optional relay or other power systems items can be quoted with it.
As a holder of an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Uganda, the UAE, Saudi Arabia, Oman, the Philippines and Nepal. Generator trainer enquiries can be sent through the enquiry cart or the contact page, and tender submissions are explained on the lab tender page.
Frequently Asked Questions
Does it work only when synchronised to the mains?
No. The control and protection circuits work both when the generator runs unsynchronised on its own loads and when it is synchronised to the mains supply.
How are waveforms displayed?
Transducers with BNC connections send voltage and current signals to an external oscilloscope for display and analysis. The oscilloscope is not supplied and is arranged separately.
Who supplies the Salient Pole Generator?
It is quoted by Science Lab Supplies of Ambala, India, and can share one quotation with load banks, relays and other electrical power system trainers for a machines laboratory.
What happens to reverse power when the generator overruns?
When the generator is in overrun mode, resistors dissipate the reverse power, so students can investigate load flow in both positive and negative directions under vector drive control.
