Resistive Load Bank 240V AC

Product Code : SCL-EAE-12042

The Resistive Load Bank 240V AC is a stationary power system simulation apparatus used for testing generators, inverters, and electrical circuits under varying load conditions in technical educational environments. Engineered for electrical engineering students and laboratory technicians, this benchtop device provides an adjustable, real-power electrical load to safely analyze power factor, current draw, and voltage stability.

Product Description

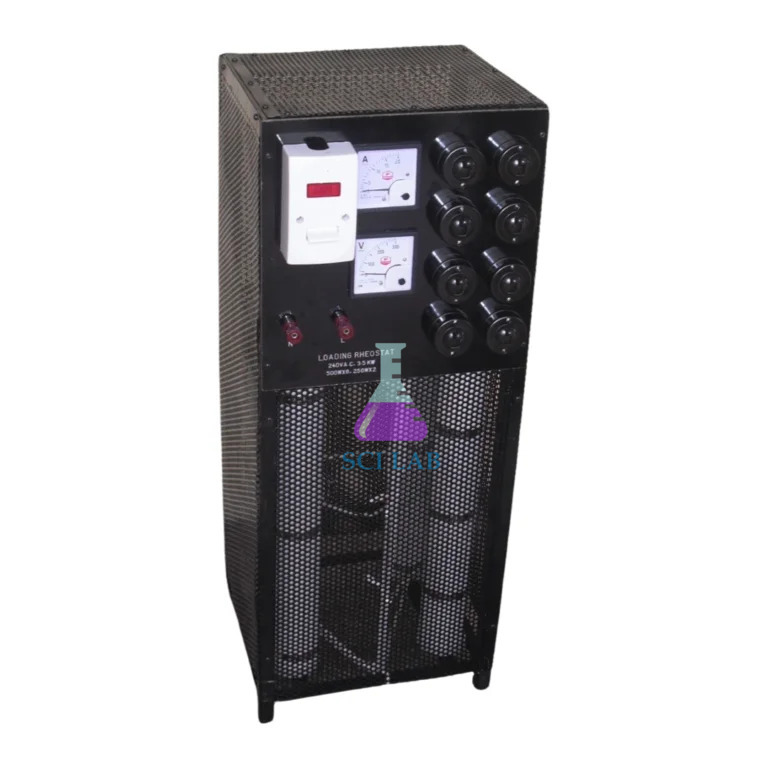

The Resistive Load Bank 240V AC by Science Lab Supplies offers a highly reliable, robust platform for conducting advanced power system experiments. This laboratory load bank consists of an array of heavy-duty, industrial-grade wire-wound or ceramic-encased resistors housed inside a thoroughly ventilated sheet metal enclosure. This durable chassis is protected with an anti-corrosive powder coating, ensuring long-term structural integrity and resistance to thermal stress under prolonged loading cycles.

The system features a user-friendly control interface equipped with safety toggle switches or rotary selectors that allow discrete load step adjustment. To safeguard both the equipment and the users, the unit integrates a built-in forced-air cooling fan and independent over-temperature trip circuits. This compact and high-performance bench apparatus eliminates the hazards of improvised testing rigs, making it an indispensable asset for institutions modernizing their inventory of premium scientific laboratory instruments.

Key Features

• Adjustable Load Step Resolution: Features multiple toggle switches providing precise incremental control over the total current draw.
• Forced-Air Ventilation System: Equipped with an internal cooling fan to dissipate heat rapidly and maintain safe thermal levels.
• Industrial-Grade Build: Housed in a heavy-gauge, powder-coated steel casing engineered for intensive university lab environments.
• Comprehensive Over-Temperature Protection: Integrates a thermal overload circuit breaker that auto-trips if internal temperatures exceed safety margins.
• High-Contrast Control Panel: Clearly printed front panel graphics illustrate load paths and switch values to aid independent student operation.
• Insulated Safety Terminals: Outfitted with shrouded 4mm safety sockets or heavy-duty binding posts to guarantee reliable electrical insulation.

Technical Specifications

What's Included in the Kit

• 1 x Resistive Load Bank 240V AC primary test enclosure
• 1 x Heavy-duty AC mains input power cord
• 4 x High-current insulated patch cords with 4mm safety connectors
• 1 x Comprehensive English operational manual with sample calculations and lab experiment setups

Applications / Uses

• Alternator and Generator Testing: Allows students to apply real-power loads to small educational generator units to study voltage regulation.
• Inverter Performance Profiling: Used to analyze the efficiency and thermal behavior of single-phase solar or backup AC inverters.
• Ohm's Law and Power Relations: Provides a physical platform to quantify power dissipation using the equation:

$$P = \frac{V^2}{R}$$

• Curriculum-Aligned Engineering Training: Functions as a core module for testing microgrid control logic within advanced engineering science kits.

How to Use the Resistive Load Bank 240V AC

1. Place the load bank apparatus onto a clear, level, and heat-resistant laboratory workbench.
2. Ensure all load control toggle switches on the front panel are flipped to the OFF position prior to linking power.
3. Connect the AC power output from your test source (e.g., a variable transformer or generator) to the load bank's input terminals using high-current patch cords.
4. Energize your external source to 240V AC, verify that the internal forced-air cooling fan activates immediately, and flip the first load switch to apply the initial resistive step.
5. Record the voltage drop and subsequent current indicators on external bench meters to calculate power absorption values.

Safety Note: Do not block the intake or exhaust ventilation grilles during operation. The enclosure surface can become warm under high power dissipation; avoid touching the metal chassis until the cooling fan has run post-test.

Care & Maintenance

• Ventilation Check: Regularly inspect the intake and exhaust grilles to ensure they remain clear of dust, debris, or papers that could disrupt airflow.
• Cool-Down Cycle: Always allow the internal forced-air fan to run for 3 to 5 minutes after turning off the load switches before completely disconnecting the main input power line.
• Storage Environment: Keep the apparatus inside a dry, clean cabinet free of corrosive moisture, industrial chemicals, or airborne metallic particles.

Why Choose Science Lab Supplies

Science Lab Supplies is an established international manufacturer and global exporter of high-precision scientific laboratory instruments, educational trainers, and professional didactic models. Utilizing strict ISO 9001:2015 quality management systems, we ensure that our hardware provides exceptional durability, accurate calibrations, and comprehensive safety protections. We proudly support global vocational schools, polytechnics, and engineering universities with durable, customized inventory solutions and robust worldwide supply logistics.

Frequently Asked Questions

• Can this load bank be used for DC voltage testing?

While optimized for 240V AC single-phase applications, the purely resistive wire-wound elements can safely accept equivalent continuous DC voltages up to the rated power thresholds.

• What happens if the load bank overheats during a lab session?

The unit integrates a safety thermal cutoff circuit that automatically disconnects the internal resistor grid if the core temperature surpasses safe operating limits.

• Does the forced-air cooling fan run on an independent power loop?

The internal axial cooling fan is automatically energized directly by the primary 240V AC input line to ensure continuous airflow whenever the unit is operational.

• What is the maximum power handling capacity of this apparatus?

This specific laboratory model is engineered to handle a maximum power capacity of 3 kW (3000 Watts) safely under continuous single-phase operating conditions.

• Are the individual load steps customizable?

Yes, the front panel features a combination of independent toggle switches that allow students to combine steps and achieve varied incremental load resolutions.

Explore our complete online catalog to discover more power system equipment, or contact our engineering division today to add this premium Resistive Load Bank 240V AC to your department's inventory of professional lab experiment setups.
