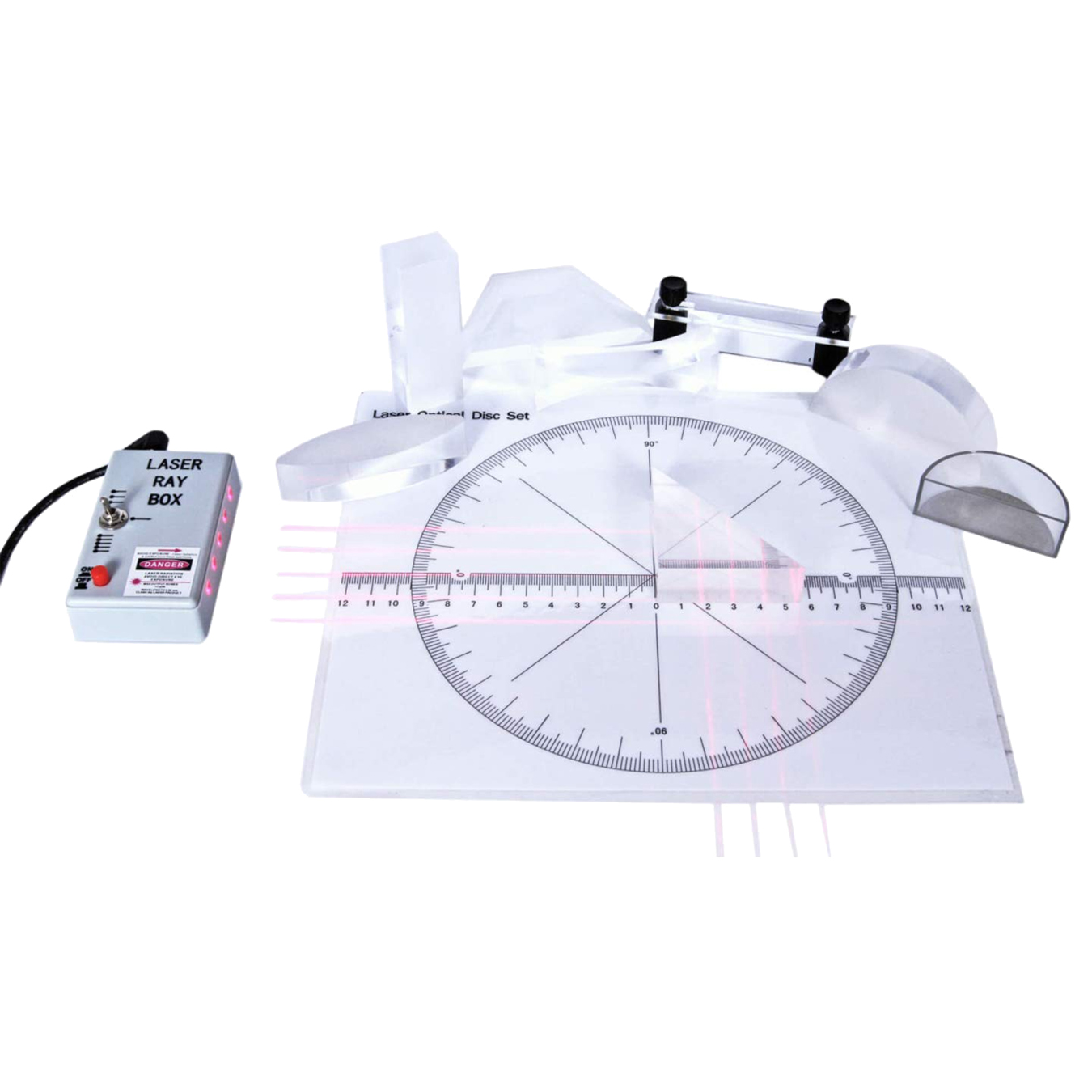

Ray Box and Lens Set
Product Code : SCL-PL-12384
Ray Box and Lens Set (SKU SCL-PL-12384) is a kit for tracing reflection and refraction on a magnetic board with a red laser ray source, lenses, blocks and a mirror, for school optics practicals and first-year college ray optics. Science Lab Supplies manufactures the set in-house at its factory on Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and supplies schools, colleges, tender contractors and distributors.
Specifications
The ray source is a red laser of less than 1 mW at 650 nm, powered through an AC adapter. Its beam is traced on a 310 × 210 mm magnetic board printed with scales, angles and ray diagrams, where the optical pieces are placed.
| Parameter | Value |
|---|---|
| SKU | SCL-PL-12384 |
| Ray source | Red laser, <1 mW, 650 nm |
| Power | AC adapter |
| Lenses | Concave, convex and semicircular |
| Blocks | Parallel-sided block; rectangular block |
| Other optics | Mirror, prism table, hollow semicircular refraction cell |
| Work surface | Magnetic board 310 × 210 mm with scales, angles and ray diagrams |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Ray Box and Lens Set
The set is used to trace rays through lenses, blocks and a mirror so students can measure angles of incidence, reflection and refraction directly on the printed board. It covers the light chapters of Class 10 science and Class 12 physics and is compact optics lab equipment for schools.
- Class 10 science: laws of reflection, and refraction through a rectangular block.
- Converging and diverging rays through the convex and concave lenses.
- Class 12 physics: refractive index and total internal reflection with the semicircular lens.
Although the laser is rated below 1 mW, students should never look into the beam or aim it at anyone’s eyes.
Standard Scope of Supply
Each set contains the red laser ray source with AC adapter, concave, convex and semicircular lenses, a parallel-sided block, a rectangular block, a hollow semicircular refraction cell, a mirror, a prism table and the 310 × 210 mm magnetic board.
Packing, MOQ and Lead Time
One set for demonstration, or a set per student group for a full optics practical, can be quoted on request. The quotation states packing, delivery time and price for your chosen quantity, and other school physics lab equipment in India can be added before it is issued.
With an Importer-Exporter Code in place, Science Lab Supplies is able to ship to buyers in Egypt, Iraq, Nigeria, Kenya, Ghana and Ethiopia. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). For a price, use the enquiry cart or the contact page; institutional buyers will find tender details on the lab tender page.
Frequently Asked Questions
What light source does the ray box use?
A red laser ray source of less than 1 mW at 650 nm, powered by an AC adapter. The narrow beam makes each ray and angle easy to read on the printed board.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the maker of this set, not a reseller. It is produced at the company’s factory in Saha, Ambala, India, and buyers get their quotation directly from the manufacturing unit.
How does this set differ from the Laser Refraction Chamber Set?
This set uses a 310 × 210 mm magnetic board with lenses, blocks and a refraction cell. The Laser Refraction Chamber Set is a self-contained unit with a built-in laser, four prisms, two mirrors and a beam splitter.
Related Optics Lab Equipment
The four items below work well beside the ray box in a light practical, adding a laser refraction unit, a filament-lamp ray box with slit masks, a curved mirror for image formation and filters for colour experiments, all on one quotation.
- Laser Refraction Chamber Set — self-contained unit with a built-in laser and prisms.
- Raybox with Accessories — 12 V line-filament ray box with slit masks.
- Concave Mirror — 50 mm glass mirror for image-formation work.
- Color Filter Set — six primary and secondary colour filters.
