Operational Amplifier Trainer Power Supply

Product Code : SCL-EAE-12055

The Operational Amplifier Trainer Power Supply is an educational electronics trainer used for studying operational amplifier circuits, IC 741 applications, analog signal processing, and amplifier configurations through practical experiments. It is designed for students, teachers, engineering colleges, technical institutes, vocational centres, and electronics laboratories requiring hands-on study of op-amp principles.

Product Description

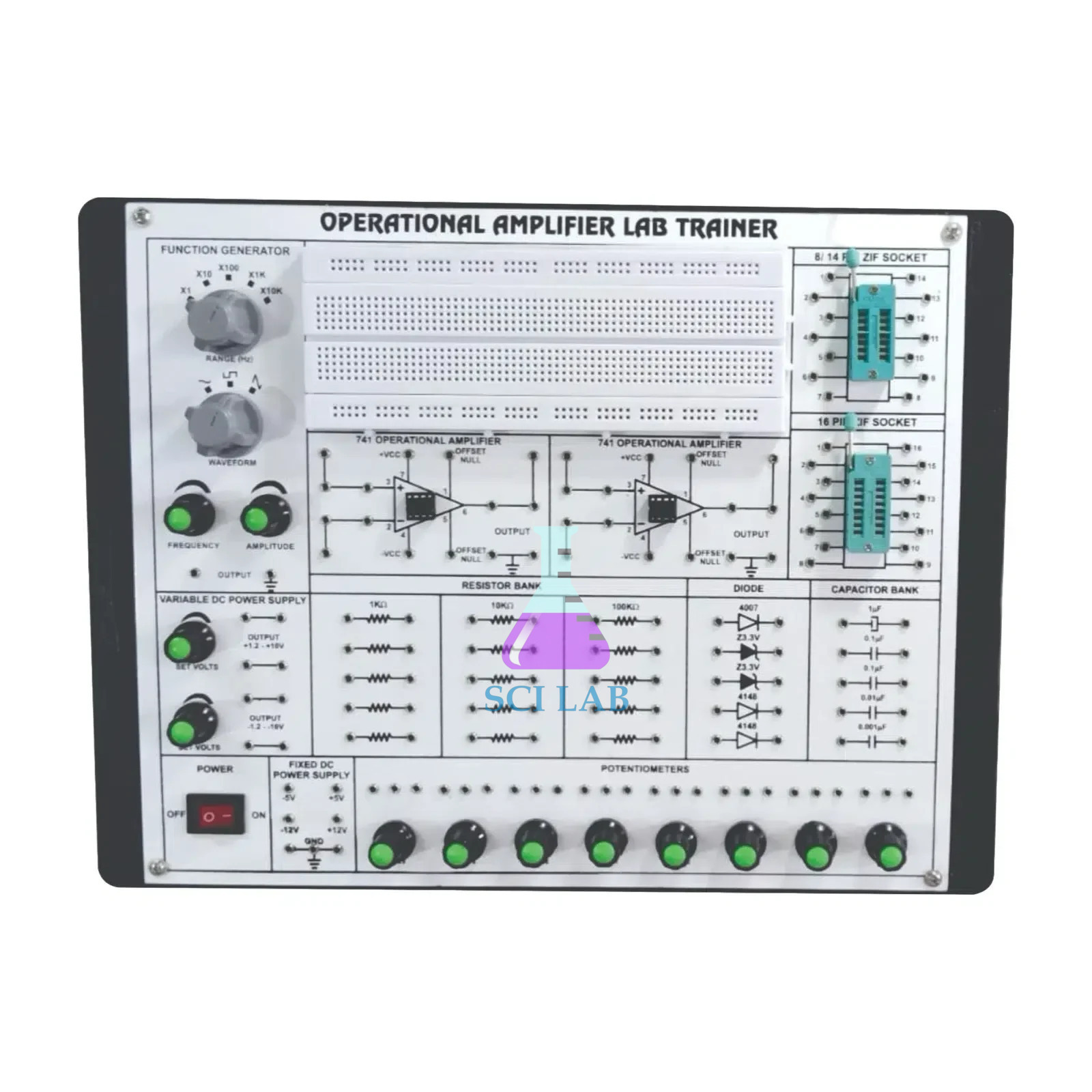

The Operational Amplifier Trainer combines regulated power supplies, an on-board function generator, IC 741 operational amplifiers, circuit components, ZIF sockets, and connection terminals in one laboratory platform. The verified configuration provides fixed ±5 V DC and ±12 V DC at 250 mA, together with a variable 1.2–10 V DC at 250 mA supply.

The trainer supports practical investigation of inverting and non-inverting amplifiers, comparators, adders, subtractors, integrators, differentiators, waveform generators, and converter circuits. It complements other Electronics Lab Equipment and Electrical and Electronics apparatus used for analog electronics education.

Key Features

• Multiple regulated DC supplies: Provides fixed ±5 V DC, fixed ±12 V DC at 250 mA, and variable 1.2–10 V DC at 250 mA.
• 100 kHz function generator: Generates sine, square, and triangular waveforms for circuit experiments.
• Two IC 741 operational amplifiers: All pins are terminated through 2 mm banana sockets for convenient experimental connections.
• Two ZIF sockets: Includes 14-pin and 16-pin sockets for practical circuit development.
• Built-in component banks: Provides resistors, capacitors, diodes, Zener diode, and potentiometers for multiple experiments.
• Practical connection system: Uses 2 mm brass sockets and compatible patch cords.
• More than 12 experiment possibilities: Supports a broad range of fundamental operational-amplifier applications.
• Laboratory-oriented enclosure: The verified reference configuration uses an ABS plastic cabinet.

Technical Specifications

What's Included in the Kit

• 1 × Operational Amplifier Trainer Power Supply main unit
• 2 mm patch cords
• User manual

Optional measuring equipment such as a digital multimeter or oscilloscope should be confirmed separately and is not assumed to be part of the standard kit.

Applications / Uses

• Inverting and non-inverting amplifier experiments.
• Buffer and comparator circuit studies.
• Adder and subtractor experiments.
• Integrator and differentiator circuit analysis.
• High-pass and low-pass filter demonstrations.
• Square-wave generator experiments.
• Logarithmic amplifier studies.
• Voltage-controlled current source experiments.
• Current-controlled voltage source experiments.
• Practical analog electronics training within Engineering Laboratory Equipment programs.

How to Use the Operational Amplifier Trainer Power Supply

1. Place the trainer on a clean, dry, and stable laboratory bench.
2. Select the required operational-amplifier experiment and review its circuit diagram.
3. Keep the trainer switched off while making connections.
4. Use the 2 mm patch cords to construct the required circuit.
5. Select the appropriate fixed or variable DC supply for the experiment.
6. Apply a waveform from the on-board function generator when required.
7. Switch on the trainer and measure the relevant input and output parameters.
8. Compare practical readings or waveforms with theoretical calculations.
9. Switch off the equipment before changing connections or removing components.

Safety note: Always verify IC orientation, supply polarity, voltage level, and circuit connections before energising the trainer.

Care & Maintenance

• Keep sockets, patch cords, and the front panel clean and dry.
• Never insert or remove ICs while power is applied.
• Avoid exceeding the specified supply ratings or applying incorrect polarity.
• Store the trainer in a dry, dust-free environment after use.

Why Choose Science Lab Supplies

Science Lab Supplies states that it has been involved in laboratory and scientific equipment since 1986. The company manufactures, supplies, and exports educational, physics, electronics, engineering, and multidisciplinary laboratory equipment for schools, colleges, universities, technical institutes, and other institutional users.

Its broader portfolio also includes, enabling buyers to source related teaching and practical-training apparatus from complementary product categories.

Frequently Asked Questions

What is an Operational Amplifier Trainer used for?

An Operational Amplifier Trainer is used to perform practical experiments with op-amp circuits. Typical studies include amplifiers, comparators, adders, subtractors, integrators, differentiators, filters, and signal-generation circuits.

Which operational amplifier IC is included?

The verified reference configuration includes two IC 741 operational amplifiers, with their pins terminated through 2 mm banana sockets.

What power supplies are built into the trainer?

The verified configuration provides fixed ±5 V DC and ±12 V DC at 250 mA, plus a variable 1.2–10 V DC supply at 250 mA.

Does the trainer include a function generator?

Yes. The verified configuration incorporates an on-board function generator operating up to 100 kHz with sine, square, and triangular waveform outputs.

How many experiments can be performed?

The matching reference configuration is designed to support more than 12 experiments, including inverting amplifiers, comparators, adders, integrators, differentiators, filters, and converter circuits.

Are a multimeter and oscilloscope included?

No. The verified reference lists a digital multimeter and CRO as optional accessories rather than standard included components.

For practical op-amp, analog circuit, signal-processing, and electronics experiments, explore the complete range from Science Lab Supplies.
