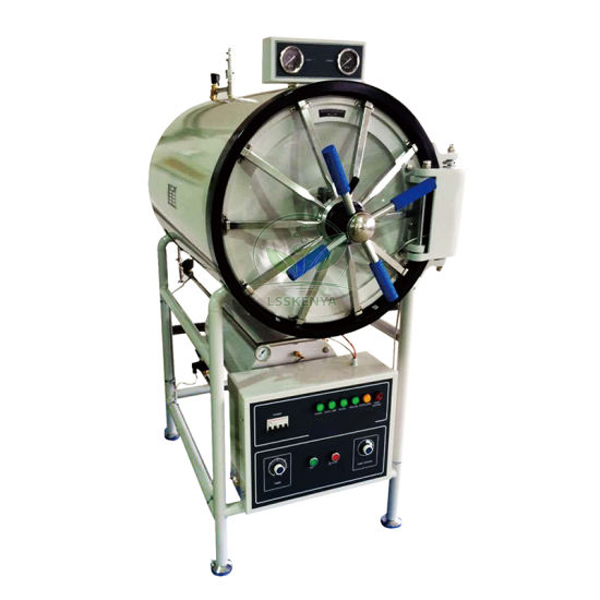

Horizontal Cylindrical Pressure Autoclave
Product Code : LSK-A-11377
Horizontal Cylindrical Pressure Autoclave (SKU LSK-A-11377) is a large horizontal steam sterilizer with a cylindrical 304 stainless steel chamber, an automatic sterilisation process, a drying function and interlock, offered in five sizes from 150 L to 500 L. It works at 0.22 MPa and up to 134 °C. Science Lab Supplies prepares quotations for this autoclave in Ambala, India, and organises shipment to institutions, distributors and tender contractors.
Specifications
Five chamber sizes of the cylindrical pressure autoclave are compared in the table. In short, each has a temperature range of 40–134 °C with accuracy within ±2 °C, sterilisation and drying timers of 0–60 min each, a water level sensor with automatic power cut-off and over-temperature and over-pressure protection.
| Specification | Value |
|---|---|
| SKU | LSK-A-11377 |
| Type | Horizontal cylindrical steam pressure autoclave |
| Capacity options | 150 L, 200 L, 280 L, 400 L, 500 L |
| Chamber size | Ø440 x 1000; Ø515 x 1000; Ø600 x 1000; Ø700 x 1100; Ø700 x 1300 mm |
| Chamber material | 304 stainless steel |
| Working pressure | 0.22 MPa |
| Working temperature | 134 °C |
| Temperature range | 40–134 °C |
| Temperature accuracy | ≤±2 °C |
| Sterilisation time | 0–60 min |
| Drying time | 0–60 min |
| Process | Automatic sterilisation process with drying function |
| Interlock | Interlock function |
| Protection | Over-temperature and over-pressure protection device; safety valve for over-pressure |
| Water level | Water level sensor; power cuts off automatically at low water level |
| Power consumption | 9 kW, 12 kW or 18 kW, depending on size |
| Power supply | 220 V/380 V, 50/60 Hz or 380 V, 50 Hz, depending on size |
| External size | 1400 x 600 x 1300; 1400 x 670 x 1650; 1400 x 770 x 1780; 1430 x 880 x 1830; 1800 x 900 x 1820 mm |
| Packing size | 1550 x 750 x 1850; 1560 x 820 x 1850; 1680 x 920 x 2100; 1600 x 1050 x 2100; 1850 x 1050 x 2100 mm |
| Gross weight | 320 kg; 350 kg; 465 kg; 530 kg; 580 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Horizontal Cylindrical Pressure Autoclave
The operator sets the sterilisation time and drying time, each between 0 and 60 minutes, and the unit then runs its process automatically at up to 134 °C. With chambers up to Ø700 x 1300 mm, it handles bulk loads that a vertical or table-top autoclave cannot hold in a single cycle.
- Batches of steam-sterilisable items, for example several covered Instrument Tray Stainless Steel units in one cycle.
- Autoclavable polypropylene ware such as the Kidney Basin Polypropylene.
Steam at 0.22 MPa and hot surfaces are hazardous; installation should be by qualified technicians, and operators must be trained.
Standard Scope of Supply
The autoclave is supplied as one sterilizer in the capacity chosen, with its automatic controller, drying function, interlock, safety valve, water level sensor and protection devices. Loading baskets, trays or installation support can be listed as separate items on the same quotation if required.
Packing, MOQ and Lead Time
A quotation can be raised for a single cylindrical autoclave or for several sizes at once. It sets out packing, delivery time and price for each unit and quantity, and other laboratory instruments in India can be added to the same document.
Holding an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Tell us the capacity and site voltage through the contact page or the enquiry cart; for public procurement, see the lab tender page.
Frequently Asked Questions
What happens if the water level drops too low?
A water level sensor monitors the supply, and the power is cut off automatically when the water level is low. Over-temperature and over-pressure devices and a safety valve add further protection.
Which power supply do the different sizes need?
Depending on size, the unit runs on 220 V/380 V, 50/60 Hz or on 380 V, 50 Hz, with power consumption of 9 kW, 12 kW or 18 kW. Confirm your site voltage when you enquire.
How heavy is the autoclave?
Gross weight ranges from 320 kg for the 150 L size to 580 kg for the 500 L size. Packed sizes reach 1850 x 1050 x 2100 mm.
Who supplies the Horizontal Cylindrical Pressure Autoclave?
Buyers sourcing a horizontal autoclave in India deal with Science Lab Supplies, Ambala, which prepares the quotation, export packing and freight booking; accessories can share the shipment.
