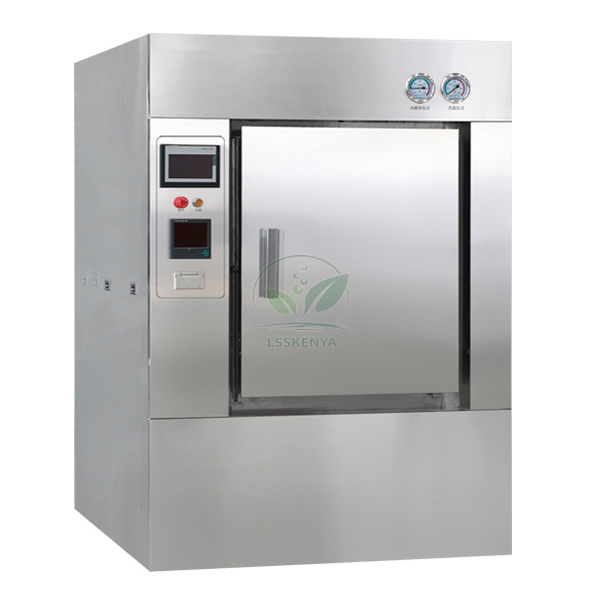

Large Capacity Pulse Vacuum Autoclave
Product Code : LSK-A-11385
Large Capacity Pulse Vacuum Autoclave (SKU LSK-A-11385) is a steam sterilizer with 2000, 2500 or 3000 L chambers, working at 105–134 °C with a water-ring vacuum pump, PLC control and double motor-driven doors. It can process textiles, metal utensils, filters, glassware, animal cages and feed, and liquid media in open containers. It suits research institutes, animal facilities and pharmacy or biotechnology departments. Science Lab Supplies sources and quotes it from Ambala, India, for project buyers and distributors.
Specifications
Each chamber size of this 2000–3000 L pulse vacuum system is detailed below, with multi-value rows in capacity order. In short, it is a double-layer 304 stainless steel vessel designed for 0.245 MPa and 139 °C, holding temperature within 0.5 °C and needing steam, water, compressed air and a 380 V supply.
| Specification | Value |
|---|---|
| SKU | LSK-A-11385 |
| Capacities | 2000 L, 2500 L, 3000 L |
| Chamber size (W x D x H), by capacity | 1700x1000x1200, 2100x1000x1200, 2500x1000x1200 mm |
| Chamber material | 304 stainless steel |
| Main body | Double-layer structure; arc-transition corners with no cleaning dead corners, anti-corrosion |
| Door | Double motor-driven doors, 304 stainless steel, compressed-air sealing |
| Interlocks | Safety interlock and double-door interlock |
| Design pressure | 0.245 MPa |
| Working pressure | 0–0.22 MPa |
| Design temperature | 139 °C |
| Working temperature | 105–134 °C |
| Temperature precision | ≤ 0.5 °C |
| Heat uniformity | ≤ ±1 °C |
| Steam supply | 0.4–0.8 MPa; 70, 80, 100 kg by capacity |
| Water supply | 0.15–0.3 MPa; 400 or 500 kg by model |
| Compressed air | 0.5–0.8 MPa |
| Power consumption | 5.5 or 6.5 kW by model |
| Power supply | AC 380 V, 50 Hz |
| Controller | PLC with large storage, fault-free operation time up to 50,000 hours |
| Operator interface | Multi-function touch screen with three-level password protection |
| Pressure transmitters | Separate sets for jacket and chamber |
| Temperature transmitter | Dual-core, for system temperature and sterilization recording |
| Vacuum pump | Water-ring type |
| Printer | Micro-needle printer; real-time pressure, temperature, time and F0 values and curves |
| Air filter | Biological filter with PTFE filter core |
| External size (W x D x H), by capacity | 2020x1880x2200, 2420x1880x2200, 2820x1880x2200 mm |
| Package size (W x D x H), by capacity | 2300x2100x2400, 2700x2200x2350, 3100x2200x2350 mm |
| Net weight, by capacity | 2500, 2700, 3000 kg |
| Gross weight, by capacity | 2800, 3000, 3300 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Large Capacity Pulse Vacuum Autoclave
The autoclave handles bulk loads of textiles, metal utensils, filters, glassware, animal cages and feed, and media in open containers. With F0 values and curves printed for every cycle, it also supports validation and documentation teaching in pharmacy, biotechnology and laboratory animal science programmes.
- Media preparation: sterilizing glass plates like the Petri Dish (Set) and bulk media before incubation in an Incubator 30L, upto 80C.
- Laboratory animal facilities: processing cages and feed in a single large chamber.
- B.Pharm and M.Pharm practicals: reading F0, temperature and pressure printouts to discuss cycle validation.
Standard Scope of Supply
Each order covers the system in the chosen capacity, with its double-layer chamber, two motor-driven stainless steel doors, PLC and touch screen controls, jacket and chamber pressure transmitters, dual-core temperature transmitter, water-ring vacuum pump, micro-needle printer and PTFE-core biological filter.
Packing, MOQ and Lead Time
Each quotation for this large installation is prepared for the capacity and number of units you need, and it states the packing, delivery time and price. Given the 2.8–3.3 tonne gross weights, share access and site details early so the quote reflects real handling needs.
Under its Importer-Exporter Code, Science Lab Supplies can ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka. Start an enquiry on the contact page, add the system to the enquiry cart, or consult the lab tender page for institutional tendering.
Frequently Asked Questions
What utilities does the autoclave need?
It needs steam at 0.4–0.8 MPa, water at 0.15–0.3 MPa, compressed air at 0.5–0.8 MPa and an AC 380 V, 50 Hz supply. Power consumption is 5.5 or 6.5 kW, depending on the model.
How are cycles recorded?
A micro-needle printer outputs pressure, temperature, time and F0 values and curves in real time, and a dual-core temperature transmitter separates system control from sterilization recording.
How is access to settings controlled?
The multi-function touch screen has three levels of password protection, and the 304 stainless steel doors carry both a safety interlock and a double-door interlock.
Who supplies this pulse vacuum autoclave?
Science Lab Supplies, working from Ambala in India, prepares the quotation, confirms the capacity and utilities with you, and arranges packing and dispatch for research institutes, pharmaceutical units, contractors and distributors.
