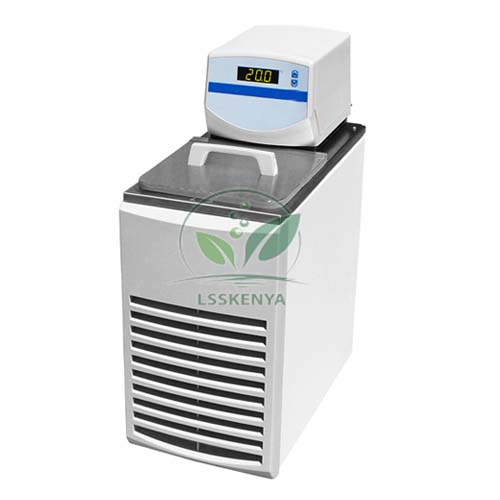

Chiller Water Bath
Product Code : LSK-TWL-10816
Chiller Water Bath (SKU LSK-TWL-10816), also called a refrigerated water bath, holds water below ambient temperature and circulates it with a 15 LPM pump for thermal control work. Engineering, research and analytical laboratories use it to cool samples, condensers and reaction vessels. Science Lab Supplies manufactures the bath at its factory at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and supplies it direct to colleges, research labs, tender contractors and distributors.
Specifications
The bath has a powder-coated mild steel outer body and a stainless steel inner chamber with stainless steel lids, with PUF insulation between the two to keep thermal loss low. A microprocessor-based PID digital temperature indicator-cum-controller sets the temperature, and models cover ambient down to 0, -10, -20 or -30 °C.
| Parameter | Value |
|---|---|
| SKU | LSK-TWL-10816 |
| 13 L bath models | Ambient to 0, -10, -20 or -30 °C |
| 23 L bath models | Ambient to 0, -10 or -20 °C |
| Cooling medium above +5 °C | Water |
| Circulation pump | 15 LPM |
| Temperature control | Microprocessor-based PID digital indicator-cum-controller |
| Outer body | Powder-coated mild steel sheet |
| Inner chamber and lids | Stainless steel |
| Insulation | PUF between inner and outer chambers |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Chiller Water Bath
The chiller bath is used wherever a sample or a piece of apparatus must be held at a steady low temperature. Its pump can circulate chilled water to external equipment, so one bath can serve a reactor jacket, a condenser or a set of sample tubes in analytical and research work.
- Chemical engineering labs: cooling water for condensers and jacketed reaction vessels.
- Biotechnology and life science labs: holding samples at low, controlled temperatures.
- Research and analytical laboratories: general thermal control below ambient.
- Training labs: showing PID temperature control on a refrigerated system.
Standard Scope of Supply
Each bath is supplied as one unit in the chosen size and temperature range: the insulated stainless steel inner chamber with lids, powder-coated outer body, refrigeration for the chosen range, the 15 LPM circulation pump and the PID digital controller. Optional accessories, if any, are listed on the quotation.
Packing, MOQ and Lead Time
Quotations are available for one bath or for several across different laboratories. Tell us the bath volume and lowest temperature you need, and the quotation will state packing, delivery time and price; other engineering lab equipment in India from our range can be added to it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
Which sizes and temperature ranges are available?
The 13-litre bath comes in models reaching 0, -10, -20 or -30 °C from ambient; the 23-litre bath comes in models reaching 0, -10 or -20 °C.
What liquid should be used below +5 °C?
The specification lists water as the medium above +5 °C. For work below that, ask through the contact page which medium suits the model and temperature you plan to use.
Is Science Lab Supplies the manufacturer or a trader?
Science Lab Supplies is the manufacturer. The bath is produced at its own factory in Saha, Ambala, India, and quotations come directly from the factory.
Can the bath cool equipment outside the tank?
Yes. The built-in 15 LPM pump circulates the chilled water, so it can be piped to a condenser, reactor jacket or other apparatus nearby.
Related Temperature-Controlled Units
The chiller bath often supports reaction and process rigs that need a steady temperature. These four units from the Training Workshop Labs range are typical partners and can share its quotation.
- Isothermal Batch Reactor — batch kinetics at constant temperature.
- Isothermal Continuous Stirred Tank Reactor — continuous kinetics at set temperatures.
- Batch Enzyme Reactor — temperature-sensitive enzyme reactions.
- Laboratory Pasteuriser — heating and cooling in food process training.
