Analogue Pressure Display
Product Code : LSK-FM-10437

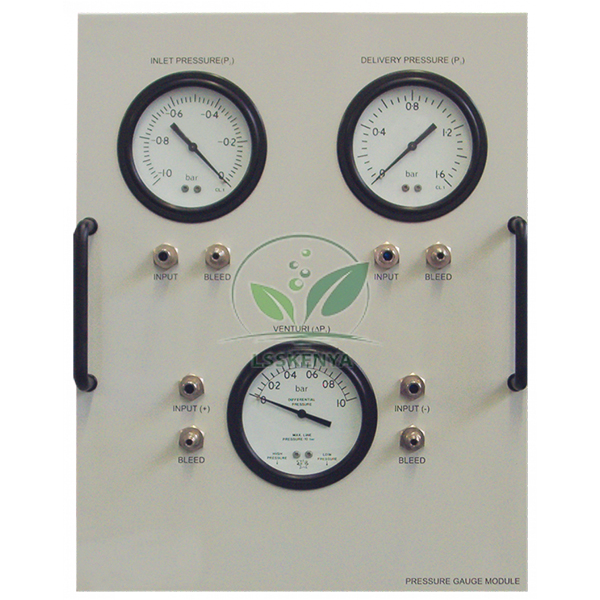

Analogue Pressure Display (SKU LSK-FM-10437) is a panel of three Bourdon gauges that gives clear, direct pressure readings on pump and flow experiments in a fluid mechanics laboratory. It can be fitted to the instrumentation frames of relevant test rigs in engineering colleges, polytechnics and technical institutes. Science Lab Supplies manufactures the gauge panel in its Saha, Ambala factory at Plot 448, HSIIDC Industrial Area, India, and quotes laboratories, contractors and distributors from there.
Specifications
Gauges, connections and panel features of the pressure display are broken down in the table. In short, a robust panel carries three differently rated Bourdon gauges for inlet, delivery and Venturi (differential) pressure; each gauge connects quickly to a pressure outlet, bleed ports let unwanted air out and handles make lifting easier.
| Specification | Value |
|---|---|
| SKU | LSK-FM-10437 |
| Gauges | 3 Bourdon gauges |
| Gauge ratings | Differently rated for each pressure |
| Pressures shown | Inlet, delivery and Venturi (differential) |
| Panel | Robust mounting panel |
| Connections | Each gauge connects quickly to pressure outlets |
| Air removal | Bleed ports for unwanted air |
| Handling | Handles for ease of lifting |
| Mounting | On the instrumentation frames of relevant experiments |
| Function | Clear, direct pressure measurement for a variety of experiments |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Analogue Pressure Display
The display gives students a visual, needle-based reading of the pressures that define pump performance: suction at the inlet, pressure at delivery and the Venturi differential used to calculate flow. It suits pump characteristic tests and pressure measurement lessons in engineering degree, diploma and TVET courses.
- Pump test rigs: reading inlet and delivery pressure to find pump head.
- Venturi flow measurement from differential pressure.
- Teaching how Bourdon gauges work with the physics-lab Bourdon Gauge, whose transparent back shows the mechanism, and comparing dial readings with a liquid column on a glass U-Tube Manometer.
- Comparing analogue gauge readings with digital ones on the same experiment.
Standard Scope of Supply
You receive the panel fitted with its three Bourdon gauges, quick connections to pressure outlets, bleed ports and lifting handles. The pump rig or experiment it mounts on is a separate product, and any connecting items needed for your rig are listed on the quotation.
Packing, MOQ and Lead Time
Order one display for an existing rig, or one for every pump bench in the lab; the quotation spells out packing, delivery time and price for that number. Test rigs and other engineering lab equipment in India from the range can be combined into one offer.
Registered as an exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in the Philippines, Nepal, Bangladesh, Zambia, Rwanda and South Africa. Describe the rig the panel is for on the contact page, or list it with other modules in the enquiry cart; the lab tender page covers formal procurement.
Frequently Asked Questions
Why are the three gauges rated differently?
Each one reads a different pressure: inlet, delivery or the Venturi differential. Matching the rating to the pressure it measures keeps every reading clear on its dial.
How is trapped air removed?
The panel has bleed ports, so unwanted air can be let out of the gauge lines before readings are taken. Bleeding the lines first helps the needles settle on a steady value.
Is Science Lab Supplies the manufacturer or a trader?
The gauge panel is assembled by Science Lab Supplies in its own Saha, Ambala works in India, which makes the company its manufacturer; the quotation is prepared there, with no trading house adding a margin.
Will the display fit the rig we already own?
It mounts on the instrumentation frames of relevant experiments. Share the make and model of your rig on the contact page and the fit will be checked before quoting.
