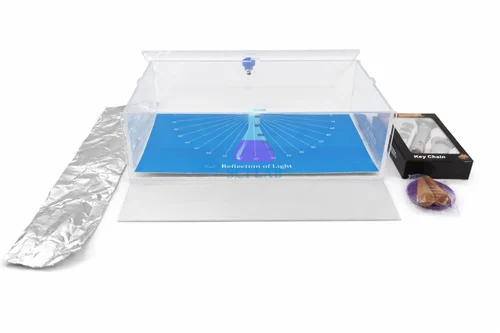

Optical Reflection Demonstration Kit

Product Code : SCL-LAO-12067

Optical Reflection Demonstration Kit (SKU SCL-LAO-12067) is a magnetic ray board with plane, concave and convex acrylic mirrors that cling to its steel surface, so a teacher or student group can trace incident and reflected rays on a printed 360-degree grid. It is used to verify the law of reflection and locate the focus of curved mirrors in school and college optics. Science Lab Supplies manufactures the kit at its Plot 448 unit, HSIIDC Industrial Area, Saha, Ambala, India, and serves schools, colleges, tender contractors and distributors without a middle supplier.

Specifications

Here is the full specification of the magnetic reflection ray board kit. In short, a 400 x 300 mm steel board with a non-glare white surface and a 1-degree polar grid carries magnetic-backed mirrors of vacuum-metallised acrylic with a scratch-resistant hard coat, and the curved elements have a nominal focal length of about 100 mm.

Applications and Experiments for the Optical Reflection Demonstration Kit

A narrow beam is aimed along a grid line at the mirror and both rays are drawn on the board, so angles are read straight from the scale. The board can lie flat for group work or stand on a magnetic whiteboard for the whole class, making it versatile optics lab equipment for schools and colleges.

• Class 7 and Class 10: law of reflection with the plane mirror, using a beam from a Five-Diode Laser Ray Box.
• Class 10 and 12: focus and radius of curvature of the concave and convex mirrors from traced parallel rays.
• Virtual image position and magnification for secondary school ray-diagram work.
• Front-of-class demonstrations with a Rectangular Optical Light Box as a broad-beam alternative.

Never look into the aperture of a laser source, and clean the mirrors only with a damp, soft microfibre cloth.

Standard Scope of Supply

The kit includes the magnetic steel ray board printed with a 360-degree grid, one plane mirror, one concave mirror, one convex mirror, two fine-line washable dry-erase markers and a storage case with precision foam cut-outs. Laser ray boxes are not included, so each institution can choose its preferred beam count.

Packing, MOQ and Lead Time

You can ask for a single kit for demonstrations or several kits for group practicals. Every quotation from Science Lab Supplies shows the packing, delivery time and price for the number of kits requested, and a matching ray box can be added on the same quotation.

Science Lab Supplies is able to ship to buyers in Bangladesh, Zambia, Rwanda, South Africa, Qatar and Sri Lanka as a registered exporter with an Importer-Exporter Code. For a reflection-kit price, message the sales desk through the contact page, build a basket in the enquiry cart, or quote against a tender via the lab tender page.

Frequently Asked Questions

Are the mirrors in the Optical Reflection Demonstration Kit made of glass?
No. They are vacuum-metallised optical acrylic with a scratch-resistant hard coat, which reflects well while being shatterproof, even when younger students set up the elements themselves.

Can the board be used on a classroom whiteboard?
Yes. The steel board adheres to magnetic whiteboards, so the teacher can run the experiment upright in front of the class while students copy the ray paths and angles.

Does the kit include a laser ray box?
No. The kit contains the tracking board and optical elements only. A ray box is quoted separately, so you can choose a single-beam or multi-beam source to suit your lessons.

Is the kit manufactured by Science Lab Supplies?
It is manufactured by Science Lab Supplies in its own Saha, Ambala facility in India. Quotations are prepared by the company that makes the kit, not by an outside agent.

Related Ray Optics and Reflection Kits

These kits and models cover the same reflection syllabus from different angles: full laser ray-tracing kits with refraction blocks, a circular reflection board, a curved-mirror model, hinged mirrors for multiple images and a plain plastic mirror, any of which can share one quotation.

• Ray Optics Laser Laboratory Kit — laser box switchable between 1, 3 or 5 parallel lines, with refraction blocks and a prism.
• Optical Ray Tracing Kit — five-beam laser ray box, 400 x 300 x 10 mm magnetic board and lens shapes.
• Light Ray Reflection Demonstrator — circular tracking board with a vertical object needle marker and experiment templates.
• Curved Mirror Effects Model — weighted 300 x 150 x 25 mm ABS base with metric markings and three object markers.
• Angle Between Mirrors Model — two 3 mm acrylic mirror leaves on a matte polystyrene protractor base.
• Plastic Mirror — durable plastic mirror for periscopes and mirror writing by young students.
