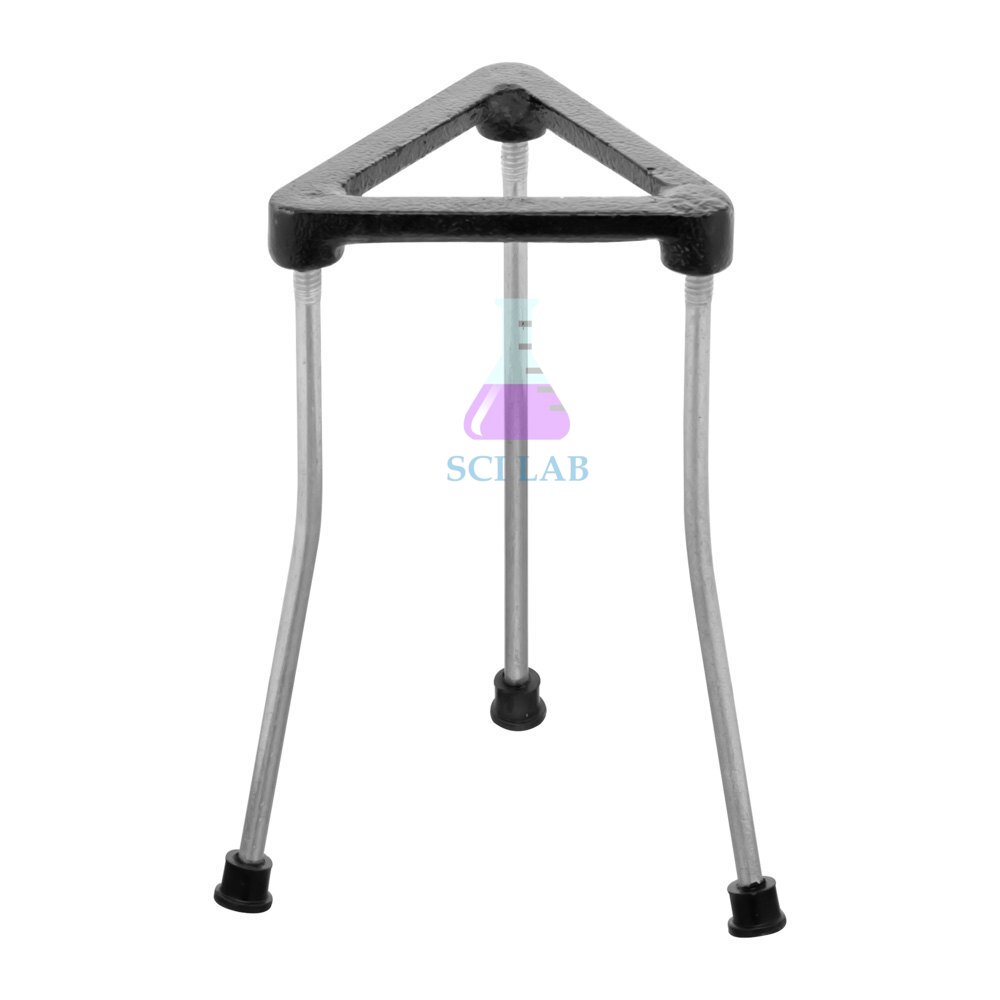

Cast Iron Tripod Stand
.jpg)
Product Code : SCL-CL-12020
Cast Iron Tripod Stand (SKU SCL-CL-12020) is a three-legged support that holds a beaker, flask, evaporating dish or crucible over a burner flame. With a wire gauze or pipe-clay triangle on top it makes a simple heating set-up for school and college laboratories. Its supplier, Science Lab Supplies of Ambala, India, quotes it for schools, colleges, training institutes, tender contractors and distributors stocking school chemistry lab equipment in India.
Specifications
Each dimension and material of the 8-inch tripod has its own row in the table. In short, a black-finished forged cast iron ring of 120 mm outer diameter sits on three threaded, zinc-plated mild steel legs that give a 200 mm working height and unscrew for flat storage.
| Specification | Value |
|---|---|
| SKU | SCL-CL-12020 |
| Top ring material | Forged cast iron, black finish |
| Outer ring diameter | 120 mm |
| Leg material | Zinc-plated mild steel |
| Leg length | 200 mm |
| Leg fixing | Removable, threaded screw-in |
| Overall height | 200 mm (8 in) |
| Footprint | Three-legged, outward-flared triangular base |
| Ring top | Takes standard wire gauzes and ceramic triangles |
| Pack contents | 2 rings and 6 legs (builds two tripods) |
| Documentation | Burner support configuration and assembly guide |
| Reusability | Fully reusable |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Cast Iron Tripod Stand
The tripod raises a vessel to a workable height above a Bunsen burner or spirit lamp so it can be heated evenly and safely. It suits middle-school science, CBSE Class 9–12 chemistry and B.Sc. inorganic practicals wherever solutions are boiled, evaporated or strongly heated.
- Boiling water or solutions in a Borosilicate Beaker on a wire gauze, then lifting it off with a Beaker Tong SS.
- Class 9 science: evaporating a salt solution in a dish to recover crystals.
- Heating a Croojiola (Pot) Porcelain on a pipe-clay triangle in ignition work.
- Supporting a water bath or sand bath for gentle, even heating.
The ring stays hot long after the flame is turned off, so let it cool before moving it and keep hands clear during heating.
Standard Scope of Supply
Each pack holds two cast iron tripod rings of 120 mm outer diameter, six threaded zinc-plated steel legs of 200 mm and an assembly guide, enough to build two tripods. Gauzes, triangles and burners can be added to the same quotation.
Packing, MOQ and Lead Time
Get a quote for a single pack or for every heating bench in the school laboratory. The quotation spells out packing, delivery time and price for the exact quantity requested, and gauzes, triangles or burners can be added to it.
Registered as an exporter under an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Put the number of packs in a message on the contact page or in the enquiry cart, and for tender-based purchases follow the steps on the lab tender page.
Frequently Asked Questions
How tall is the tripod and how wide is the ring?
It stands 200 mm high and the cast iron ring has a 120 mm outer diameter, which suits standard wire gauzes and ceramic or pipe-clay triangles.
Can the legs be removed?
Yes. The three zinc-plated steel legs have precision threads; they screw into the ring for use and unscrew again so the parts lie flat for storage or packing.
Who supplies the Cast Iron Tripod Stand?
The tripod comes from Science Lab Supplies, Ambala, India. One team prepares the quotation and dispatches the order, whether it is for a school, a college or a reseller, so questions about packing and delivery go to a single contact.
Do I need a wire gauze with the tripod?
For beakers and flasks, yes: a gauze spreads the flame and gives a flat, stable surface. Crucibles sit on a pipe-clay triangle instead.
Related Heating Accessories
A tripod works with a heat source and something to sit on its ring. The products below complete the heating set-up for beakers, dishes and crucibles, and they can be quoted with the tripods in a single document for a school laboratory.
- Laboratory Wire Gauze Mesh — 150 x 150 mm gauze with folded, turned edges.
- Ceramic Mesh — 125 x 125 mm metal mesh with a ceramic circle and rolled smooth edges.
- Triangles for Placing Pots — porcelain triangles for open-flame chemistry.
- Porcelain Capsule — white porcelain, 50 ml capacity.
- Porcelain Dish — 150 ml shallow dish with a pouring spout.
- Tripod Stand — three-legged metal platform for hands-free heating.
- Adjustable Bunsen Gas Burner with Control Valve (Set of 2) — 8 mm serrated inlet and aluminium air sleeve on each burner.
- Stainless Steel Crucible Tongs — 200 mm grade 304 tongs rated up to 500 °C.
Find more in the Chemistry Lab range, the Glassware Beaker range for vessels to heat, or all school lab equipment.
