Axial Flow Pump Module
Product Code : LSK-FM-10479

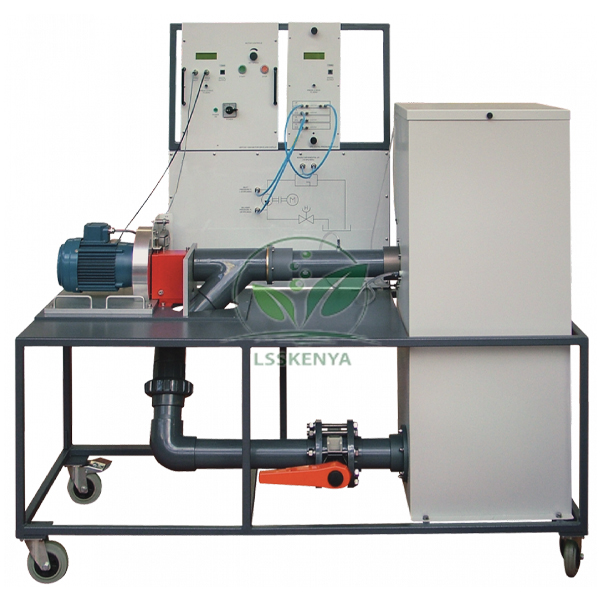

Axial Flow Pump Module (SKU LSK-FM-10479) is a trolley-mounted test module that lets students run performance tests on an axial flow pump, driven and measured by the Universal Dynamometer. It belongs to the Modular Fluid Power range and serves fluid machinery practicals, demonstrations and projects in B.Tech and diploma engineering courses. The module is built by Science Lab Supplies at Plot 448, HSIIDC Industrial Area, Saha, Ambala, India, and engineering colleges, polytechnics, contractors and distributors can order it straight from that factory.
Specifications
The table below sets out each specification of the axial flow pump module. In short, a two-section bladed pump draws water from a tank through a calibrated nozzle and returns it via an adjustable delivery valve, while electronic transducers feed a digital display, all on a mobile trolley.
| Specification | Value |
|---|---|
| SKU | LSK-FM-10479 |
| Product range | Modular Fluid Power range |
| Pump type | Axial flow |
| Pump sections | One fixed and one moving section, each with a set of blades |
| Drive | Universal Dynamometer (separate item), which drives the module |
| Dynamometer readings | Speed, torque and power absorbed by the pump |
| Speed | Fully variable up to the maximum allowable for the pump |
| Pressure sensors | Electronic transducers |
| Pressures measured | Pump inlet, pump outlet and pressure difference across the nozzle |
| Display | Digital, showing all readings |
| Water circuit | Water tank, calibrated nozzle, pump, delivery valve, back to the tank |
| Flow measurement | Calibrated nozzle |
| Delivery valve | Fully adjustable; gradually shuts the downstream flow for performance tests |
| Mounting | Robust, mobile trolley |
| Intended use | Student experiments, demonstrations and projects |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Axial Flow Pump Module
With the module, students can close the delivery valve in steps and record pressures, nozzle flow, and the speed, torque and power from the dynamometer. The data give head, power and efficiency curves for an axial pump, a type that delivers high flow rates at reasonable pressure, as in irrigation.
- B.Tech fluid machinery lab: performance characteristics of an axial flow pump.
- Flow measurement with a calibrated nozzle and differential pressure, as also studied on the Flow Meter Calibration apparatus.
- Effect of pump speed on head and flow.
- Projects comparing axial results with centrifugal pump characteristics on the Centrifugal Pump Test Set.
Keep hands clear of the rotating coupling and run tests under staff supervision.
Standard Scope of Supply
The module includes the axial flow pump, water tank, calibrated nozzle, delivery valve, pressure transducers and digital display, all mounted on the mobile trolley. It is driven by the Universal Dynamometer, a separate product in the range; add it to the quotation if you do not already have one.
Packing, MOQ and Lead Time
One module or several can be quoted, depending on how many student groups you plan to run. Each quotation specifies packing, delivery time and price for the requested quantity, and other engineering lab equipment in India from the Fluid Power range can be combined with it.
As the holder of an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Saudi Arabia, Oman, the Philippines, Nepal, Bangladesh and Zambia. For a price on an axial pump test station, post your quantity on the contact page, list the module in the enquiry cart, or read the lab tender page before submitting a formal bid.
Frequently Asked Questions
What drives the axial flow pump?
The module is driven by the Universal Dynamometer, which also measures the speed, torque and power absorbed by the pump. Speed can be varied up to the maximum allowed for the pump.
How is flow rate measured?
Water passes through a calibrated nozzle before the pump, and a transducer measures the pressure difference across it; the digital display shows this with the inlet and outlet pressures.
Is Science Lab Supplies the manufacturer or a trader?
The axial flow pump module is built by Science Lab Supplies in its own factory in Saha, Ambala, India, so the quotation you receive comes from the maker rather than from a trading intermediary.
Can it be used for projects as well as set practicals?
Yes. The module suits student experiments, demonstrations and projects, and the adjustable delivery valve gradually shuts the downstream flow, allowing a wide range of pump performance tests.
Related Pump Testing Equipment
These items from the Fluid Mechanics and Hydraulics and Pneumatics ranges cover the drive, companion pump designs and multi-pump testing, so a laboratory can compare axial, centrifugal and positive displacement pumps; any of them can be added to the same quotation.
- Universal Dynamometer — trunnion-mounted induction motor with a strain gauge load cell, plus an inverter drive and display unit.
- Centrifugal Pump Module — trolley-mounted centrifugal pump with Venturi flowmeter, valves and pressure transducers.
- Piston Pump — positive displacement oil pump whose built-in one-way valves set the flow direction.
- Gear Pump — double-gear oil pump with self-sealing connections for fitting to the pump module.
- Two-Stage Series And Parallel Pumps — two centrifugal pumps on independent motor drives, run alone, in series or in parallel.
- Multi Pump Test Rig — mobile rig with five pump positions; an axial pump is available as an accessory.
- Propeller Turbine — inward flow reaction turbine with fixed blades and adjustable guide vanes.
Browse the full Fluid Mechanics range, the Hydraulics and Pneumatics range, or all engineering laboratory equipment.
