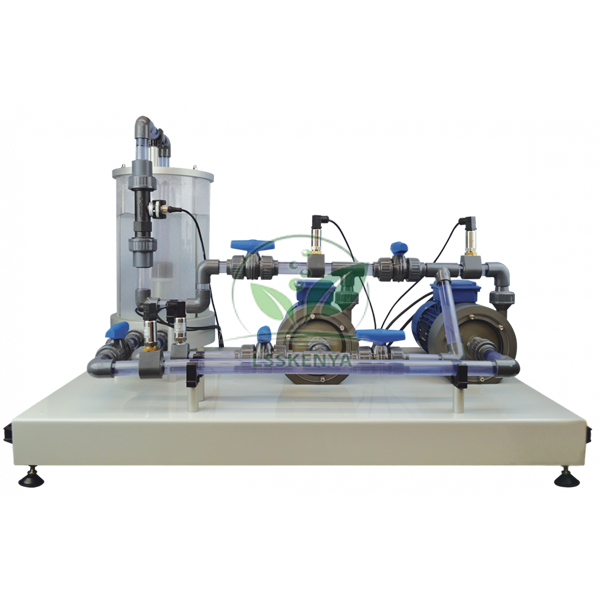

Variable Speed Series and Parallel Pumps
Product Code : LSK-FM-10432
Variable Speed Series and Parallel Pumps (SKU LSK-FM-10432) is a compact, bench-top test set for finding the characteristics of centrifugal pumps running singly, in series or in parallel. It suits B.Tech and polytechnic fluid mechanics practicals. The rig is manufactured by Science Lab Supplies, a laboratory equipment manufacturer in India, at Plot 448, HSIIDC Industrial Area, Saha, Ambala, and colleges, tender contractors and distributors receive quotations for it directly.
Specifications
The table below covers the series and parallel pump set specification by specification. In short, one variable speed and one fixed speed centrifugal pump, each on its own bearing-mounted motor, draw from a clear acrylic reservoir; valves route the water to a flow and temperature measurement device and back, so water use stays minimal.
| Specification | Value |
|---|---|
| SKU | LSK-FM-10432 |
| Format | Compact, bench-top, fully self-contained |
| Pump 1 | Variable speed centrifugal pump |
| Pump 2 | Fixed speed centrifugal pump |
| Drive | Two bearing-mounted motors, each driving one pump independently |
| Reservoir | Clear acrylic |
| Water circuit | Series of valves; water returns to the reservoir for re-use |
| Flow and temperature | Flow and temperature measurement device |
| Pressure transducers | In the intake and delivery pipes |
| Pressure display | Inlet and outlet pressures shown on the control box |
| Valves | Adjustable inlet and delivery valves |
| Operating modes | Single pump, series or parallel |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Series and Parallel Pumps
With the set, students can plot head and flow characteristics for one centrifugal pump, then compare them with two pumps in series (higher head) and in parallel (higher flow). Changing the speed of one pump shows how speed shifts the pump curve, a core fluid mechanics lab experiment in engineering courses.
- B.Tech fluid machinery lab: head–flow characteristic of a single pump.
- Series operation: adding the heads of two pumps at one flow rate.
- Parallel operation: combining flow rates at a common delivery pressure.
- Effect of pump speed on the curve, read from the intake and delivery transducers on the control box.
- Contrasting centrifugal behaviour with positive displacement machines such as the Gear Pump and Piston Pump.
Standard Scope of Supply
Each set is supplied complete: both centrifugal pumps with their bearing-mounted motors, the clear acrylic reservoir, the valve network with adjustable inlet and delivery valves, the flow and temperature measurement device, both pressure transducers and the control box with its display.
Packing, MOQ and Lead Time
Quotations can be prepared for one test set or for enough units to equip a whole fluid mechanics laboratory. Each one sets out the packing, delivery time and price for the quantity requested, and other engineering lab equipment in India can be listed alongside it.
Holding an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Tanzania, Uganda, the UAE, Saudi Arabia, Oman and the Philippines. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Pump laboratory plans can be discussed through the contact page, the rig added to the enquiry cart with other fluid machines, or a tender bid prepared from the lab tender page.
Frequently Asked Questions
Can the two pumps be tested separately?
Yes. Each pump has its own bearing-mounted motor, so either can run alone for its own characteristic, and both can then be connected in series or in parallel through the valves.
Does the rig need a separate water supply while running?
No. The pumps draw from the clear acrylic reservoir and the water returns to it after passing the valves and the flow and temperature measurement device.
Who makes this pump test set?
Science Lab Supplies manufactures the pump test set itself at its factory in Saha, Ambala, India, so the quotation, packing and dispatch are all handled by the maker rather than a trading agent.
