White Light Source Ray Box
Product Code : SCL-CL-11881
White Light Source Ray Box (SKU SCL-CL-11881) is a classroom optics demonstration set: five separate parallel beams pass through large lenses held on a demonstration board, so a whole class can watch the rays converge or spread out. It suits refraction lessons in secondary school science and junior college physics. Single sets or a full optics-room quantity are quoted by Science Lab Supplies from its base in Ambala, India, for schools, colleges, tender contractors and distributors.
Specifications
Each specification of the five-lens ray box set appears as its own row in the table below. In short, a white light source with five parallel beams works with a demonstration board carrying five large lens profiles, and each lens shows whether the beams meet at a shared focal point or spread apart.
| Specification | Value |
|---|---|
| SKU | SCL-CL-11881 |
| Light source | White light |
| Beams | Five separate parallel beams |
| Number of lens types | 5 |
| Lens size | Large |
| Lens profiles | Double convex, double concave, plano-concave, plano-convex, concave-convex |
| Mounting | Demonstration board |

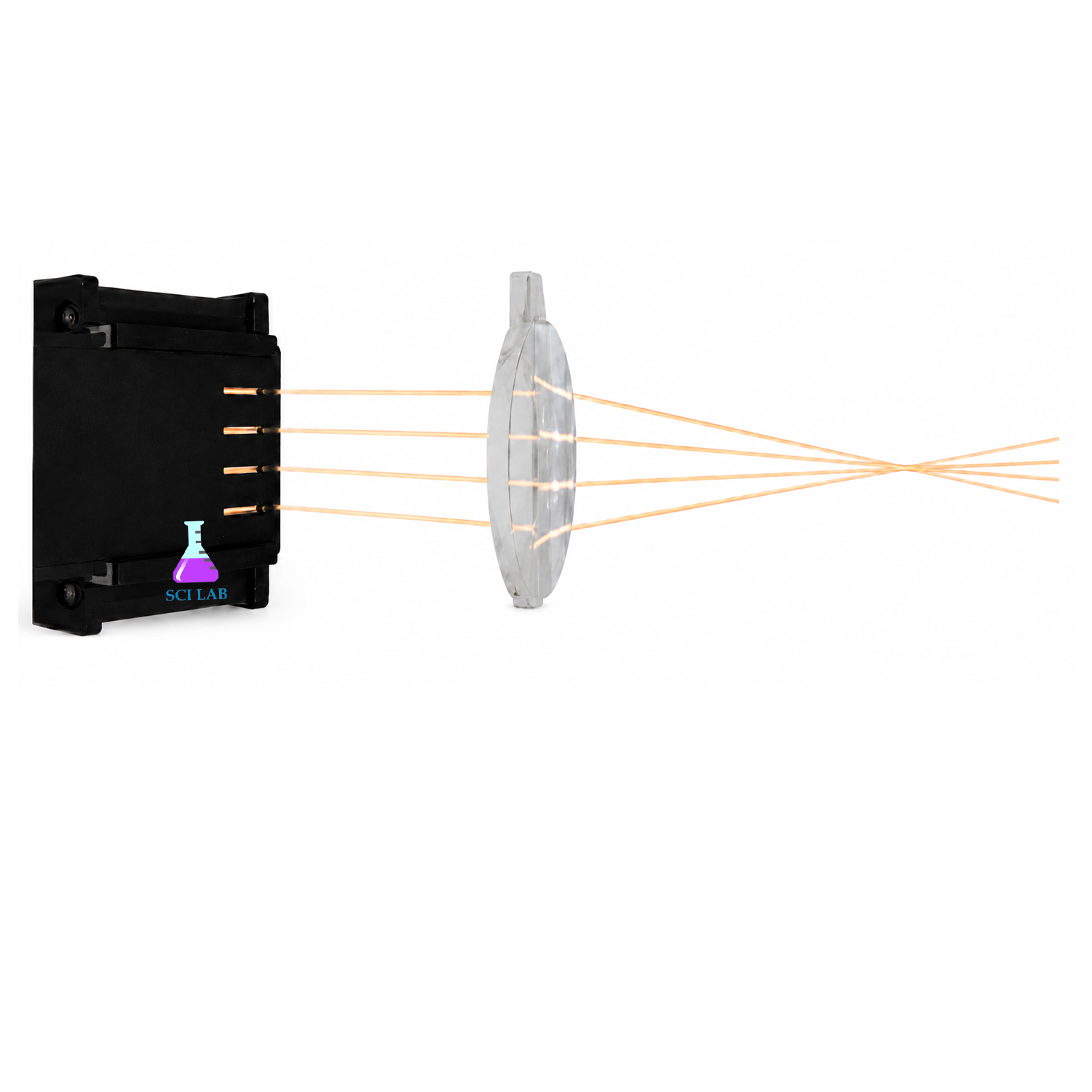

| Convex lens behaviour | Parallel beams refracted inward to cross at a shared focal point |
| Demonstrates | Laws of refraction; focal point of a lens |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the White Light Source Ray Box
The ray box shows how lenses refract light, locates the focal point of a converging lens and lets converging and diverging lenses be compared side by side. It suits the light chapters of CBSE/NCERT Class 10 science and Class 12 physics, and introductory optics in teacher-training labs.
- Class 10 science (Light – Reflection and Refraction): showing how a convex lens brings parallel rays to a focal point, then measuring a focal length with a single Convex Lens 50mm.
- Comparing the double concave and double convex profiles to show diverging and converging behaviour, with a Concave Optics Experiment Lens for follow-up work on divergence.
- Class 12 ray optics: tracing rays through the plano-convex, plano-concave and concave-convex profiles.
Standard Scope of Supply
The set brings together the white light source and the demonstration board with its five large lenses: double convex, double concave, plano-concave, plano-convex and concave-convex. Power arrangements and any optional accessories are confirmed on the quotation, so the exact contents are clear before dispatch.
Packing, MOQ and Lead Time
Quotations can cover a single ray box for one teacher or a batch for every physics room in a school group, and each one lists the packing, delivery time and price for the quantity requested. Prisms, lens kits or other optics items from the range can go on that quotation too.
Science Lab Supplies holds an Importer-Exporter Code and can ship to buyers in Kenya, Ghana, Ethiopia, Tanzania, Uganda and the UAE. To have a ray box priced for your optics room, describe the quantity on the contact page, drop it into the enquiry cart with any lenses you need, or turn to the lab tender page when the purchase runs through a formal bid.
Frequently Asked Questions
What does the White Light Source Ray Box demonstrate?
It demonstrates refraction through lenses. Five parallel beams pass through the chosen lens, and students see them meet at a focal point with the convex profiles or spread apart with the concave ones.
Which lens types are included?
Five large lenses are included: double convex, double concave, plano-concave, plano-convex and concave-convex. They sit on a demonstration board so the class can compare converging and diverging shapes in one lesson.
Who supplies the White Light Source Ray Box?
The ray box comes from Science Lab Supplies in Ambala, India. Its team can quote one set or several for schools, colleges and tender contractors, and can combine it with prisms or lens kits on a single enquiry.
Can the ray box be quoted for a school tender?
Yes. Share the quantity, delivery address and tender specification, and the quotation will list the ray box item-wise with the five-lens demonstration board described above, ready to check against the bid document.
Related Light and Optics Equipment
These optics items let students repeat and extend the refraction lesson started with the ray box, covering dispersion, ray tracing, lenses on stands and alternative ray sources. Any of them can be listed on the same enquiry for one combined quotation.
- Triangular Prism — 5 cm high, 3 cm wide prism with polished faces that splits white light into seven visible colours.
- Lens Kit with Stands and Storage Box — three converging lenses of 5, 10 and 20 cm focal distance and three diverging lenses, with lens stands.
- Ray Box and Lens Set — red 650 nm ray source with lenses, a prism table and a 310 × 210 mm magnetic board.
- Five-Diode Laser Ray Box — projects five parallel laser beams for measuring focal lengths and refraction.
- Ray Box Optics Activity Set — ray box with acrylic prisms, semi-circular blocks and double convex and concave lenses.
- Glass Lens Demonstration — six 38 mm glass lenses with ground edges in a foam-lined wooden box.
- Optical Ray Tracing Kit — laser source and acrylic optical shapes on a magnetic backing for mapping light paths.
