Versatile 6-in-1 Logic Gate Apparatus
.jpg)
Product Code : SCL-EAE-12052

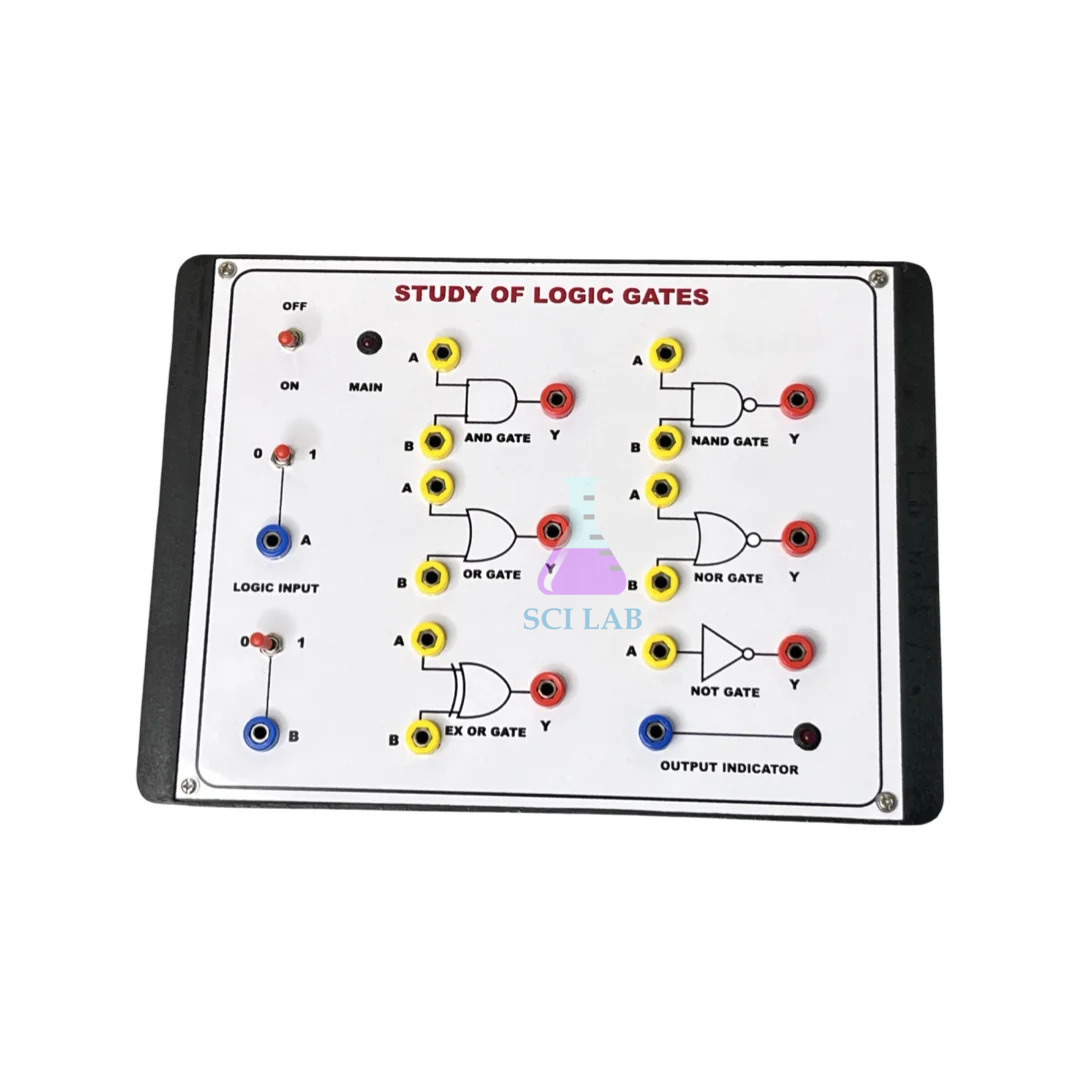

Versatile 6-in-1 Logic Gate Apparatus (SKU SCL-EAE-12052) is a digital electronics teaching unit that combines the AND, OR, NOT, NAND, XOR and NOR gates in one housing, so learners can study each logic function and verify its truth table by hand. It serves students, teachers, electronics laboratories, technical institutes and engineering training centres. Science Lab Supplies manufactures the apparatus at its factory in Saha, Ambala, India (Plot 448, HSIIDC Industrial Area) and supplies it straight to schools, colleges, tender contractors and distributors.
Specifications
The table below gives every documented specification. In short, the apparatus covers six fundamental gates, uses a switching arrangement to move between them, shows clear front-panel indications for each function, and comes with a manual and patch cord; its operating voltage and IC types are stated on the quotation.
| Specification | Value |
|---|---|
| SKU | SCL-EAE-12052 |
| Product type | Digital electronics training apparatus |
| Number of gate functions | 6 |
| Gates covered | AND, OR, NOT, NAND, XOR and NOR |
| Primary function | Study and demonstration of fundamental digital logic operations |
| Gate selection | Switching arrangement |
| Front panel | Clear indications for each gate function |
| Accessories | Manual and patch cord |
| Operating voltage and ICs | Stated on the quotation for the model supplied |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the 6-in-1 Logic Gate Apparatus
Students select a gate, apply each input combination and record the output, then compare the result with the expected Boolean truth table. The unit suits introductory digital electronics practicals in B.Sc., diploma and B.Tech courses, ITI and vocational electronics training, and logic demonstrations in school STEM sessions.
- Truth-table verification for all six gates before students move on to the Analog & Digital IC trainer Board kit for full circuits.
- Showing NAND and NOR as universal gates, then building them from chips on the DigitaL IC Trainer Electronics Lab.
- Classroom demonstrations of Boolean logic for diploma and engineering foundation courses.
- Vocational electronics training where one compact unit replaces six separate gate boards.
Standard Scope of Supply
Each set contains one Versatile 6-in-1 Logic Gate Apparatus, one manual and a patch cord for making connections. Any power source or further accessories you need are listed on the quotation, which also confirms the operating voltage of the unit before it is dispatched.
Packing, MOQ and Lead Time
A quotation can be prepared for one apparatus for a demonstration table or for a full set for a digital electronics laboratory. It shows the packing, delivery time and price for that quantity, and other electronics trainers from this physics instruments supplier in India can be listed with it.
Science Lab Supplies holds an Importer-Exporter Code, so it can ship to buyers in Malaysia, Peru, Egypt, Iraq, Nigeria and Kenya. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Use the contact page or the enquiry cart to ask for prices, and the lab tender page for tenders.
Frequently Asked Questions
Which logic gates does the apparatus include?
It covers six gates: AND, OR, NOT, NAND, XOR and NOR. A switching arrangement selects each gate in turn, and front-panel indications show which function is active during the experiment.
Can students verify truth tables with it?
Yes. Students apply every input combination to the selected gate, observe the output indication and compare each result with the theoretical truth table, repeating the procedure for all six gates.
What operating voltage does the unit need?
The operating voltage and IC types are confirmed on the quotation for the model supplied. Use only that specified supply, and never energise the apparatus with an unverified voltage.
Is Science Lab Supplies the manufacturer of this apparatus?
Yes. Science Lab Supplies, a laboratory equipment manufacturer in India, produces the logic gate unit in its own Saha, Ambala factory, so institutions and distributors deal directly with the maker on every quotation.
