Block Making Machine
Product Code : LSK-WT-10540

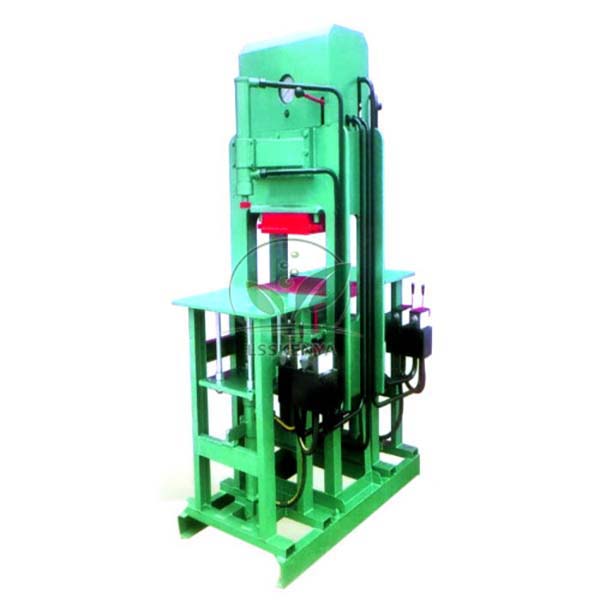

Block Making Machine (SKU LSK-WT-10540) is a hydraulic compacting press with its own pan mixer and conveyor that forms bricks four at a time on a PVC pallet. Vocational colleges use it to give masonry and building-construction trainees hands-on practice in brick production. Science Lab Supplies supplies it from Ambala, India to TVET institutes, polytechnics, tender contractors and distributors.
Specifications
Every technical detail of the Block Making Machine is listed in the table below. In short, a 100 ton hydraulic press forms four 230 x 110 x 75 mm bricks per stroke on a PVC pallet, fed by a pan mixer with a 7.5 HP three-phase motor and a 20-foot conveyor, for a rated 1680 bricks per hour.
| Specification | Value |
|---|---|
| SKU | LSK-WT-10540 |
| System | Hydraulic power compacting |
| Hydraulic pressure | 100 ton |
| Bricks per stroke | 4 (one pallet) |
| Strokes per hour | 420 (7 per minute) |
| Production capacity | 1680 bricks per hour (rated) |
| Brick size | 230 x 110 x 75 mm, with frog |
| Pallet type | PVC |
| Pallet size | 600 x 300 x 25 mm |
| Conveyor length | 20 ft (about 6.1 m) |
| Total power required | 31.5 HP |
| Pan mixer bottom plate | 10 mm |
| Pan mixer side wall plate | 5 mm |
| Pan mixer side wall height | 500 mm |
| Pan mixer motor | 7.5 HP |
| Pan mixer motor speed | 1480 rpm |
| Pan mixer motor supply | 3 phase |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Block Making Machine
The machine is used in TVET and ITI construction workshops to show how mixing, hydraulic compaction and pallet handling combine into one brick production line, and in civil engineering diploma labs to make bricks for size and strength checks. It suits institutes that want vocational training equipment linked to real production.
- Masonry and building-construction trades (TVET, ITI/NSQF): producing uniform bricks for bricklaying practice, with courses levelled using a Water Level.
- Civil engineering diploma and B.Tech building-materials labs: brick specimens for dimension checks and compressive-strength tests on a Motorized Compression/Tension Machine.
- Plant operation modules: running mixer, conveyor and press as one line under supervision, with power isolated before cleaning and a Safety Helmet worn on the line.
Standard Scope of Supply
The Block Making Machine is supplied as the hydraulic power-compacting press, the pan mixer with its 7.5 HP motor and the 20-foot conveyor, as set out in the specification above. The number of PVC pallets and any optional accessories are stated on the quotation, so please confirm them when ordering.
Packing, MOQ and Lead Time
You can ask for a quotation for a single machine or for a complete construction workshop, and each quotation states the packing, delivery time and price for that quantity. Mixers, vibrators and other site tools from the same range can go on one quotation, keeping TVET workshop equipment purchasing simple.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ghana, Ethiopia, Tanzania, Uganda, the UAE and Saudi Arabia. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). A quote for the block making machine starts on the contact page or in the enquiry cart; vocational colleges buying by tender can also check the lab tender page.
Frequently Asked Questions
What output does the Block Making Machine give?
It is rated at 1680 bricks per hour: four bricks per stroke at 420 strokes an hour, or seven strokes a minute. Each brick measures 230 x 110 x 75 mm with a frog.
What power supply does the machine need?
The complete line needs 31.5 HP in total, and the pan mixer motor is a three-phase unit, so the workshop needs a three-phase supply sized for the full load.
Who supplies the Block Making Machine?
Science Lab Supplies supplies it from Ambala, India, and can quote it with other construction tools for TVET institutes, polytechnics, contractors and distributors.
Can it be quoted for a TVET tender?
Yes. Send the quantity, delivery location and tender specification through the contact page for an item-wise quotation against the specification above.
Related Concrete and Masonry Equipment
Block production links mixing, moving, compacting and cutting. The items below come from the Workshop Tools range plus a laboratory mixer from the Concrete Laboratory range, and each can be listed with the block machine on one quotation for a single delivery to the workshop.
- Concrete Mixer — diesel-engine drum mixer with an approx. 240 L drum turning at 16–26 rpm.
- Laboratory Concrete Mixer — 55/110 L steel vessel rotating at 20–22 rpm, tilted by hand wheel for discharge, for concrete mix design.
- Vibrating Table — 500 x 500 mm top for up to 140 kg, compacting cement concrete while casting cubes.
- Saw — water-cooled masonry saw taking discs up to 450 mm, for cutting bricks, blocks, tiles and slabs.
- Site Dumper — 4 x 4 diesel dumper with a 3000 kg payload and 1500 litre hydraulic tipping skip.
- Rammer — 25 x 33 cm shoe plate travelling up to 70 ft/min, with rubber shock mounts and a see-through fuel tank.
Browse the full Workshop Tools range, the Concrete Laboratory range for mix and strength testing, or all TVET lab equipment.
Last updated: 9 October 2026
