Eyepiece Micrometric
Product Code : LSK-BL-10214

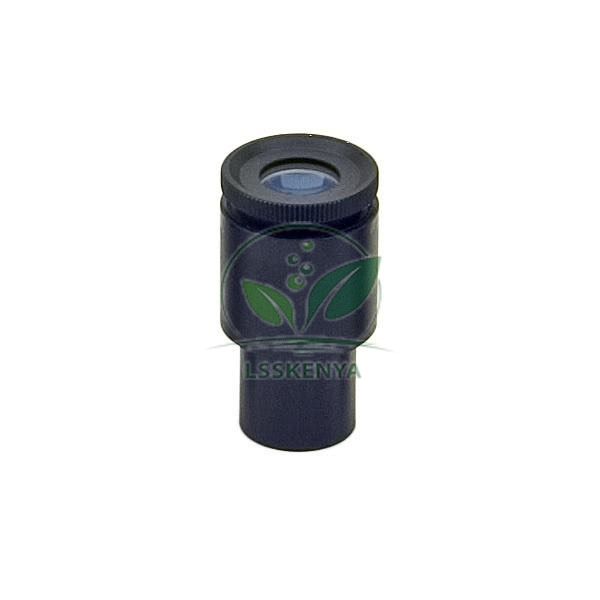

Eyepiece Micrometric (SKU LSK-BL-10214), commonly called an eyepiece micrometer, is a x10 widefield microscope eyepiece with an integral measuring scale in 0.01 mm graduations. Used with a stage micrometer, it allows accurate measurement of specimens and calibration of the microscope. It serves micrometry practicals in B.Sc. botany, zoology and microbiology, and in laboratory technician training. Science Lab Supplies, a biology lab equipment supplier in India, can send it from Ambala to colleges, schools, institutes, stockists and tender buyers.
Specifications
The Eyepiece Micrometric is a 50 mm long, x10 widefield eyepiece with an 18 mm lens and a built-in scale. In short, the scale is graduated in 0.01 mm divisions and stays in view over the specimen, so it can be matched against a stage micrometer and then used to measure cells directly.
| Specification | Value |
|---|---|
| SKU | LSK-BL-10214 |
| Type | Widefield eyepiece with integral measuring scale |
| Magnification | x10 |
| Graduations | 0.01 mm |
| Lens diameter | 18 mm |
| Length | 50 mm |
| Used with | Stage micrometer |
| Purpose | Measurement of specimens and calibration of the microscope |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Eyepiece Micrometric
Fitted in place of a standard eyepiece, it superimposes a scale on the specimen so that length, width and diameter can be read off once each objective has been calibrated. Micrometry with an eyepiece scale is part of B.Sc. botany, zoology and microbiology practicals and medical laboratory technology courses.
- Measuring the size of protozoa on the Amoeba Laboratory Prepared Slide after calibration at 10X and 40X.
- B.Sc. zoology: measuring fibre diameter in Skeletal Muscle, Longitudinal and Transverse Sections.
- Comparing wall thickness in the Artery and Vein, Cross Section slide.
- Recording calibration factors for each objective of a class microscope set so students can reuse them.
Standard Scope of Supply
Each Eyepiece Micrometric is supplied as a single x10 widefield eyepiece, 50 mm long, with its 18 mm lens and 0.01 mm graduated scale. The stage micrometer and the microscope are not included; both can be listed on the same quotation to complete a calibration set.
Packing, MOQ and Lead Time
Ask for a quotation for one eyepiece or for one per microscope in a practical room. Science Lab Supplies gives the packing, delivery time and price for that quantity, and stage micrometers, microscopes or prepared slides can be quoted together with the eyepieces.
Science Lab Supplies holds an Importer-Exporter Code, so it can ship to buyers in the UAE, Saudi Arabia, Oman, the Philippines, Nepal and Bangladesh. Price requests are welcome on the contact page; items can also be gathered in the enquiry cart, and the lab tender page explains tender supply.
Frequently Asked Questions
How is the eyepiece scale calibrated?
Place a stage micrometer on the stage and line up both scales. Note how many eyepiece divisions cover a known length on the stage scale, then divide to find the true length of one eyepiece division for that objective.
Why must calibration be repeated for each objective?
The eyepiece scale stays the same size, but the specimen image grows with each objective. One eyepiece division therefore covers a different real length at 4X, 10X, 40X or 100X, and each needs its own factor.
Will this eyepiece fit our microscopes?
It is a x10 widefield eyepiece, 50 mm long with an 18 mm lens. Send the make and eyepiece tube size of your microscopes through the contact page, and the team will confirm the fit before quoting.
Who supplies the Eyepiece Micrometric?
Science Lab Supplies quotes and ships the eyepiece from Ambala, India. Colleges, schools, institutes, distributors and tender buyers can order it alone or as a set with stage micrometers and microscopes.
