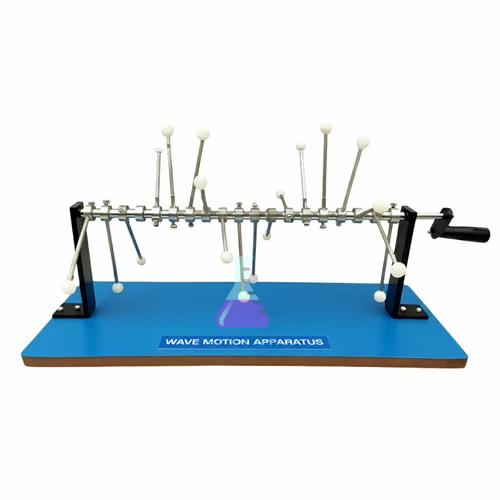

Wave Motion Powell’s Wave Demonstrator

Product Code : SCL-PL-12123

The Wave Motion Powell’s Wave Demonstrator is a mechanical laboratory apparatus used for visually demonstrating the propagation of transverse and longitudinal waves in physics classrooms. Engineered for educators and students, this apparatus clearly illustrates how individual particles move simple harmonically while the wave envelope travels forward horizontally.

Product Description

The Wave Motion Powell’s Wave Demonstrator from Science Lab Supplies features a robust, multi-axis metal crankshaft supported by a durable wooden or metallic frame assembly. The crankshaft is meticulously configured with a series of offset eccentric cams or bent wire linkages that connect to vertical rods topped with high-visibility marker spheres. When the operator rotates the manual hand crank, the rotary motion converts cleanly into independent progressive vertical or horizontal displacements.

This physical wave apparatus translates complex mathematical wave equations into clear, viewable motion patterns. Students can track a single colored sphere to witness individual particle behavior, making it easy to contrast with the overarching motion of the wave crests and troughs. This highly effective tool is a critical component within universal physics lab equipment catalogs worldwide.

Key Features

• Dual Wave Visualizations: Symmetrically displays both progressive transverse wave shapes and longitudinal compressions through one integrated crank mechanism.
• High-Visibility Marker Spheres: Outfitted with brightly colored contrast balls that make tracking wave patterns easy from the back of the classroom.
• Precision Crankshaft Action: Features a heavy-duty, smoothly aligned crankshaft that eliminates mechanical hitching or binding during tracking.
• Rugged Support Frame: Built with a rigid base and side panels to eliminate physical rocking and ensure stable benchtop operation.
• Purely Mechanical System: Runs completely battery-free and requires no electrical connection, providing a durable solution for any learning space.
• Curriculum-Compatible Design: Integrates perfectly with standard textbook modules explaining kinetic theory, frequency, and acoustic principles.

Technical Specifications

What's Included in the Kit

• 1 x Fully assembled Wave Motion Powell’s Wave Demonstrator setup
• 1 x Detachable or integrated manual operating handle
• 1 x Classroom instructor guide outlining key wave experiments

Applications / Uses

• Demonstrating the key structural differences between transverse light waves and longitudinal sound waves.
• Visualizing fundamental physics parameters including amplitude, periodic time, wave nodes, and spatial wavelength
• Serving as a high-engagement mechanical illustration within comprehensive school didactic models collections.
• Providing an interactive mechanical component for customized physical science modules and student science kits.
• Illustrating phase differences between adjacent vibrating particles during advanced mechanical physics lectures.

How to Use the Wave Motion Powell’s Wave Demonstrator

1. Position the Instrument: Place the demonstrator apparatus flat on a level, clear laboratory table so all students have a clear side profile view.
2. Isolate a Test Sphere: Instruct students to select one single colored sphere along the array to observe its isolated physical path.
3. Initiate Slow Rotation: Turn the hand crank smoothly in a clockwise direction at a slow, continuous pace to watch the generation of a slow progressive wave.
4. Analyze the Waveforms: Observe the top markers to analyze classic transverse sinusoids, while simultaneously viewing the corresponding section to track longitudinal density compactions.
5. Vary the Speed: Turn the handle faster to increase the wave frequency, demonstrating how higher operational speeds shorten the physical distance between crests.

Handling Note: Always rotate the hand crank smoothly and avoid abrupt reversals or forcing the handle, which can stress the internal rod alignments.

Care & Maintenance

• Keep Rods Clean: Periodically wipe the vertical guiding tracks and rods with a soft dry cloth to remove dust and minimize sliding friction.
• Joint Lubrication: Apply a single drop of low-viscosity machine oil to the main crankshaft bearing points every six months to maintain smooth operation.
• Proper Storage: Store the unit in a dry tool locker away from direct sunlight to preserve the high-contrast finish on the marker spheres.

Why Choose Science Lab Supplies

Science Lab Supplies is an established manufacturer and global exporter of premier educational materials, vocational setups, and accurate laboratory instruments. Backed by extensive manufacturing experience, we engineer rugged didactic solutions that stand up to years of active classroom handling. Our production plants follow rigid material choice benchmarks and strict tolerance testing, ensuring uniform movement across all mechanical assemblies. We support institutional tenders, universities, and international distributors with scalable shipping networks and dependable item consistency.

Frequently Asked Questions

How does Powell's Wave Demonstrator show wave propagation?

The apparatus uses a series of eccentric cams driven by a single central crankshaft. Turning the crank moves the rods up and down or side to side in a staggered sequence, creating the visual appearance of a traveling wave.

Can it demonstrate both transverse and longitudinal wave models?

Yes, the mechanical linkages are designed to show transverse crests along the top marker rows while simultaneously displaying longitudinal density compressions and rarefactions on the lower axis points.

What materials are used to construct the apparatus?

The demonstrator frame is fabricated from a combination of high-grade steel alloys and seasoned wood, ensuring a stable baseline mass that minimizes table vibration during use.

Does this wave motion device require an external power supply?

No, this device is a completely mechanical teaching model that runs manually via an attached hand crank, making it highly reliable and completely battery-free.

How do you alter the wavelength or amplitude on this model?

The wave amplitude and structural wavelength are fixed by the pre-engineered geometry of the internal crankshaft cams, but you can easily vary the frequency and propagation speed by changing your cranking speed.
