Site Dumper
Product Code : LSK-WT-10541

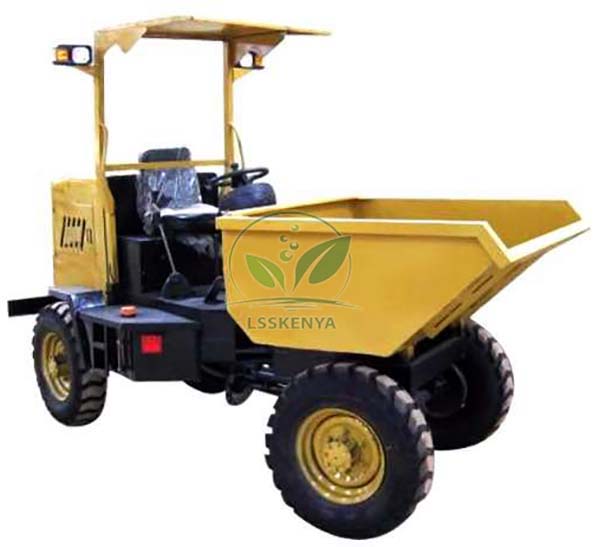

Site Dumper (SKU LSK-WT-10541) is a four-wheel-drive, articulated-frame dumper with a hydraulic tipping hopper, built to carry up to 3000 kg of sand, aggregate, concrete or spoil around a construction site. Technical colleges use it in plant-operation and construction training yards, and in diesel mechanics workshops as a real machine to service. Science Lab Supplies supplies it from Ambala, India to training institutes, colleges, contractors and distributors.
Specifications
The dumper runs on a 40 hp water-cooled diesel engine rated 30 kW at 2300 rpm, driving all four 12.5-16 wheels through a heavy-duty 5+5 gearbox. Steering is hydraulic on an articulated frame with a 4.5 m turning radius, and the 1500 litre skip tips hydraulically. It weighs 2250 kg.
| Parameter | Value |
|---|---|
| SKU | LSK-WT-10541 |
| Engine | Diesel, 40 hp, water cooled, 30 kW at 2300 rpm |
| Drive | 4 x 4 WD |
| Gearbox | Heavy duty, 5 + 5 |
| Payload capacity | 3000 kg |
| Skip capacity | 1500 litre |
| Tipping system | Hydraulic tipping hopper |
| Steering | Hydraulic |
| Chassis | Articulated frame |
| Tyres | Four wheels, 12.5-16 |
| Turning radius | 4.5 m |
| Weight | 2250 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Site Dumper
In vocational training the dumper is used to teach safe plant operation, loading and tipping on uneven ground, and routine daily checks on a diesel machine. Construction trainees also use it to move aggregate and mixed concrete between stockpile, mixer and placing point during practical site exercises.
- TVET construction plant operation modules: driving, loading, hydraulic tipping and parking a site dumper.
- ITI Mechanic Diesel and plant-mechanics courses: servicing a water-cooled diesel engine, 5 + 5 gearbox, 4 x 4 drive and hydraulic system.
- Building-construction and civil engineering site practice: moving materials between stockpile, mixer and formwork.
A loaded dumper is a heavy moving machine: trainees should drive it only under instructor supervision, within the rated payload, with walkways kept clear.
Standard Scope of Supply
The Site Dumper is supplied as a single ready-to-run machine as described above: diesel engine, 4 x 4 driveline, articulated chassis with hydraulic steering and the 1500 litre hydraulic tipping skip. Any optional accessories, spare parts or operator tools are listed separately on the quotation.
Packing, MOQ and Lead Time
Quotations can cover one dumper or several machines for a construction training yard, and each one states the packing, delivery time and price for the quantity requested. Mixers, vibrators and hand tools for the same workshop can be quoted together, making it a straightforward source of TVET workshop equipment.
Science Lab Supplies holds an Importer-Exporter Code as a registered exporter and can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Send your enquiry through the contact page or add the item to the enquiry cart; tender buyers can also use the lab tender page.
Frequently Asked Questions
How much can the Site Dumper carry?
The payload capacity is 3000 kg and the skip holds 1500 litres. The machine itself weighs 2250 kg, which matters when planning transport and ground conditions on a training site.
What engine powers the dumper?
A 40 hp water-cooled diesel engine rated 30 kW at 2300 rpm, driving all four wheels through a heavy-duty 5 + 5 gearbox, with hydraulic steering on the articulated frame.
Who supplies the Site Dumper?
Science Lab Supplies supplies it from Ambala, India, and quotes it alongside other construction and workshop tools for vocational institutes, contractors and distributors.
Is the dumper suitable for trainee operators?
Yes, under supervision. Hydraulic steering and tipping reduce effort, but trainees should first learn the 4.5 m turning radius, load limits and safe tipping before working near people or trenches.
Related Construction Site Equipment
A dumper is one part of a working concrete and masonry yard. The four items below from the Workshop Tools range cover mixing, compaction and brick production, so an institute can quote the full sequence of site practice together and receive it in one delivery.
- Concrete Mixer — drum mixer whose output the dumper carries to the pour.
- Builders Vibrator — petrol poker vibrator for compacting placed concrete.
- Block Making Machine — hydraulic press producing 1680 bricks per hour.
- Rammer — compacts ground before slabs or blocks are laid.
Browse the full Workshop Tools range or all TVET lab equipment.
Last updated: 25 September 2026
