Drilling Machine
Product Code : LSK-WWPT-10726

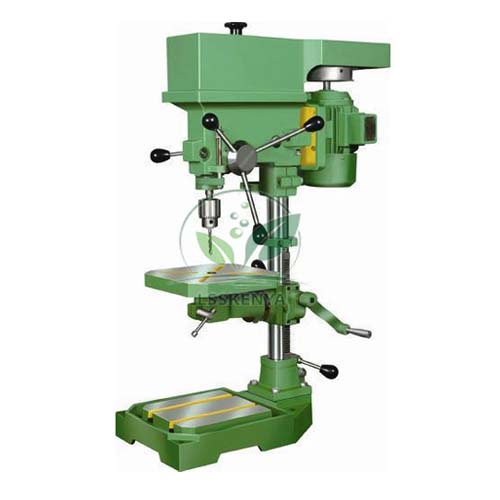

Drilling Machine (SKU LSK-WWPT-10726) is a geared column drill with 38 mm drilling capacity, eight spindle speeds in either direction and both manual and power feed. It is built for workshop drilling in steel, cast iron and timber, and is used in fitting, machinist, carpentry and general workshops at ITI, polytechnic and TVET institutes. Science Lab Supplies supplies this machine from Ambala, India to training institutes, tender contractors and distributors.
Specifications
The drill is made of mild steel and cast iron, with a proportioned column for rigidity. Its EN-steel main spindle has six slots, and the spindle sleeve runs in a honed bore on six ball and roller bearings. A window in the top cover gives access for gear changes.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10726 |
| Material | Mild steel and cast iron |
| Drilling capacity | 38 mm |
| Spindle speeds | 8, in either direction |
| Feed | Rough and smooth, manual and power |
| Spindle travel | 220 mm |
| Main spindle | EN steel, 6 slots |
| Spindle sleeve | Guided in honed bore on 6 ball and roller bearings |
| Quill spacer | Mild steel |
| Motor | 1.5–2.5 HP |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Drilling Machine
The drilling machine is a core item in fitting and machining workshops. Its 38 mm capacity, power feed and reversible speeds let trainees in ITI fitter and machinist trades, TVET mechanical and carpentry modules, and polytechnic workshop practice drill, ream and tap holes to size.
- Drilling holes up to 38 mm in mild steel and cast iron workpieces.
- Selecting spindle speed and feed for drill size and material.
- Tapping with the spindle reversed to back the tap out.
- Drilling and boring timber parts in joinery exercises.
Always clamp the work, keep loose clothing and hair clear of the spindle, and fit the chuck guard; trainees should work under an instructor.
Standard Scope of Supply
The Drilling Machine is supplied as a single unit with the features described above. Drill bits, chucks, sleeves, a machine vice and other tooling are not listed as part of the machine; state what you need and they can be added to the quotation.
Packing, MOQ and Lead Time
You can request a quotation for one drill or for a full row of machines in a fitting shop. The quotation states packing, delivery time and price for that quantity, and ITI trade tools or other workshop machines can be listed alongside it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Zambia, Rwanda, South Africa, Qatar, Sri Lanka and Vietnam. Reach us through the contact page or enquiry cart, and see the lab tender page for tender supply.
Frequently Asked Questions
What is the drilling capacity?
The machine drills holes up to 38 mm, with 220 mm of spindle travel and eight speeds, which suits most training work in steel and cast iron.
Does it have power feed?
Yes. Rough and smooth feed are available both manually and by power feed, so trainees can learn hand feeding first and then use power feed for larger holes.
Who supplies the Drilling Machine?
Science Lab Supplies supplies it from Ambala, India, to ITIs, polytechnics, TVET centres, tender contractors and distributors, together with other workshop machines.
What motor power and supply does it use?
The motor is listed as 1.5 to 2.5 HP. Tell us your mains voltage and phase in the enquiry, and the quotation will state the motor supplied.
Related Workshop Machines
These four items are used with a drilling machine in a training workshop: two for making joints that start with a drilled or bored hole, and two for cutting and finishing the parts that are drilled. They can be quoted together as one workshop package.
- Dowel Master — jig for accurate dowel holes.
- Chisel Mortise Machine — square holes for mortise joints.
- Horizontal Band Saw Machine — cuts stock to length before drilling.
- Belt Sander — deburring and finishing drilled parts.
Browse the full Wood Workshop Portable Tool range or all TVET lab equipment.
Last updated: 25 September 2026
