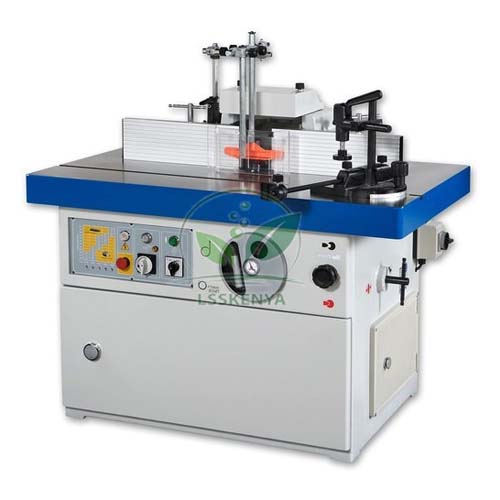

Spindle Moulder Machine
Product Code : LSK-WWPT-10717
Spindle Moulder Machine (SKU LSK-WWPT-10717) is a heavy woodworking shaper in which a vertical 30 mm spindle carries cutter blocks up to 100 mm wide to mould profiles, rebates, grooves and tenons on timber. A 1300 mm sliding table, a 45° spindle tilt and two speeds make it suitable for both straight and angled work. Joinery trainees in ITI, polytechnic and TVET workshops use it for profile cutting. Science Lab Supplies supplies it from Ambala, India to institutes, contractors and distributors.
Specifications
The machine has an 865 x 548 mm fixed table and a 1300 x 315 mm sliding table. Its 30 mm spindle runs at 5000 or 7000 rpm, tilts to 45 degrees and rises or falls through 100 mm. A 5 HP electric motor drives it, and a 100 mm port connects dust extraction. It weighs 400 kg.
| Parameter | Value |
|---|---|
| SKU | LSK-WWPT-10717 |
| Spindle diameter | 30 mm |
| Spindle speed | 5000 and 7000 rpm |
| Spindle tilt | 45° |
| Spindle up/down movement | 100 mm |
| Max moulding block width | 100 mm |
| Sliding table (L x W) | 1300 x 315 mm |
| Fixed table | 865 x 548 mm |
| Motor | Electric, 5 HP |
| Dust extraction port | 100 mm diameter |
| Machine size (L x B x H) | 1550 x 1200 x 1200 mm |
| Weight | 400 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Spindle Moulder Machine
The spindle moulder is used to shape edges and ends that other machines cannot: decorative mouldings, rebates for panels and glass, grooves, tongue-and-groove joints and short tenons on the sliding table. Trainees learn cutter setting, fence and guard adjustment and safe feeding with jigs.
- ITI Carpenter and Wood Work Technician trades: moulding and rebating exercises.
- Door and window joinery modules: profiles, rebates and tongue-and-groove joints.
- Furniture production courses: bevelled and angled work using the 45° spindle tilt.
- Vocational training equipment for advanced joinery programmes.
Spindle moulders are among the most hazardous woodworking machines. Use guards, feed jigs and power feeders where possible, never pass hands near the cutter, connect extraction, and allow only trained users to operate under close supervision.
Standard Scope of Supply
The Spindle Moulder Machine is supplied as a single machine as described above, with its sliding and fixed tables, 30 mm tilting spindle, 5 HP motor and 100 mm dust port. Cutter blocks and tooling are not listed in the specification and are quoted separately.
Packing, MOQ and Lead Time
At 400 kg the moulder is packed as a heavy machine; each quotation states packing, delivery time and price for one or more units. Planers, a tenoning machine and a dust collector can be added to the same quotation.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Ethiopia, Tanzania, Uganda, the UAE, Saudi Arabia and Oman. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What spindle speeds does it offer?
Two speeds, 5000 and 7000 rpm, on a 30 mm spindle that tilts to 45 degrees and moves 100 mm up and down.
How much floor space does it need?
The machine measures 1550 x 1200 x 1200 mm (L x B x H) and weighs 400 kg, so allow working space around the 1300 mm sliding table for long stock.
Who supplies the Spindle Moulder Machine?
Science Lab Supplies supplies it from Ambala, India, as part of its wood workshop range for technical and vocational training.
Are cutter blocks included?
Tooling is not listed in the specification. Tell us the profiles you plan to teach through the contact page and suitable cutter blocks up to 100 mm wide can be quoted.
Related Joinery Machines
Moulding comes after stock preparation and alongside joint cutting in a joinery shop. These four machines from the same range complete that sequence with the spindle moulder and can share its quotation.
- Jointer Planer — prepares straight, square stock for moulding.
- Combination Surface Planer and Thicknesser — brings stock to thickness.
- Tenoning Machine — dedicated tenon cutting for frame joints.
- Universal Dust Collector — connects to the 100 mm extraction port.
