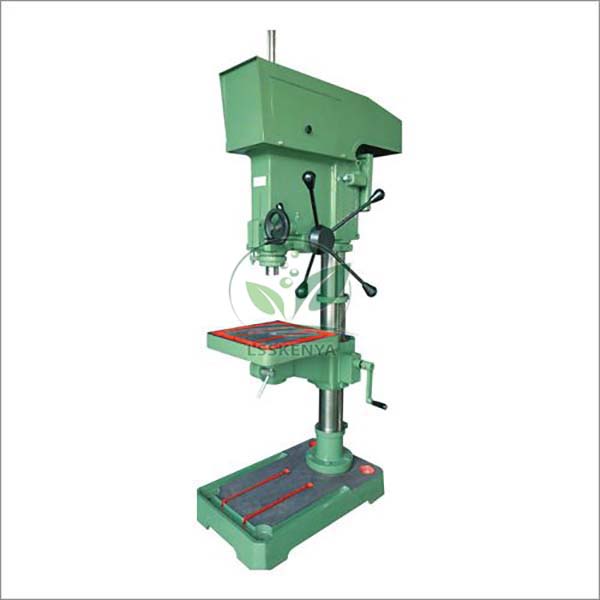

Pillar Drill Machine
Product Code : LSK-WEAWLM-10683
Pillar Drill Machine (SKU LSK-WEAWLM-10683) is a semi-automatic, column-type drilling machine for drilling, boring and tapping in steel and cast iron. It runs on a 415 V three-phase supply, drills up to 38 mm in steel and offers eight spindle speeds from 80 to 2550 rpm, with a fine auto feed. Science Lab Supplies supplies it from Ambala, India to machine shops in ITIs, polytechnics and engineering colleges, and to contractors and distributors.
Specifications
The machine has a 72 mm diameter ram with 245 mm of manual spindle travel and a fine auto feed. Machines are offered across a capacity range of 19 mm to 50 mm; the model detailed below drills 38 mm in steel and 40 mm in cast iron, bores 60 mm and taps 25 mm in steel.
| Parameter | Value |
|---|---|
| SKU | LSK-WEAWLM-10683 |
| Machine type | Semi-automatic pillar drill |
| Capacity range offered | 19 mm to 50 mm |
| Drilling in steel / cast iron | 38 mm / 40 mm |
| Boring in steel | 60 mm |
| Tapping in steel | 25 mm |
| Spindle speeds | 8, from 80 to 2550 rpm |
| Spindle travel (manual) | 245 mm |
| Auto feed | Fine feed |
| Ram diameter | 72 mm |
| Power supply / consumption | 415 V, 3 phase / 2 HP |
| Motor speed | 1440 rpm |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Pillar Drill Machine
The pillar drill is used for accurate drilling, boring and tapping of workpieces too large or too heavy for a bench drill. In training it teaches speed and feed selection, work holding, centre drilling and tapping, and it serves the fitting and fabrication jobs that follow welding and cutting.
- ITI Fitter, Machinist and Welder trades: drilling and tapping exercises.
- Diploma and B.Tech machine-shop practice: speed, feed and cutting-parameter studies.
- TVET fabrication modules: drilling brackets, flanges and plates.
Standard Scope of Supply
The Pillar Drill Machine is supplied as a single unit in the capacity you select, as described above. Drill chucks, drill bits, vices and other optional accessories are not listed in the specification and, where needed, appear as separate lines on the quotation.
Packing, MOQ and Lead Time
Ask for a quotation for one pillar drill or for a full machine shop. Each quotation states packing, delivery time and price for the quantity and capacity chosen, and other workshop tools for technical training institutes can be combined with the drill in the same enquiry.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in Rwanda, South Africa, Qatar, Sri Lanka, Vietnam and Malaysia. Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What is the drilling capacity?
The model detailed here drills 38 mm in steel and 40 mm in cast iron, bores 60 mm and taps 25 mm in steel. Machines are offered from 19 mm to 50 mm capacity.
What power supply does it need?
It needs a 415 V three-phase supply, with a listed power consumption of 2 HP. Installation should be done by a qualified electrician.
Who supplies the Pillar Drill Machine?
Science Lab Supplies supplies it from Ambala, India with its grinders, shears and other workshop machines for training institutes and colleges.
What safety precautions apply?
Clamp the work, never hold it by hand, keep guards in place, tie back loose clothing and wear eye protection. Trainees should operate the drill only under supervision.
Related Workshop Machines
A machine shop built around a pillar drill normally adds sawing, punching and grinding capacity. These four machines are common companions of the drill in ITI and polytechnic workshops and can be quoted together with it.
- Power Hacksaw Machine — cuts stock before drilling.
- Hydraulic Steel Worker — punches holes in flats and angles.
- High Precision Surface Grinder — finishes flat faces to size.
- Universal Tool and Cutter Grinder — resharpens cutting tools.
