High Precision Surface Grinder
Product Code : LSK-WEAWLM-10684

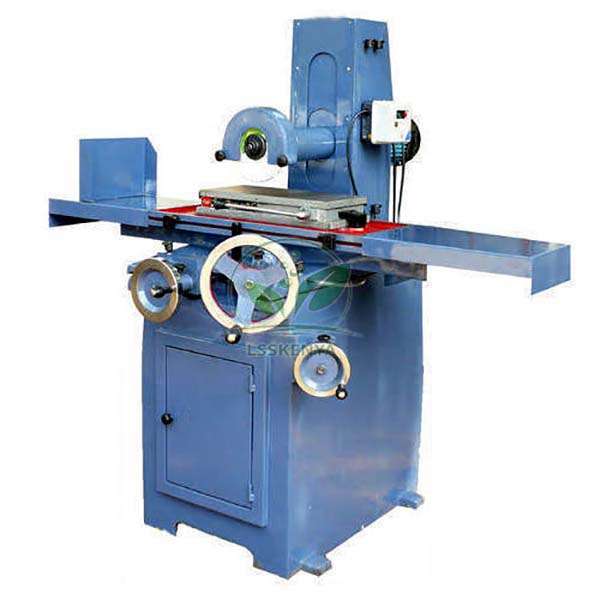

High Precision Surface Grinder (SKU LSK-WEAWLM-10684) is a machine tool that grinds flat surfaces to close size and fine finish with a rotating abrasive wheel passing over work held on a reciprocating table. It has a 225 x 450 mm working surface, a 200 mm wheel and a 0.01 mm vertical feed graduation, and it serves the electronic, automobile and electrical industries. Science Lab Supplies supplies it from Ambala, India to machine-shop training centres, colleges, contractors and distributors.
Specifications
This grinder weighs about 800 kg and takes work up to 275 mm high between table and wheel. The wheel spindle runs at 2800 rpm from a recommended 0.75 kW (1 hp) motor, and handwheel graduations of 0.01 mm vertical and 0.05 mm cross feed allow fine size control.
| Parameter | Value |
|---|---|
| SKU | LSK-WEAWLM-10684 |
| Working surface of table | 225 x 450 mm |
| Max. height, table to wheel | 275 mm |
| Grinding wheel (dia x width x bore) | 200 x 13 x 31.75 mm |
| Spindle speed | 2800 rpm |
| Vertical feed graduation | 0.01 mm |
| Cross feed graduation | 0.05 mm |
| Recommended motor | 0.75 kW (1 hp) |
| Machine weight | Approx. 800 kg |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the High Precision Surface Grinder
The surface grinder is used to finish flat and parallel faces on hardened or machined parts to tight dimensions, such as gauge blocks, die plates and machine components. In training it teaches wheel mounting and dressing, magnetic and fixture work holding, and taking fine cuts using the feed graduations.
- ITI Machinist Grinder and Machinist trades: surface grinding to size and flatness.
- Diploma and B.Tech production engineering labs: grinding process and surface finish studies.
- Tool-room training: finishing die and fixture plates.
Grinding wheels rotate at high speed and can shatter if damaged or mounted incorrectly: check wheels before fitting, keep the guard in place and wear eye protection.
Standard Scope of Supply
The High Precision Surface Grinder is supplied as a single machine as described above. The specification lists a recommended motor rating; the motor, work-holding chuck, spare wheels and other optional items offered with the machine are confirmed as separate lines on the quotation.
Packing, MOQ and Lead Time
Grinders of this weight are quoted per machine. Tell us the quantity and delivery location and the quotation will give the packing, delivery time and price, and any other vocational training equipment for the same machine shop can be listed on it.
As a registered exporter with an Importer-Exporter Code, Science Lab Supplies can ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Enquire via the contact page or enquiry cart; see also the lab tender page.
Frequently Asked Questions
What size of work can the grinder take?
The table working surface is 225 x 450 mm and the maximum height from table to wheel is 275 mm, which suits most training and tool-room parts.
How fine is the feed adjustment?
The vertical feed is graduated in 0.01 mm steps and the cross feed in 0.05 mm steps, allowing fine size control when finishing parts.
Who supplies the High Precision Surface Grinder?
Science Lab Supplies supplies it from Ambala, India along with tool and cutter grinders, pillar drills and other workshop machines.
What foundation does it need?
At about 800 kg the machine needs a level, solid floor. Ask through the contact page for the foundation and installation details of the model quoted.
