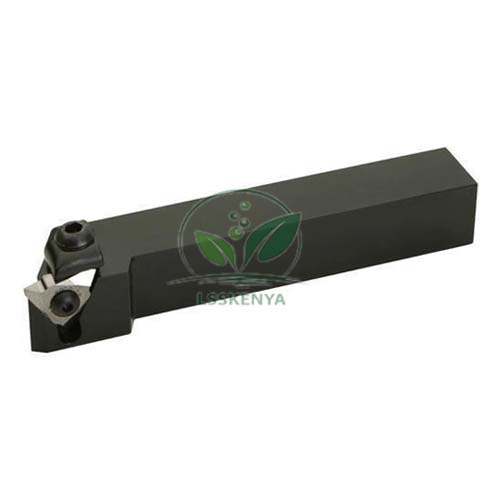

Threading Tool Holder
Product Code : LSK-MMTM-10602
Threading Tool Holder (SKU LSK-MMTM-10602) is a lathe tool holder that clamps an indexable carbide insert for cutting external screw threads. It is used in turning and machining workshops of ITI centres, polytechnics, engineering colleges and TVET institutes, where trainees learn single-point screw cutting on a centre lathe. Science Lab Supplies ships it from Ambala, India to training institutes, colleges, tender contractors and distributors as part of its range of vocational training equipment.
Specifications
The holder measures 3-15/16 inches (about 100 mm) long including the insert, and the insert position is fully adjustable. A clamp-lock or pin-lock assembly allows the carbide insert to be rotated or replaced quickly with positive locking, and the offset shank carries a 10-degree end cutting edge angle with neutral rake.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10602 |
| Overall length | 3-15/16 in (approx. 100 mm) including insert |
| Cutting insert | Carbide, fully adjustable |
| Insert locking | Clamp lock or pin lock |
| Shank | Offset, 10-degree end cutting edge angle, neutral rake |
| Application | External threading |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Threading Tool Holder
The holder is used to teach and practise external thread cutting on a centre lathe: setting the tool square to the work, engaging the lead screw and taking repeated passes to form a thread. It suits turner and machinist training, mechanical diploma workshops and TVET machining modules.
- ITI Turner and Machinist trades: screw-cutting exercises on bolts, studs and threaded shafts.
- Diploma and B.Tech workshop practice: demonstrating insert tooling and thread cutting.
- TVET machining modules: producing and checking external threads to drawing.
Standard Scope of Supply
The Threading Tool Holder is supplied as a single unit as described above, with its carbide insert and locking assembly. Spare inserts, the lathe itself and thread-checking gauges are separate items; any optional accessories you need can be listed on the same quotation.
Packing, MOQ and Lead Time
Quotations can be prepared for one holder or for enough holders to equip every lathe in a workshop. Each quotation lists packing, delivery time and price for the quantity requested, and other ITI trade tools such as parting or knurling holders can be added to it.
Holding an Importer-Exporter Code as a registered exporter, Science Lab Supplies is able to ship to buyers in Egypt, Iraq, Nigeria, Kenya, Ghana and Ethiopia. To start an enquiry, write to us through the contact page, collect items in the enquiry cart, or check the lab tender page for tender supply.
Frequently Asked Questions
What is a threading tool holder used for?
It holds a carbide threading insert on the lathe tool post so that trainees can cut external screw threads. The insert locks positively and can be rotated or replaced quickly when an edge wears.
Who supplies the Threading Tool Holder?
Science Lab Supplies, based in Ambala, India, supplies this holder to ITI centres, polytechnics, colleges and TVET institutes, as well as to contractors handling workshop tenders and to distributors.
Can it be quoted together with a full lathe tooling set?
Yes. Send the number of lathes and the tool holders you need through the contact page, and one item-wise quotation can cover threading, parting, knurling and boring tools together.
Related Lathe Tooling
These four items complete a lathe tooling and thread-checking kit around the threading holder. They cover parting and knurling, the other common turning operations, and the gauges trainees use to check thread form and pitch, so a workshop can quote its whole turning bench in one enquiry.
- Parting Tool Holder — for cutting off and grooving work on the lathe.
- Knurling Tool Holder — forms grip patterns on handles and knobs.
- Thread Gauge — checks the pitch of the threads being cut.
- Center Gauge — used when grinding and setting screw-cutting tools.
