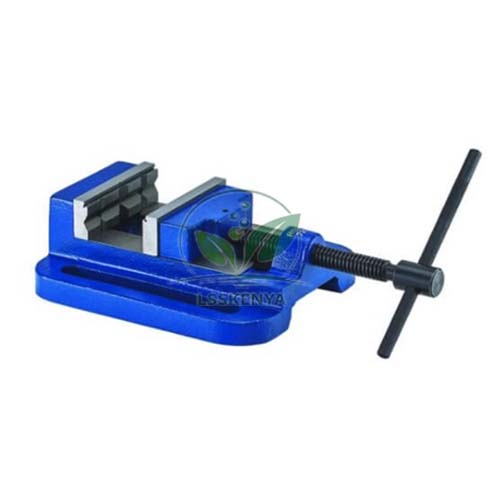

Drilling Machine Vice
Product Code : LSK-MMTM-10612
Drilling Machine Vice (SKU LSK-MMTM-10612), also called a drill press vice, clamps work securely on the table of a drilling machine for drilling, reaming and tapping. It is a basic workholding item in fitting, machining and general engineering workshops at ITI centres, polytechnics, engineering colleges and TVET institutes. Buyers can source it from Science Lab Supplies in Ambala, India, which supplies training institutes, tender contractors and distributors.
Specifications
The vice has a close-grained cast iron body and a continuous screw that gives a powerful grip, and the sliding jaw does not lift as it tightens. The moving jaw is plain; the fixed jaw carries one vertical and one horizontal 90-degree V-groove for round work. Two patterns are listed, in enamelled opaline green or hammer-tone metallic blue.
| Parameter | Value |
|---|---|
| SKU | LSK-MMTM-10612 |
| Body | Close-grained C.I. (cast iron) |
| Heavy duty drill vice sizes | 3 in, 4 in, 6 in |
| Drill machine vice sizes | 3 in, 4 in, 5 in, 6 in, 8 in; ample jaw depth; machined slide face for vertical use |
| Jaws | Moving jaw plain; fixed jaw with one vertical and one horizontal 90-degree V-groove |
| Screw | Continuous screw; no lifting of the sliding jaw |
| Finish | Enamelled opaline green or hammer-tone metallic blue |
| Supplied by | Science Lab Supplies, Ambala, India |
Applications and Experiments for the Drilling Machine Vice
Trainees clamp flat and round workpieces in the vice before drilling, so the job cannot spin with the drill. It supports marking-out and drilling exercises, tapping practice and simple jig-free hole location in fitting and machining courses.
- ITI Fitter trade: drilling and tapping holes in marked-out plates and blocks.
- ITI Machinist and Turner trades: secure workholding on the drill press.
- TVET engineering modules: safe drilling practice with the job clamped, not hand-held.
- Diploma workshop practice: cross-drilling round bars using the V-grooves.
Standard Scope of Supply
The Drilling Machine Vice is supplied as a single vice in the size and pattern you order, complete with its screw and handle, as described above. Table clamping bolts and the drilling machine are separate; optional accessories are listed on the quotation.
Packing, MOQ and Lead Time
Request a price for one vice or a mixed quantity to fit every drill press in a workshop. The quotation gives packing, delivery time and price for each size, and workshop tools for technical training institutes can be combined on it.
Science Lab Supplies holds an Importer-Exporter Code and can therefore ship, as a registered exporter, to buyers in Oman, the Philippines, Nepal, Bangladesh, Zambia and Rwanda. Science Lab Supplies is registered for GST (GSTIN 06ADEPJ0574F2ZU). Sizes and quantities can be sent through the contact page or the enquiry cart; the lab tender page covers tenders.
Frequently Asked Questions
Which sizes are available?
The heavy duty drill vice comes in 3, 4 and 6 inch sizes, and the drill machine vice pattern in 3, 4, 5, 6 and 8 inch sizes with ample jaw depth.
Can the vice hold round bars?
Yes. The fixed jaw has one vertical and one horizontal 90-degree V-groove that locate round work for drilling.
Who supplies the Drilling Machine Vice?
Science Lab Supplies supplies it from Ambala, India, to ITI centres, polytechnics, TVET colleges and engineering colleges, and to tender contractors and distributors.
Can it be used on its side?
The drill machine vice pattern has a machined slide face, so it can be turned over and used vertically when a job needs it.
Related Drilling Equipment
A drill vice is fitted to a drilling machine, and angled or tapped holes call for extra workholding and checking tools. These four items complete a drilling bay for training and can be quoted alongside the vice.
- Upright Drilling Machine — pillar drill with 25 mm drilling capacity.
- Radial Drilling Machine — for larger work and heavier drilling.
- Tilting and Swiveling Vice — for holes at compound angles.
- Thread Gauge — checks tapped holes after drilling.
