Compact Optical Bench Kit
Product Code : LSK-PL-10288

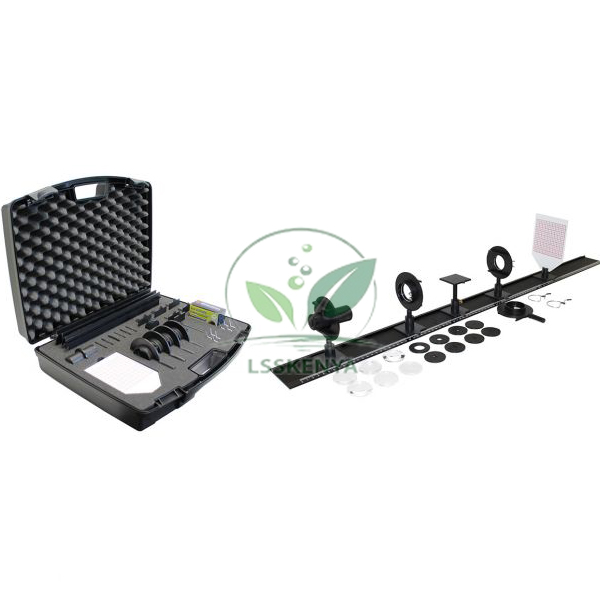

Compact Optical Bench Kit (SKU LSK-PL-10288) is a complete 1.1 m optical bench with lenses, a mirror, slits, apertures and a white LED source, packed in one suitcase. It suits lens and light experiments in secondary school and college optics labs. The kit is manufactured by Science Lab Supplies at its Plot 448 premises in the HSIIDC Industrial Area, Saha, Ambala, India, and sold without intermediaries to schools, colleges, contractors and distributors.
Specifications
Bench, riders, holders, optics and case of the suitcase kit each appear in the table. Briefly, the three-part plastic bench clips into a 1.1 m track with a cm/mm scale and rear alignment guide, pointer riders take a 10 mm rod or 2.5 mm sheet, and the holders accept 40 mm optics or 50 x 50 mm slides.
| Specification | Value |
|---|---|
| SKU | LSK-PL-10288 |
| Bench | 1.1 m plastic track in 3 clip-together parts |
| Bench scale | cm/mm, on the front |
| Alignment | Guide at the rear for the riders |
| Riders | 5, each with a pointer (1 with knurled screw) |
| Rider capacity | 10 mm diameter rod or 2.5 mm thick sheet |
| Lens/slide holders | 4 |
| Holder capacity | 40 mm diameter optic or 50 x 50 mm slide |
| Prism table | 1 |
| Lenses | 6 plastic: -100, -200, +50, +100, +150, +250 mm |
| Mirror | 1, 50 x 50 mm |
| Light source | White LED with power supply; fits the holder |
| Circular apertures | 5: 1.5, 3, 6, 10 and 20 mm |
| Slits | 1 single, 1 triple |
| Object | Figure ‘1’ |
| Screen | White, 100 x 150 mm |
| Storage | Suitcase, 320 x 430 x 115 mm |
| Weight | 1.9 kg |
| Spare parts | All parts available separately |
| Manufacturer | Science Lab Supplies, Saha, Ambala, Haryana |
| Country of origin | India |
Applications and Experiments for the Compact Optical Bench Kit
With converging and diverging lenses, a mirror, apertures and slits on one scaled track, the kit covers the core image-formation experiments of school optics: finding focal lengths, locating real images and building simple instruments. It is practical optics lab equipment for schools and colleges, and it packs away between lessons.
- Class 10 practical: focal length of a convex lens.
- Class 12 practical: u–v graph for a convex lens.
- Comparing the flat mirror with a curved glass Concave Mirror.
- Light transmission studies with a pair of Polarizing Filters.
Standard Scope of Supply
The kit contains the 1.1 m bench, five riders, four lens/slide holders, a prism table, six plastic lenses, a 50 x 50 mm mirror, a white LED with power supply, five apertures, single and triple slits, a figure ‘1’ and a 100 x 150 mm screen, all in the suitcase.
Packing, MOQ and Lead Time
You can request a quotation for one kit for a demonstration bench or a full class set, and it will set out the packing, delivery time and price for the quantity requested. Replacement lenses, riders or apertures can be listed on the same document.
Science Lab Supplies holds an Importer-Exporter Code and, as a registered exporter, is able to ship to buyers in South Africa, Qatar, Sri Lanka, Vietnam, Malaysia and Peru. The business is registered under Udyam as a manufacturing enterprise (UDYAM-HR-01-0014546) and for GST (GSTIN 06ADEPJ0574F2ZU). Kits for an optics room are priced on request through the contact page, from a list in the enquiry cart, or as part of a bid on the lab tender page.
Frequently Asked Questions
How is the kit stored?
The 1.1 m bench separates into three parts in seconds, and the whole kit packs into a 320 x 430 x 115 mm suitcase weighing 1.9 kg, so it stores safely between lessons.
Which lenses are included?
Six plastic lenses with focal lengths of -100, -200, +50, +100, +150 and +250 mm, giving both diverging and converging lenses for holders that take 40 mm optics.
Is Science Lab Supplies the manufacturer or a trader?
Every kit is put together at the company’s own factory in Saha, Ambala, India; Science Lab Supplies is therefore the manufacturer, and pricing, packing and spare parts are all arranged with the maker directly.
Can individual parts be ordered separately?
Yes. Every part is available separately, so a school can replace a lost lens, rider or aperture without buying a new kit; list the parts and they are quoted individually.
